High Frequency PU SideWall, Conveyor Welding Machine HR-25KW-1C

Model: HR-25KW-1C
Scope Of Application: High frequency connection machine for treadmill belt,conveyor belt,sidewall,profile
Features: 1. Firmly welding, be well meet with thick or thin dimension of welding material2. Single line or two lines continue welding, welding length can be ordered as special need.3. Adopting high sensitive anti-sparkle device NL 5557 to aviod damaging the mo

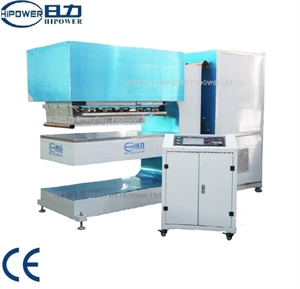

HR-25KW-1C treadmill welding machine

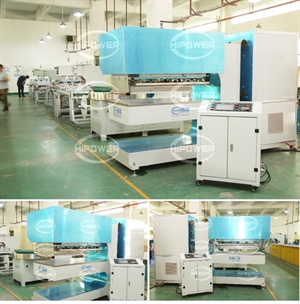

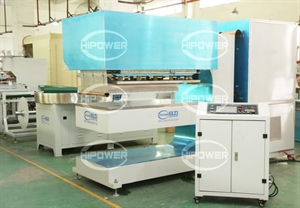

Machine On-Site Picures:





Feature of the machine:

1. Firmly welding, be well meet with thick or thin dimension of welding material.
2. Single line or two lines continue welding, welding length can be ordered as special need.
3. Adopting high sensitive anti-sparkle device NL 5557 to aviod damaging the mould.
4. European-model squareness high frequency vibration bos, more realiable and stable in output.
5. International industrial wave bands 27.12MHz, which is in line with international standard.
6. Welding time can be adjusted according to welding materials.
7. Length, width and radian of welding area can be adjusted by welding die.
8. Machine groove deep and wide, the longest welding extended to 1000mm or longer for one time.
9. Can be used as a freestanding machine for welding production or as a supplement to a larger system.
10.High frequency tarpaulin welding machine can be manufacturered and choose according to user needs.
Technical parameter:
Model HR-15KW-1C HR-25KW-1C HR-35KW-1C
Power 15000w 25000w 35000w
Voltage 220V/380V 50/60HZ
Frequency 27.12MHZ                     13.56MHZ
Input power 25KVA 35KVA 50KVA
Rectifier SILICON DIODE
Oscillation tube 8T85RB 8T25RA 8T87RB
Max pressure 1000kg 1500kg 1500kg
Gap between electrodes                     150MM
The moving distance of active horn                     150MM
Size of upper electrode 150*600MM 150*700MM 150*800MM
Size of lowwer electrode 250*750MM 250*850MM 250*950MM
Welding time 0~10S Adjustable
Net weight 1000KG 1200KG 1500KG
Overall dimension              1500*2000*1500
the manufacturer has right to modify the design and parameter without prior notice

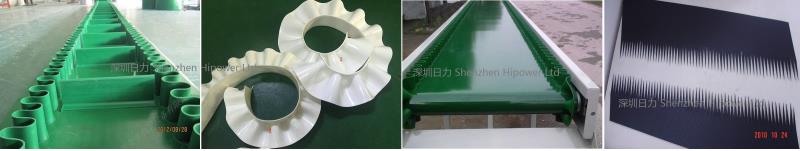

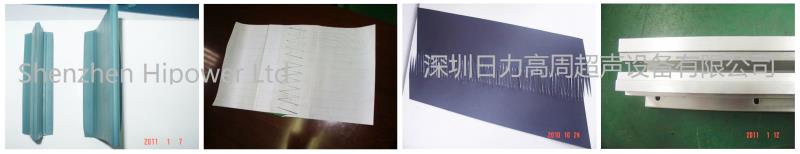

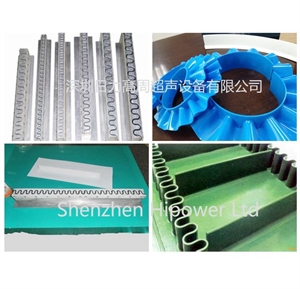

Samples view:

3D Drawing:
