HR-50KWT Anti Bedsore Medical Mattress Welding Machine

Model: HR-50KWT
Scope Of Application: applied for welding large pvc sheet, medical mattress, anti-bedsore mattress, TPU medical mattress, gel bed...Also applied for PVC inflatable products
Features: Automatic sliding table machine: Auto tuning function; Hydraulic press, CE rated machines

I. Machine Features
1. CE rated, with CE certificate
2. automatic 2 sliding welding stations
3. Pneumatic mould hanging structure available
4. Automatic sliding table, table size 1300*1500mm
5. Imported Japan Toshiba tube installed,
6.   5557 anti spark installed
Application:
applied for welding large pvc sheet, medical mattress, anti-bedsore mattress, TPU medical mattress, gel bed...

Also applied for PVC inflatable products

Technical Specifications:
Model:                                  HR-50KW
Output Power of Generator :    50KW
Anti-Spark System:                      5557
Voltage :                        380V  3Phase
Frequency:                          13.56 MHZ
Input power:                        35KVA
Rectifier:                       SILICON DIODE
Oscillation tube:                   E3116
Max pressure:                      2000kg
Operation mode:                 Peumatic
Max gap of electrodes:         150mm
Size of active horn:               150mm
Upper Electrode (W*H*L):      1500*2000mm (CAN BE ON REQUEST)
Size of Work Table (L*W):     1500*2000mm
Welding time:               1- 10S

Welded Samples

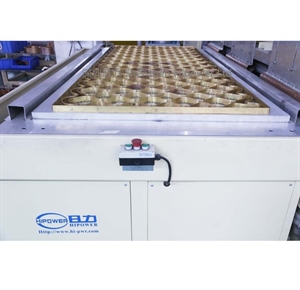

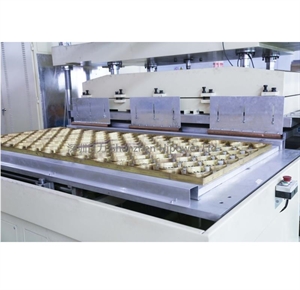

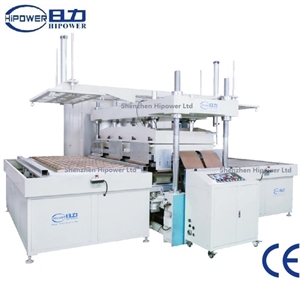

Machine pictures;
