Automobile Carpets Welding Machine

Model: HR-15KW-2QT
Scope Of Application: automatic tools recognize function, multi-phase pressue self-adjusting, multi-phase HF auto-tuning; automatic parameters saving system,CE rated machine, hydraulic 20T pressure, . for Automobile carpet which is suitable for PVC heelmat and automobile carpe
Features: 1. Apply for welding the heel-mat on the carpet 2. Suitable for LHD & RHD car.3. Customized service offered.4. Hydraulic Pressure from 2 ton -5 ton.5. PLC programmed

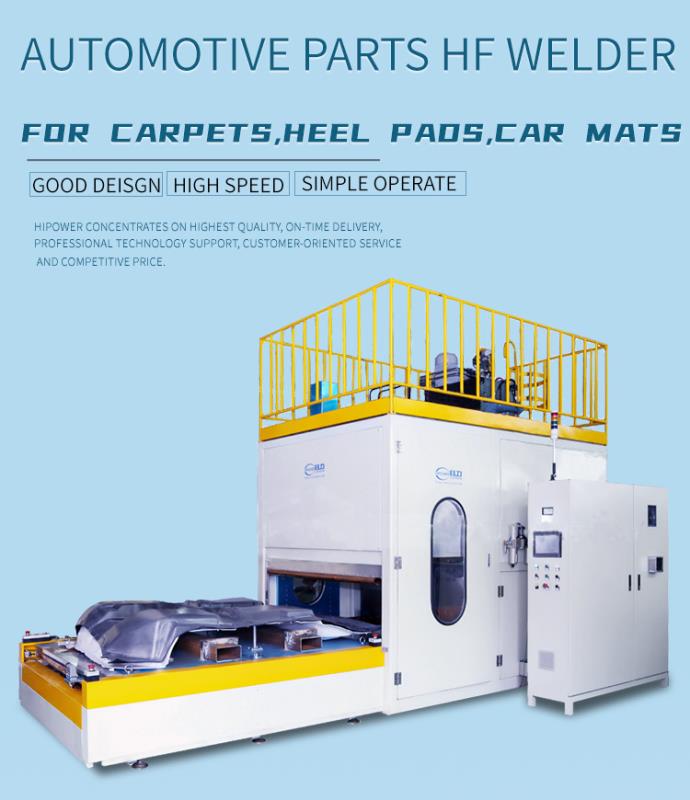

HR-15KW-2QT High Frequenc Welding Machine for automobile car

High Frequency Welding Machine for Automobile carpet which is suitable for PVC heelmat and automobile carpet .

Automatic Car Carpet Welding Machine is specially designed for producing carpets for Audi A2; the Ford MONDEO;

Mercedes SLK; OPEL ASTRA, EPSILON, SAPHIRA; Porsche 982,996; Volkswagen COLORADO, POLO, GOLF,

PASSAT NEW BEETLE Chrysler, Skoda, Seat, Peugeot, BMW, Volvo and many other automobile models

1. Apply for welding the heel-mat on the carpet
2. Suitable for LHD & RHD car.
3. Customized service offered.
4.
Hydraulic Pressure from 2 ton -5 ton.
5. PLC programmed


 Machine Features:
1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed

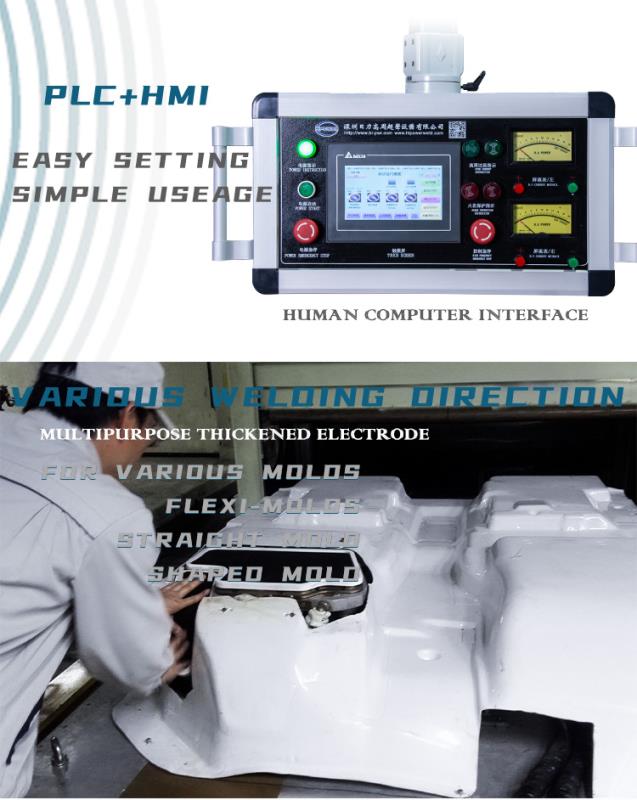

4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films

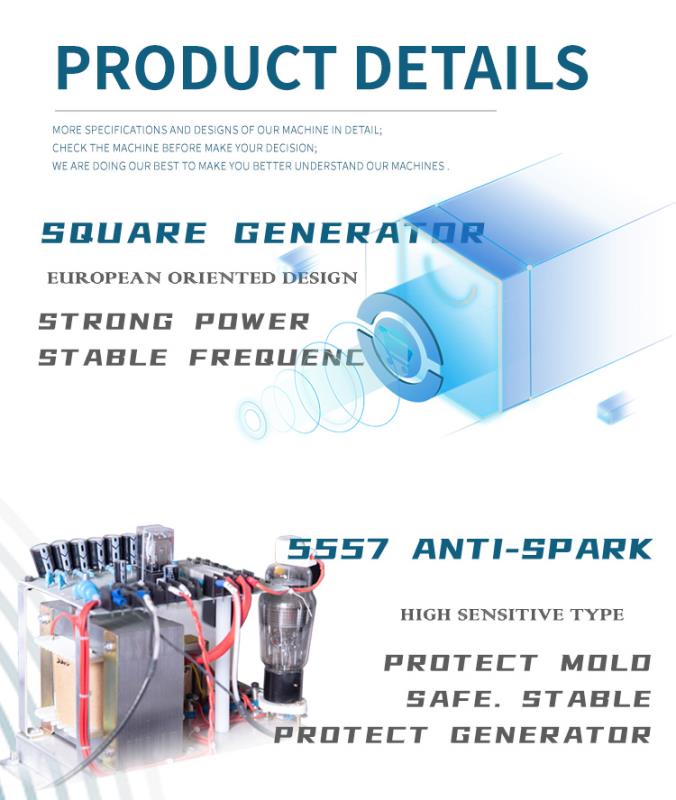

8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.\
12. High frequency welding press pneumatically operated

Optional  Features:
1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure

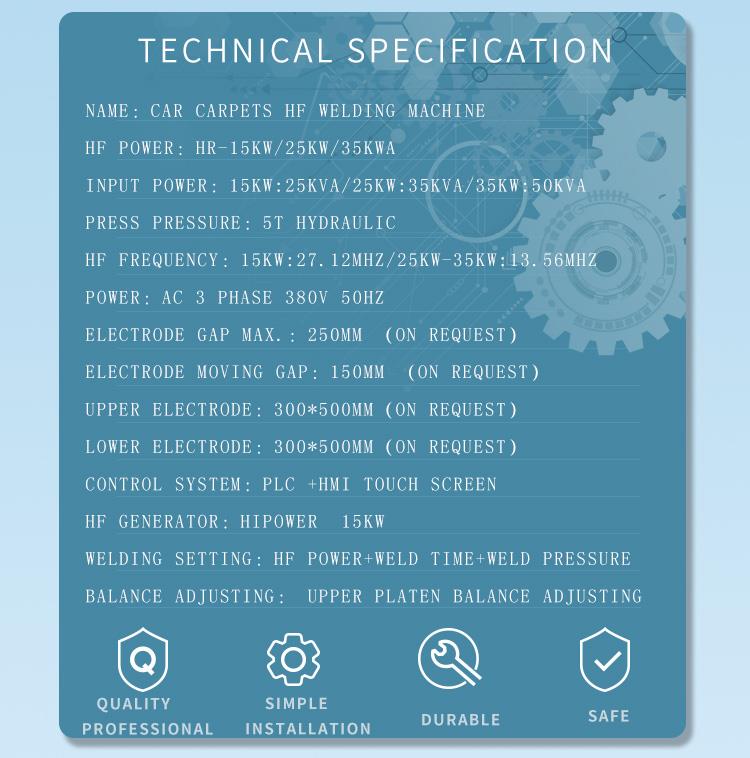

Technical parameter

Model:                                   HR-15KW-2QT
HF power:                                  15000W
Power supply:                    380V 3P 50HZ
HF frequency:                           27.12MHz
Input power:                              25KVA
Rectifier:                               SILICON DIODE
Electron tube:                           8T85RB
Max pressure:                     2000KG (Hydraulic)
The gap of electrod:                150MM
The size of active horn:          150MM
The size of upper mold:       550*400MM
The size of lower mold:        600*500MM

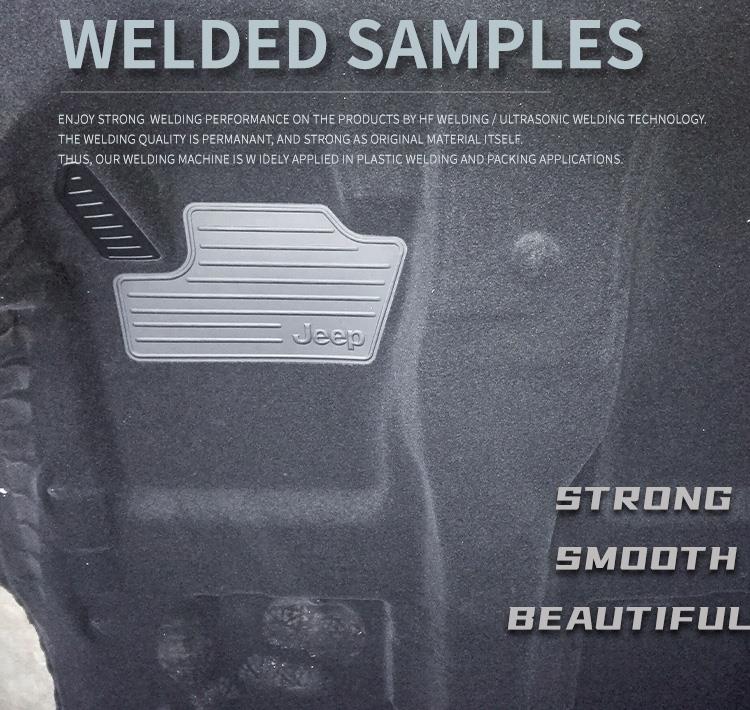

Sample view:

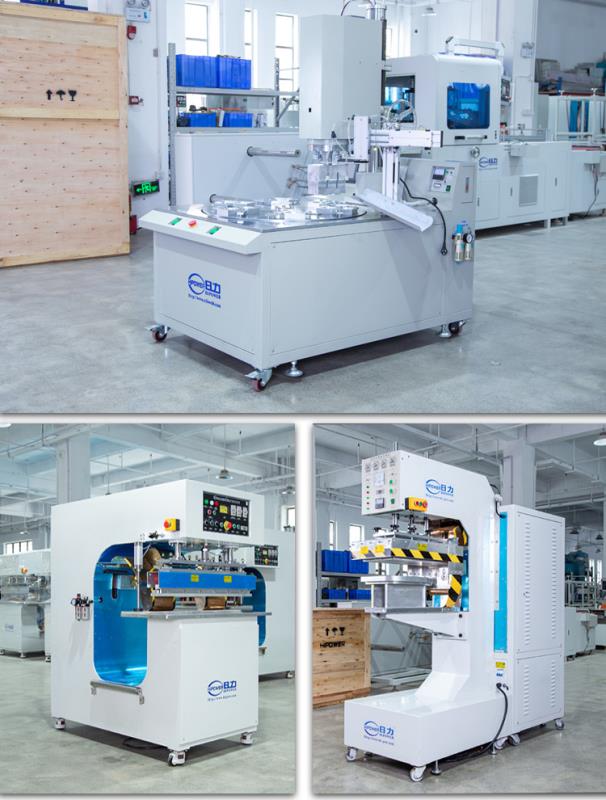

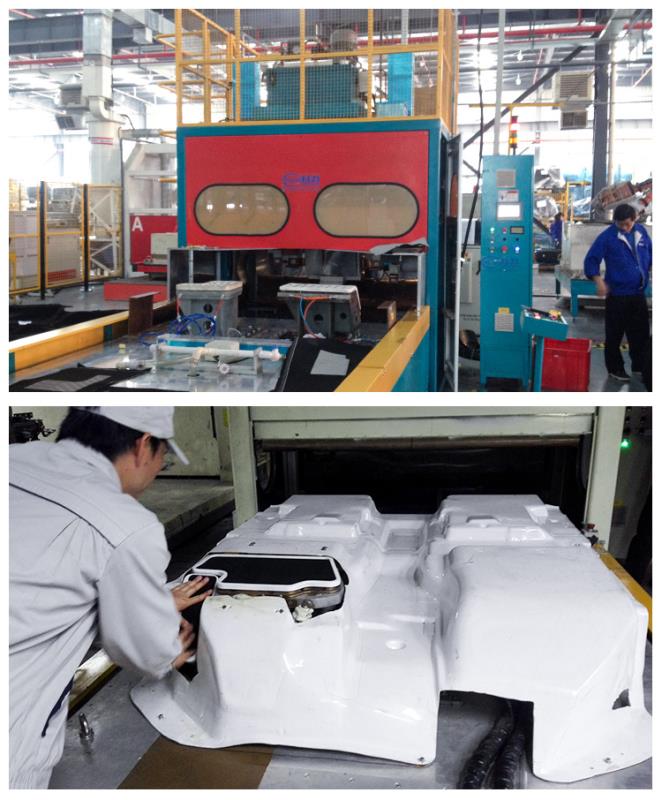

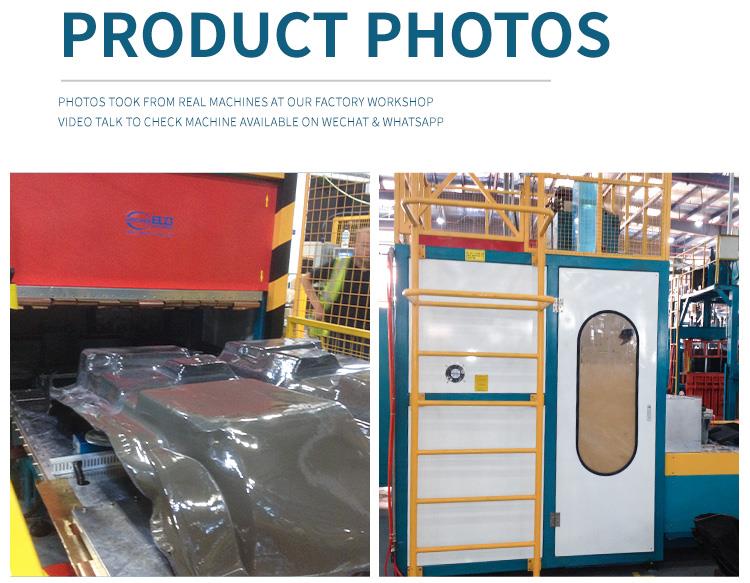

Machine Pictures:



Drawing:

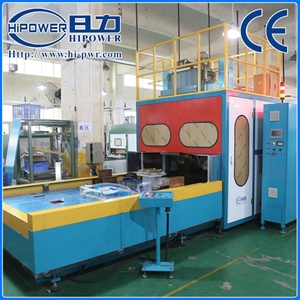

Automobile carpet welding machines

Sample view:






Machine Pictures:







Drawing:

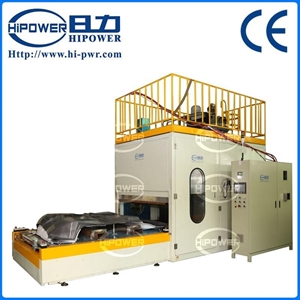

Automobile carpet welding machines
