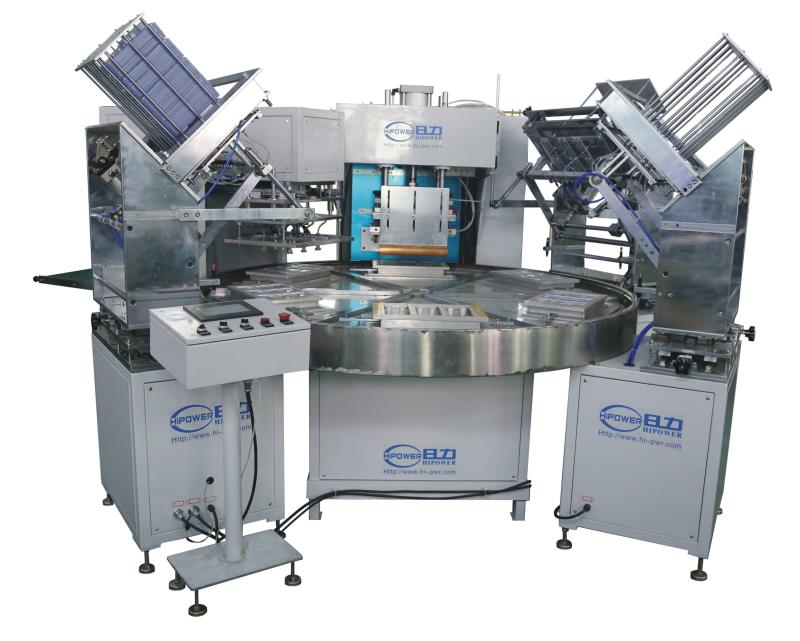

Auto High Frequency Welding and Cutting for blister packaging

Model: HR-15KW-6AC
Scope Of Application: High Frequency Welding and Cutting for blister packaging,for welding and cutting blister of PVC,PET,APET,PETG,GAG and other eco-friendly material;it is turn table, HF welding and cutting machine.
Features: 6 turnable working stations, auto robots feeding and taking up units;with auto blister forming stations,

 Auto High Frequency Welding and Cutting for blister packaging

Technical  Parameter:
MODEL                                               HR-8000W-6AC     HR-10KW-6AC    HR-12KW-6AC      HR-15KWE-6AC
H.F POWER
                                                8KW                        10KW                    12KW                          15KW
SUPPLY POWER
                                                              380V 50/60HZ
FREQUENCY
                                                           27.12MHZ                                     13.56MHZ
INPUT POWER
                                         5KVA                       18KVA                   20KVA                        25KVA
RECTIFIER
                                                                        SILICON DIODE
OSCILLATOR
                                           7T69RB                    E3069                     E3130                   8T85RB
MAX PRESSURE
                                      500kg                        500kg                     800kg                   800kg
THE GAP OF ELECTORDE
                                            200mm
THE SIZE OF ACTIVE HORN
                                        150mm
THE SIZE OF UP MOULD
                  300*400mm             300*400mm            350*450mm         400*500mm
THE SIZE OF DOWN MOULD
           350*450mm             350*450mm            400*500mm          400*500mm

Specification
1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
12. High frequency welding press pneumatically operated

Optional  Features:
1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure

Blister packaging machine

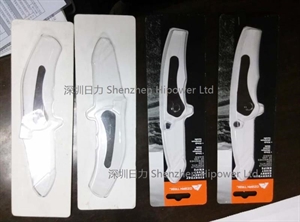

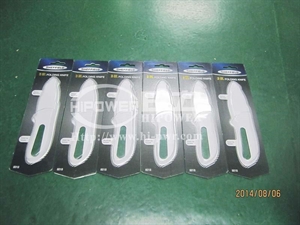

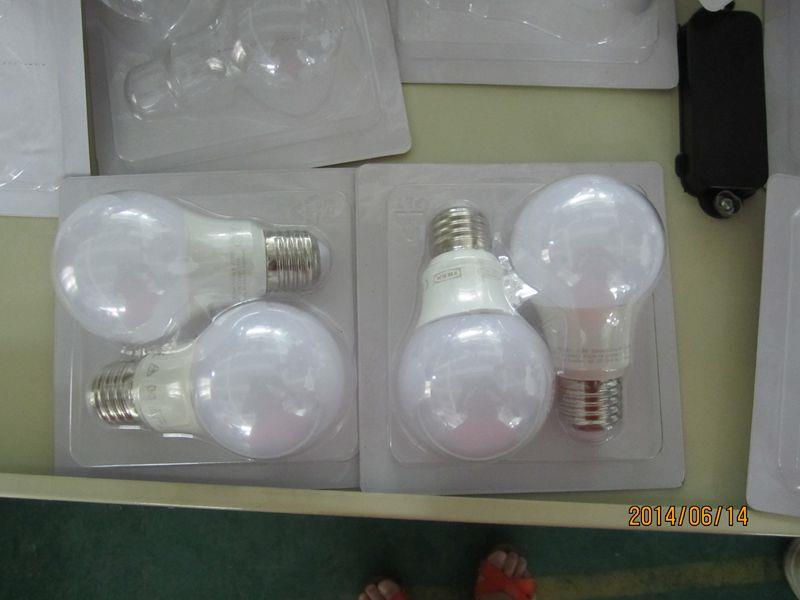

 Sample view:

welded samplesAutomatic blister packing machine

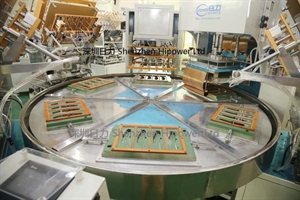

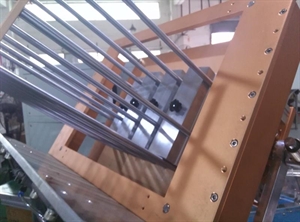

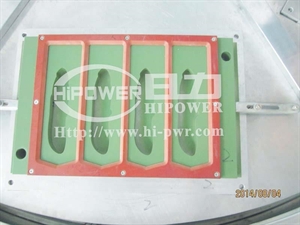

Machine on-site pictures:





Machine drawings
