Product Display > High Frequency Welding Machine > Automatic Blister Packaging Machine

Auto High Frequency Blister Packaging Machine

Model: HR-15KW-6AC
Scope Of Application: Welding and Cutting for blister packaging,for welding and cutting blister of PVC,PET,APET,PETG,GAG and other eco-friendly material;it is turn table, HF welding and cutting machine.
Features: 6 turnable working stations, auto robots feeding and taking up units;with auto blister forming stations,

Auto High Frequency Blister Packaging Machine

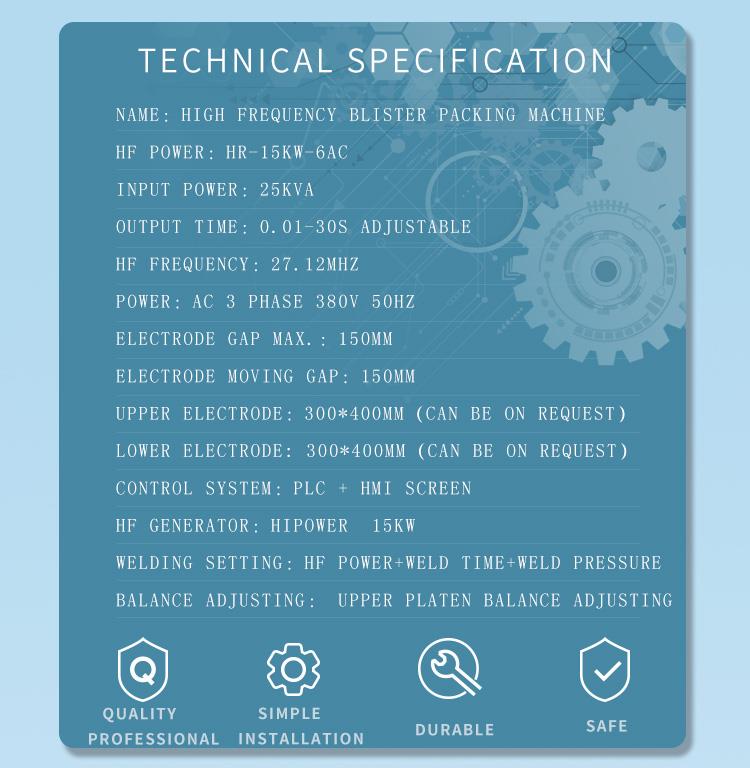

Technical  Parameter:
MODEL:                                           HR-8000W-6AC     HR-10KW-6AC    HR-12KW-6AC      HR-15KWE-6AC
H.F POWER:                                            8KW                10KW                12KW                      15KW
SUPPLY POWER:                                             380V 50/60HZ
FREQUENCY:                                       27.12MHZ                      13.56MHZ
INPUT POWER:                                    5KVA                   18KVA                  20KVA                  25KVA
RECTIFIER:                                                    SILICON DIODE
OSCILLATOR:                                      7T69RB                E3069                  E3130                    8T85RB
MAX PRESSURE:                                 500kg                    500kg                  800kg                    800kg
THE GAP OF ELECTORDE:                                         200mm
THE SIZE OF ACTIVE HORN:                                     150mm
THE SIZE OF UP MOULD:                   300*400mm             300*400mm       350*450mm         400*500mm
THE SIZE OF DOWN MOULD:              350*450mm             350*450mm       400*500mm         400*500mm

 Specification :

1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed

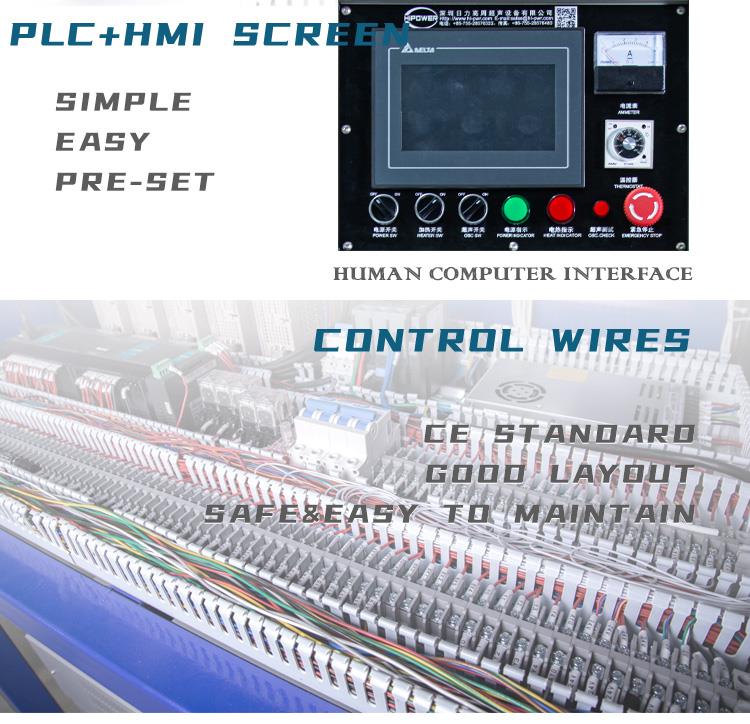

4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films

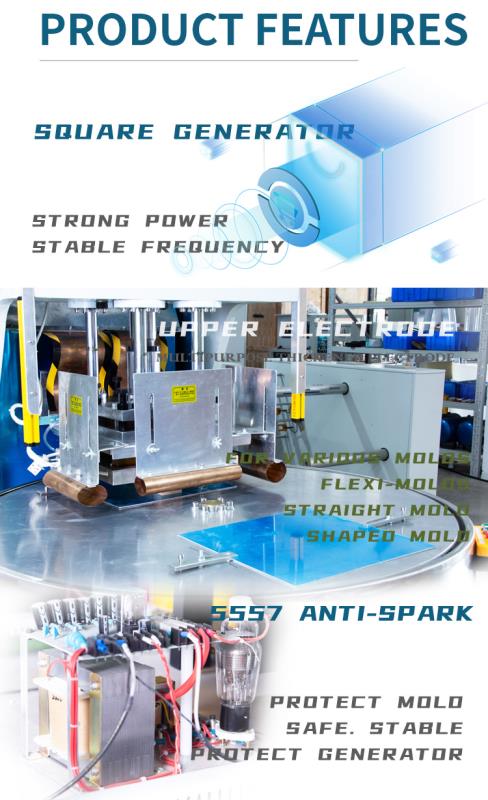

8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.\
12. High frequency welding press pneumatically operated

Optional  Features:
1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure

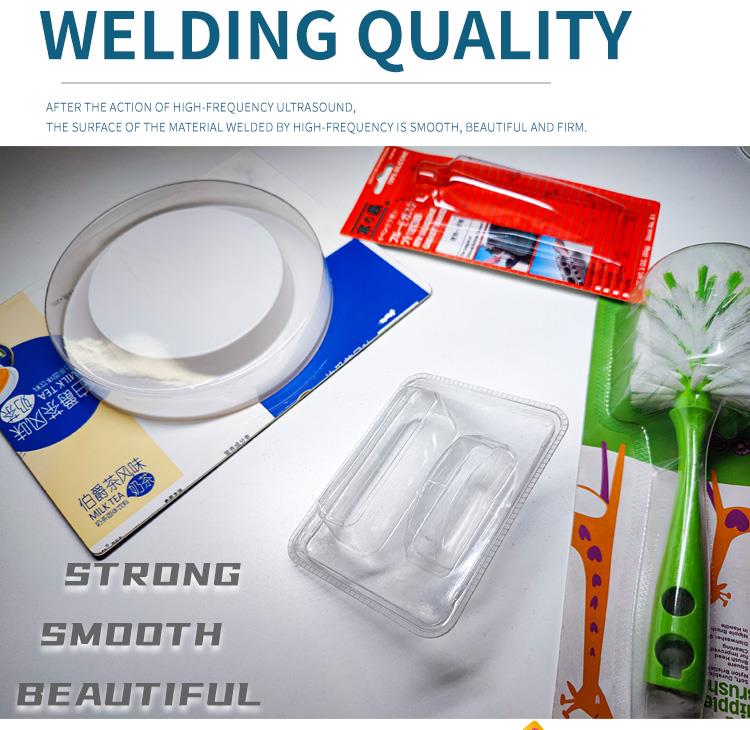

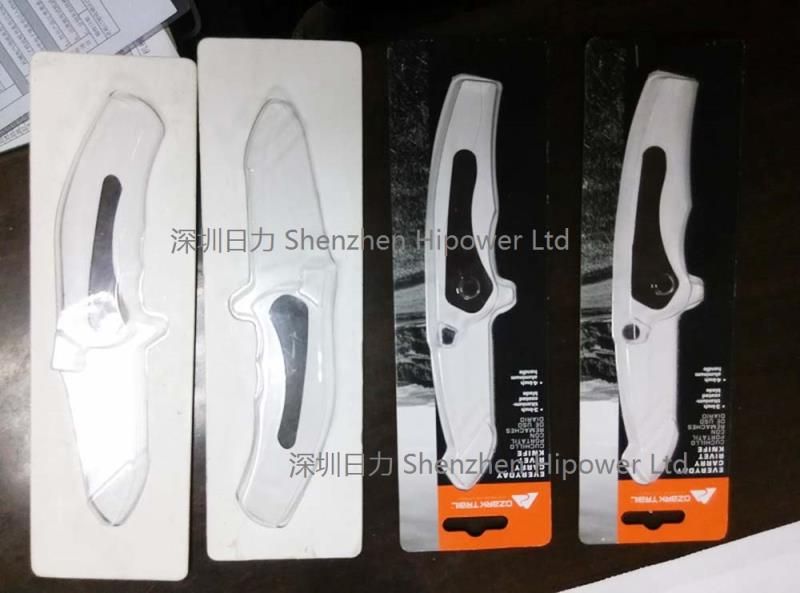

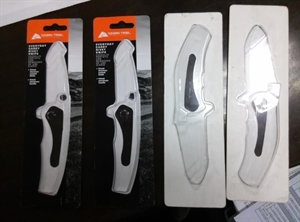

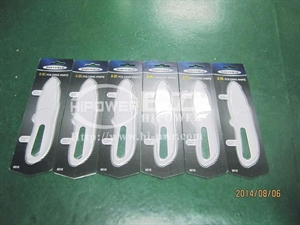

Sample view:

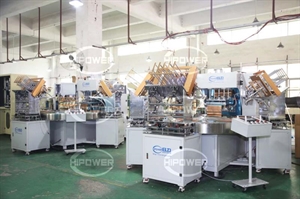

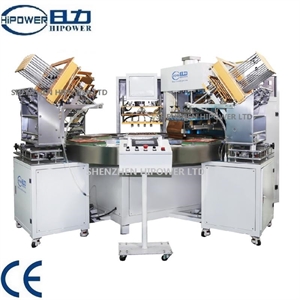

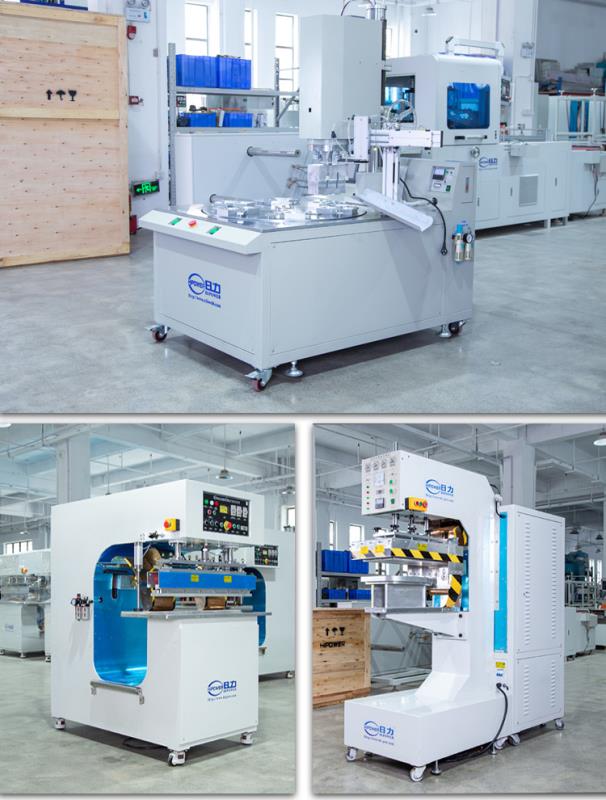

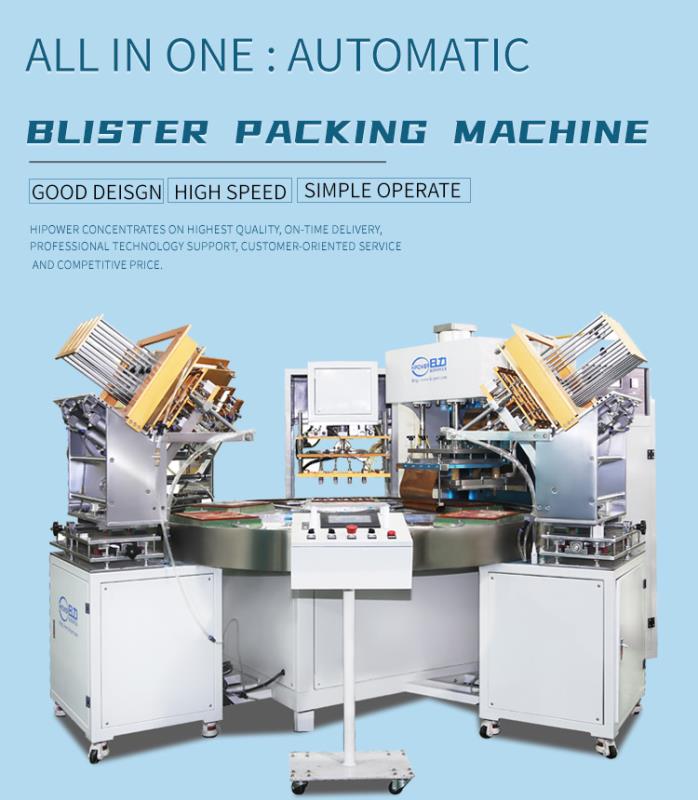

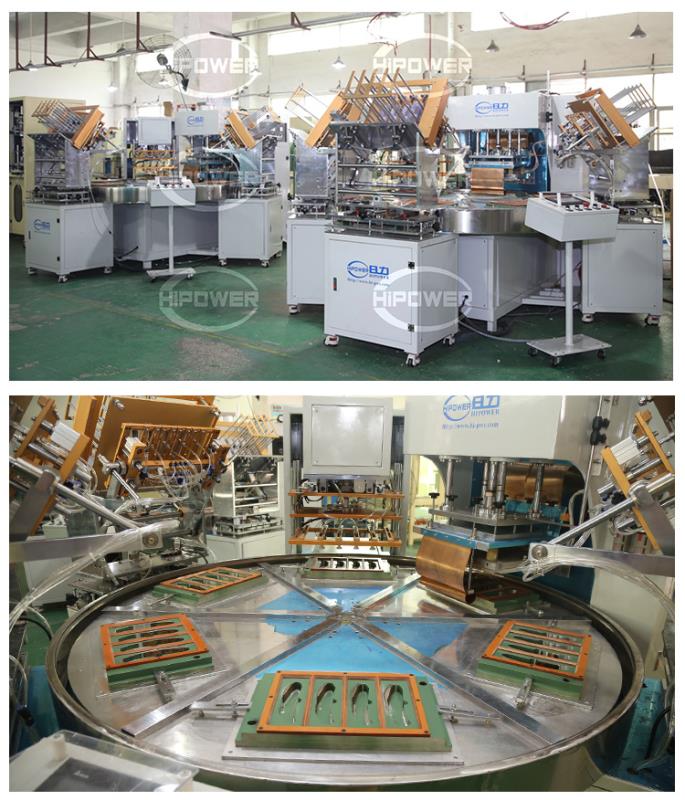

Machine Pictures:

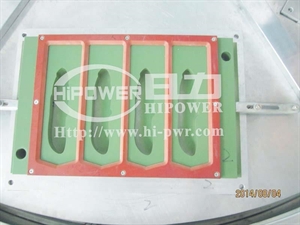

Machine Drawings:
