Printing cylinder welding and curling machine

Model: HY-2615H30
Scope Of Application: Two-in-One machine,auto forming & curling machine,PLC & Servo motor control,Robot feeding & Picking up products; for cylinders made of PVC, APET, PETG and other transparent plastic materials; Making ideal cylinders for packaging candy, gift, toy, statione
Features: Specially for printing cylinder boxes

Printing cylinder welding and curling machine

Application of

Mainly applied for automatic cylinder edge curling for materials like PVC, APET, PETG, PP and other plastic; also known as plastic cylinder automatic curling machine, plastic cylinder automatic crimping machines, automatic paper cylinder curling machine, paper materials cylinder automatic crimping machines, automatic paper tube or cylinder curling machine, plastic cylinder crimping machines.

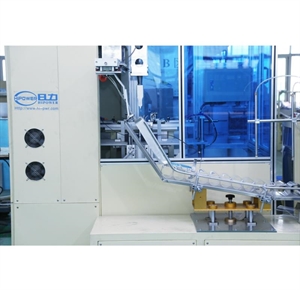

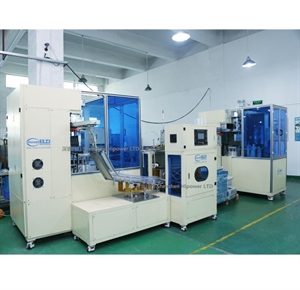

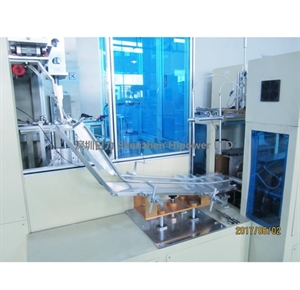

Machine Pictures:


Technique Specification

Model              HY-2615H30
Material              PVC, PET, PP, PETG ,APET
Power              4500W
Dia.                   50-200mm
Length             100-300mm
Film thickness     0.2mm-0.5mm
Productivity        4 pcs/second  (on double side end curling)
Dimension          5500*5500*1600mm
Air pressure        0.5-0.7  MPa

Power supply       3P 5wires 380V/220V 50/60Hz

The manufacturer have the right to modify the design and parameter without prior notice

Features of
PLC man-machine interface operating system, servo motor drives; fast and accurate cylinder edge curling effect; cylinder body automatic feeding and automatic crimping; designed to meet cylinders of various measurement; Auto cylinder diameter and length adjustment available/
HIPOWER Full Automatic Cylinder forming and Edge Curling Machine with robot arm and have good performance that cylinder edge curled with exact even diameter and length; Full colsed visual studio to avoid secondary product contamination; cooperated with HIPOWER HY-200H or HY-200H1, automatic and no manual production line is realized.
Full Automatic Cylinder Edge Curling Machine adopts robotic manipulatos to feed or take materials automatically;  can meet edge curling application for cylinders with the different lengths (80-300mm), diameter (40-200mm), and material thickness (0.25-0.5mm); wonderful edge curling effect, no scratch, and exact even cylinder height, with error range: ¡À0.05mm. Can construct production line with HIPOWER HY-2615(cylinder forming machine for painted sheets) and HY-200H(Full Auto Cylinder Forming Machine)
Hipower is the company specialized in producing and designing cylinder edge curling machines.

Industrial Fields Applied

PVC cylinder packing, PP cylinder packaging, APET cylinder packaging, PETG cylinder packaging, plastic cylinder packaging, paper cylinder packaging, paper material cylinder packaging, paper tube cylinder packaging, transparent plastic cylinder packaging. Making ideal cylinders for packaging candy, gift, toy, stationery, umbrellas, packing gear, badminton, snack food and other products

Sample Pictures:

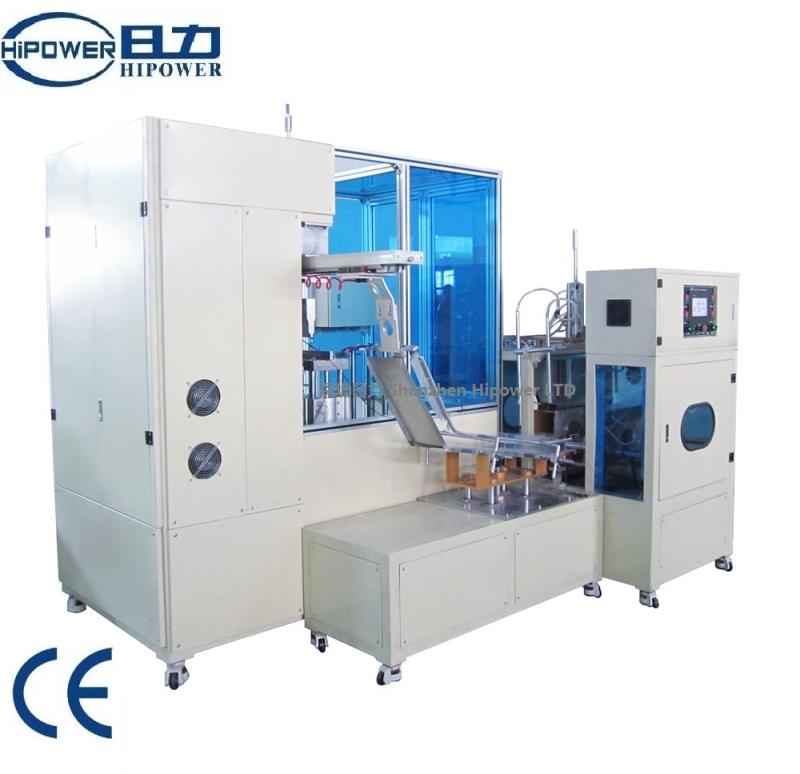

Automatic cylinder forming and edge curling machine

Automatic cylinder forming and edge curling machine


Automatic cylinder forming and edge curling machine
