Single Side HF welding and cutting machine for pocket air filter

Model:
Scope Of Application: specially designed for pocket air filter welding machine;non-woven air filter, pp air filter..
Features: CE rated machineautomatic single side slide table; one worker can operate two slide table at same timeauto tuning functionheating function at upper electrode available.welding and cutting at same time.
Single Side HF welding and cutting machine for pocket air filter

specially designed for pocket air filter welding machine;
non-woven air filter, pp air filter..

Features:
CE rated machine
automatic single side slide table;
one worker can operate two slide table at same time
auto tuning function

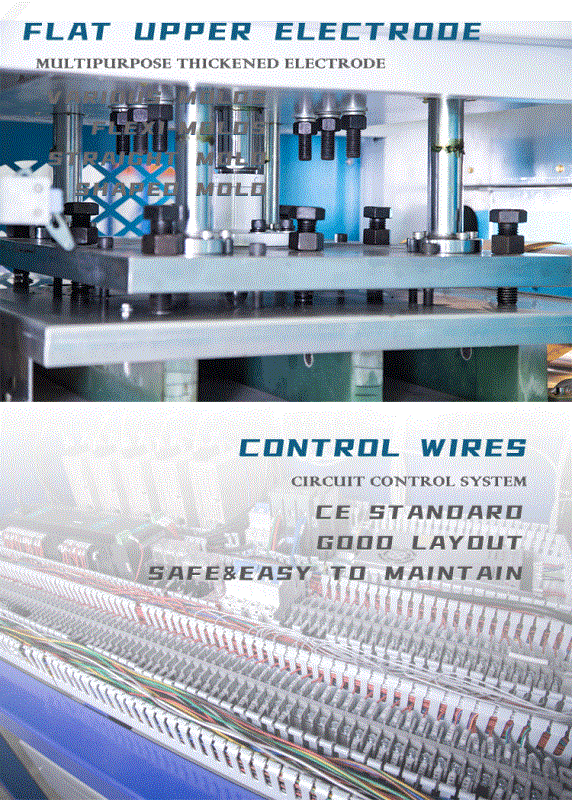

heating function at upper electrode available.
welding and cutting at same time.

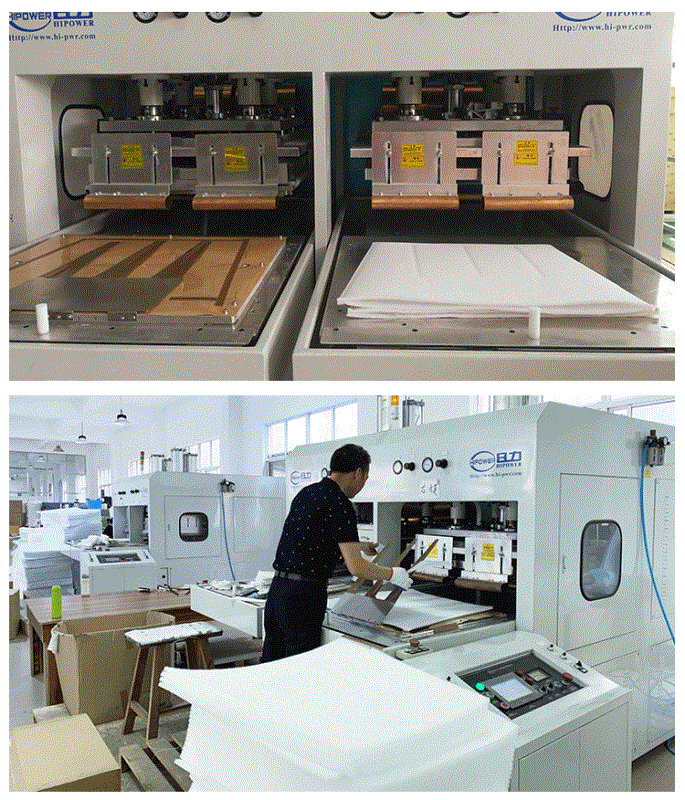

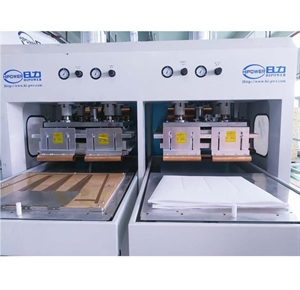

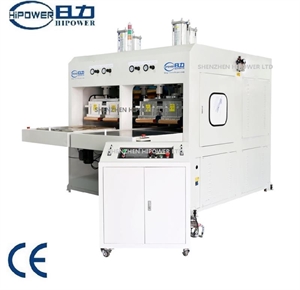

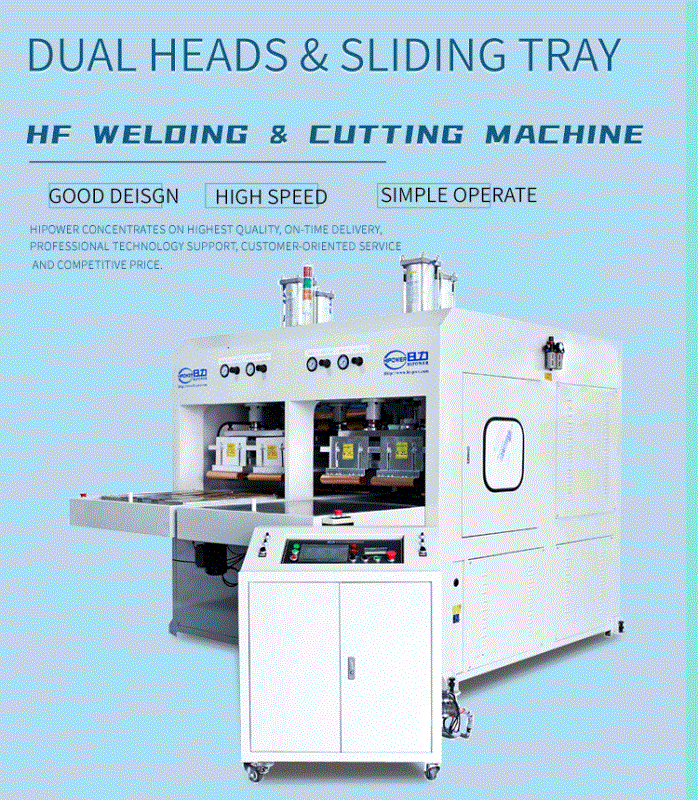

Machine photos:

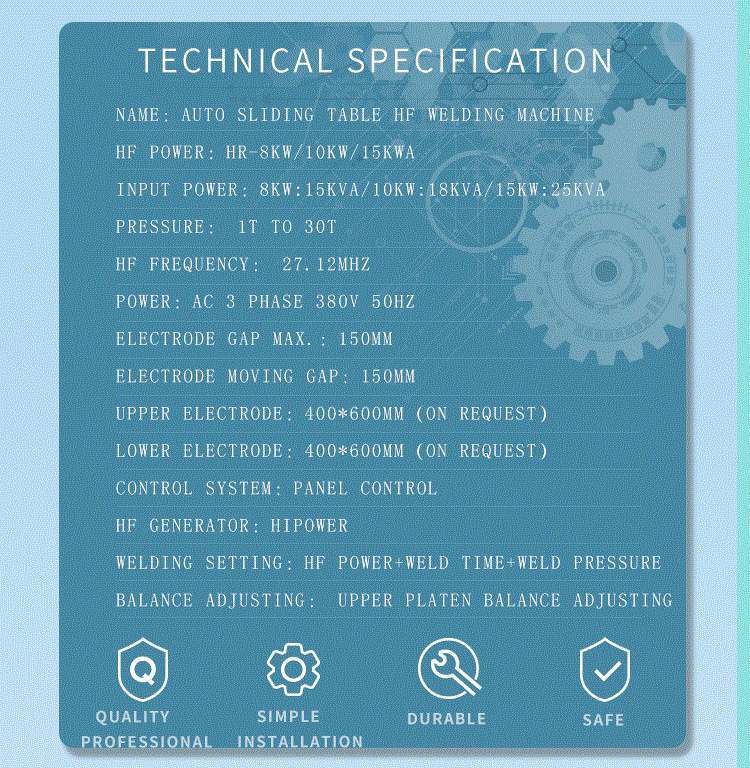

Machin Specification:

Model                                                       HR-35KW-WT
Power                                                        35KW
Power Supply                                           380V 3P 50HZ
Frequency                                                 27.12MHz
Input power                                               25KVA
Rectifier                                                     SILICON DIODE
Oscillation tube                                        8T87
Max pressure                                           2000KG (Hydraulic)
Gap of electrodes                                   150MM
Moving distance of active horn             150MM
The size of upper electrode                  800*800MM
The size of buttom electrode                  800*800MM   slide table will match automatically

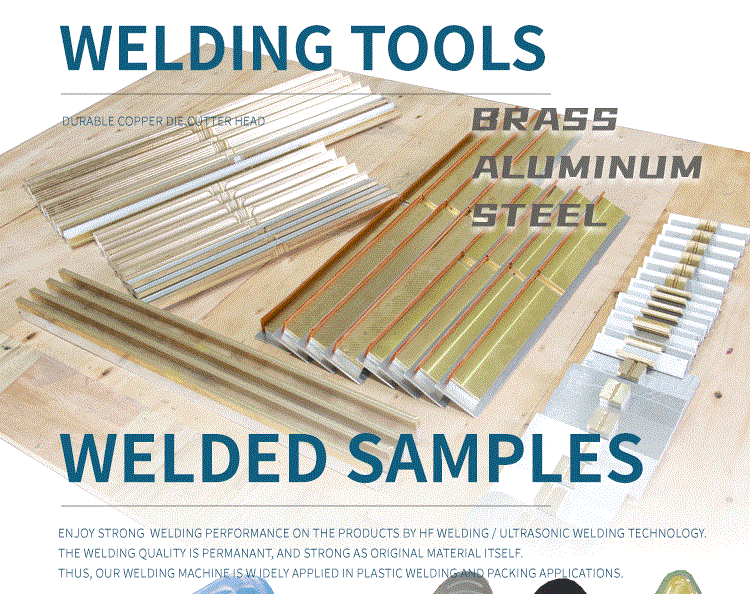

Sample view:
