HR-12KW-4AC Automatic Rotary table High Frequency Blister Packaging Machine

Model: HR-12KW-4AC
Scope Of Application: Not only for welding PVC,PET,A-PET,PET-G,GAG blister, but also for cutting waste of PVC,PET,A-PET,PET-G,GAG blister and cardboard, auto robot for picking up finished products.
Features: Auto 4 rotate working stations, with robot pick-up finished products, HF welding and cutting function in one machine, 5557 Arc-suppressor included, CE rated machine

Automatic Rotary table High Frequency Blister Packaging Machine

Automatic Rotary table High Frequency Blister Welder, with 4 stations

Application:

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages,
But it is multipurpose machine, for it can be used for industry like PU leather cover for pad,, safety vests, reflective signs, inflatable toys, cosmetics, folding packing box, automotive, medical, rehabilitation, packaging, recreation, textile and clothing, reflective garments,.etc.
The HF blister packaging welder series have HF power outputs from 5KW to 35KW 30kW for multi-cavity production loads and specialized products.

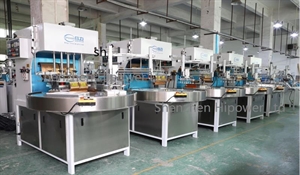

On-Site Machine Pictures;



Technical Specification:

Model:                                  HR-8KW-4AC        HR-10KW-4AC          HR-12KW-4AC              HR-15KW -4AC
H.F power:                                8000W                   10000W                     12000W                       15000W
Power Supply:                                                         380V 50/60HZ
Frequency:                                                     27.12MHZ
Input power:                              15KVA                    18KVA                       20KVA                          25KVA
Rectifier:                                                                    Silicon diode
Vibrational tube:                      7T69RB                      E3069                       E3130                         8T85RB
Max pressure:                          500kg                        500kg                       800kg                         800kg
Gap of electrode:                                                    200mm
Stroke:                                                                  175mm
Size of up electrode:              300*400mm             300*400mm                350*450mm                 400*500mm
Size of down electrode:          350*450mm             350*450mm                400*500mm                 400*500mm
welding time:                                  0---10s

Machine General Features:


1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
12. High frequency welding press pneumatically operated

Optional  Features:

1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure

Sample view:

welded samples

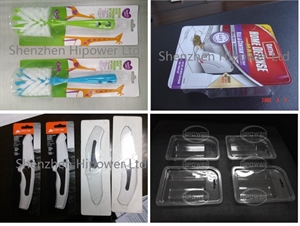

Blister packaging samples

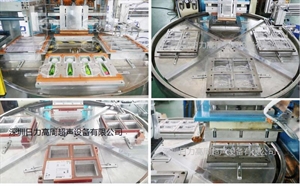

Welding Moulds
