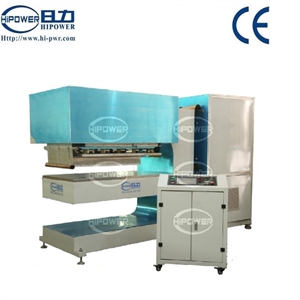

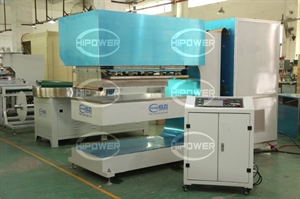

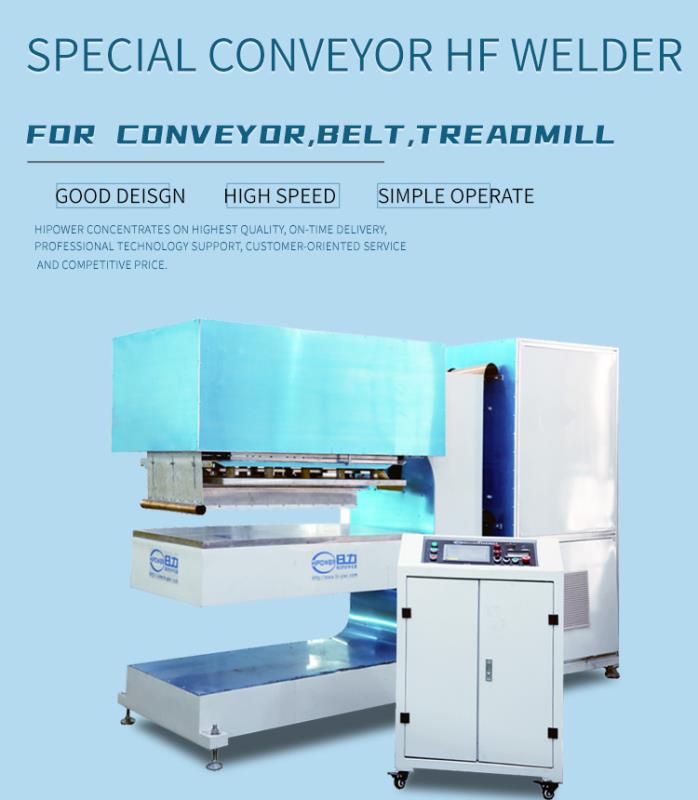

15KW-1C high frequency conveyer belt welding machine

Model: HR-15KW-1C
Scope Of Application: Specialized for welding thick tarpaulin, conveyor belt,treadmill,sidewall and other kinds of thick plastic material.
Features: 1. specialize for connecting treadmill belt welding machine, conveyor belt .2. Firmly welding,be well meeting with materials of thick or thin PVC,PU,PET or many other plastic products 3. Machine groove deep and wide,conveninent in continuous welding

15KW-1C high frequency conveyer belt welding machine

Application:

1.High frequency plastic welding machine specilize for sealing treadmill belt,conveyor belt,sidewall,profile.
2.Firmly welding,be well meeting with materials of thick or thin PVC,PU,PET or many other plastic products
3.Applied to processing of the large products, such as PVC water bed, drifting raft, children swimming pool, etc.


Characters:

1. specialize for connecting treadmill belt welding machine, conveyor belt .
2. Firmly welding,be well meeting with materials of thick or thin PVC,PU,PET or many other plastic products.
3. Machine groove deep and wide,conveninent in continuous welding with large area.

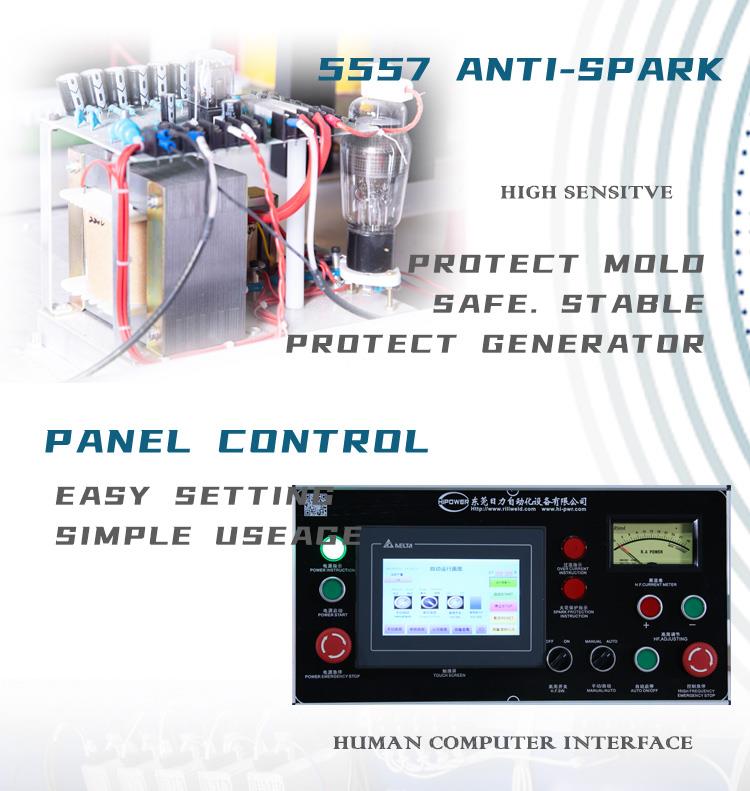

4. Adopting high sensitive anti sparkle device,avoid damaging the mould.
5. High quality imported apparatus,the longest welding extended to 800mm~1000mm one time.
6. European model square high frequency vibration box,more realible and stable in output.

service:

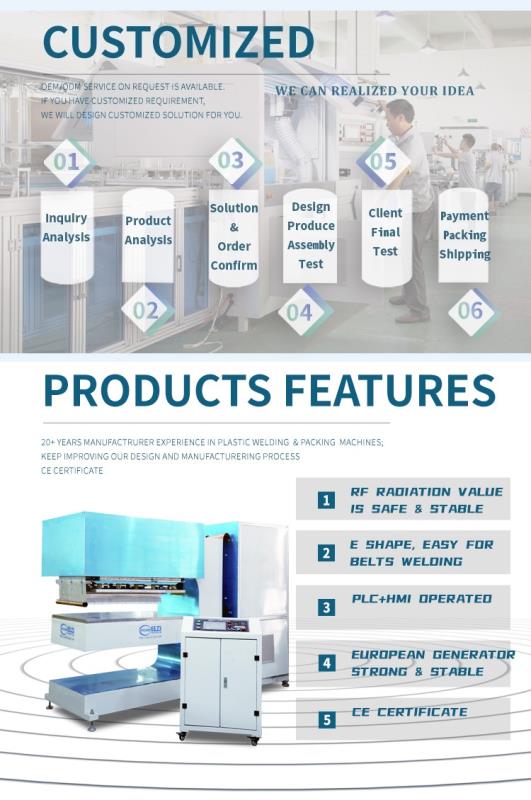

1. Recommend equipment of top choice based on your requirements for product.
2. test for client freely, and send the sample back for checking.
3. Providing assistance in manufacturing and modifying tools.
4. OEM/ODM accepted.
5. Warranty for one year.

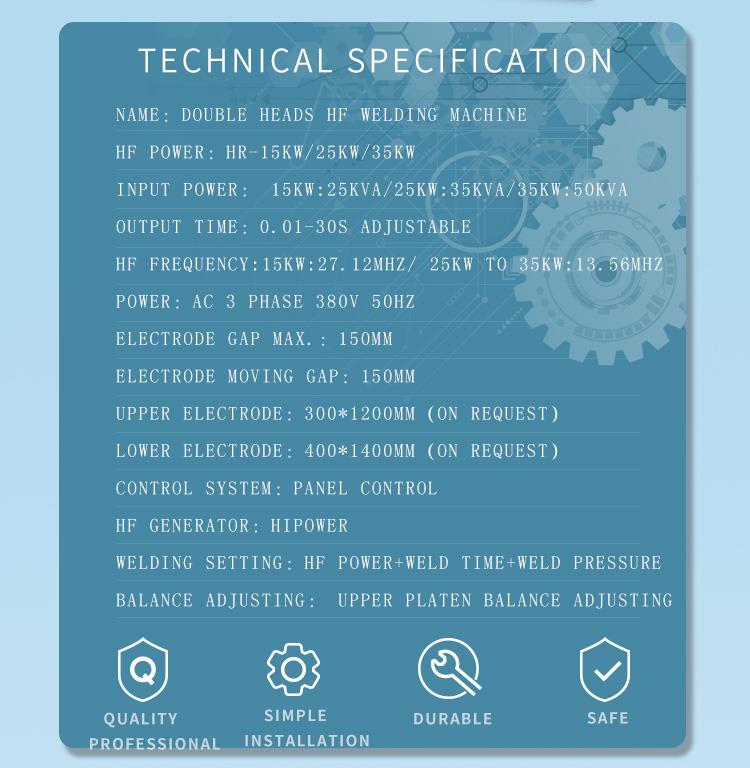

Technical parameter:

Model HR-15KW-C HR-25KW-C HR-35KW-C
Power  15000W 25000W   35000W
Voltage 3phase 380v 50Hz or customize
Frequency 27.12MHz                                     13.56MHz
Input power  25KVA          35KVA    50KVA
Rectifier silicon diode
space behind electrode 1150mm
Oscillation tube    8T85RB     8T25RA      8T87RB
Max pressure 1000kg 1500kg 1500kg
Operation mode pneumatic
Max distance of electrodes 150mm
The moving distance of active horn 150mm

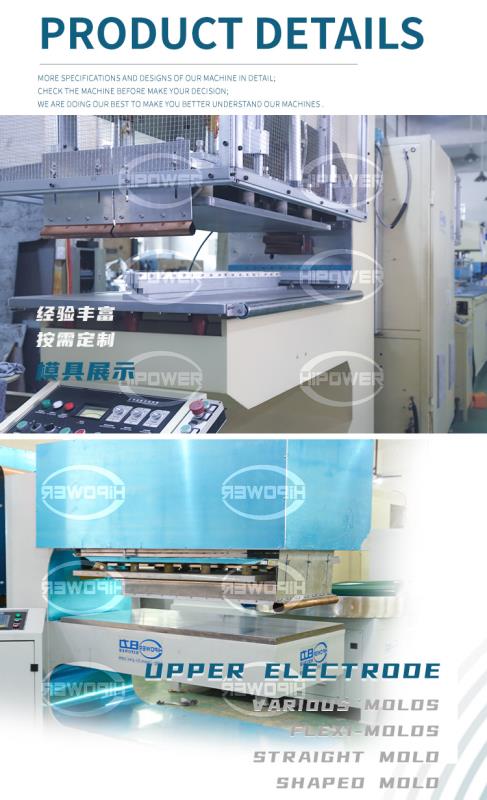

The size of upper electrode 150*600mm 150*700mm 150*800mm
The lowwer of lowwer electrode 250*750mm  250*850mm 250*950mm
Welding time 0.01~9.99s
Net weight 1500kg 1800kg       2000kg
Overall dimension 1700*1480*1740   1980*1480*2350    2050*1480*2500

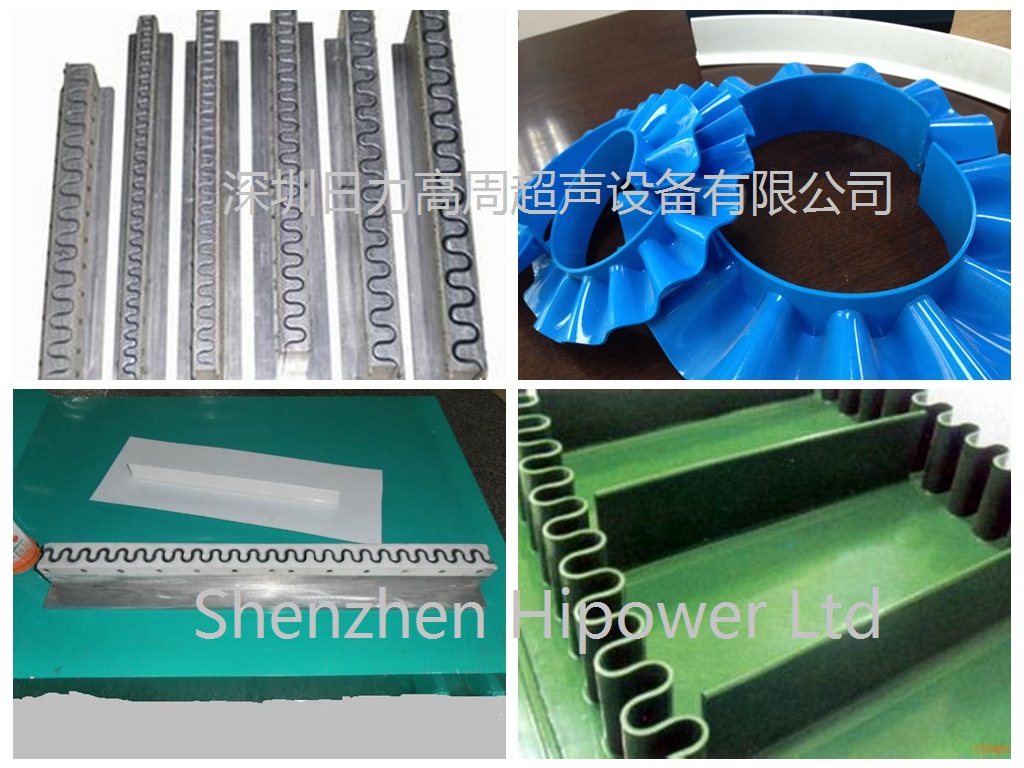

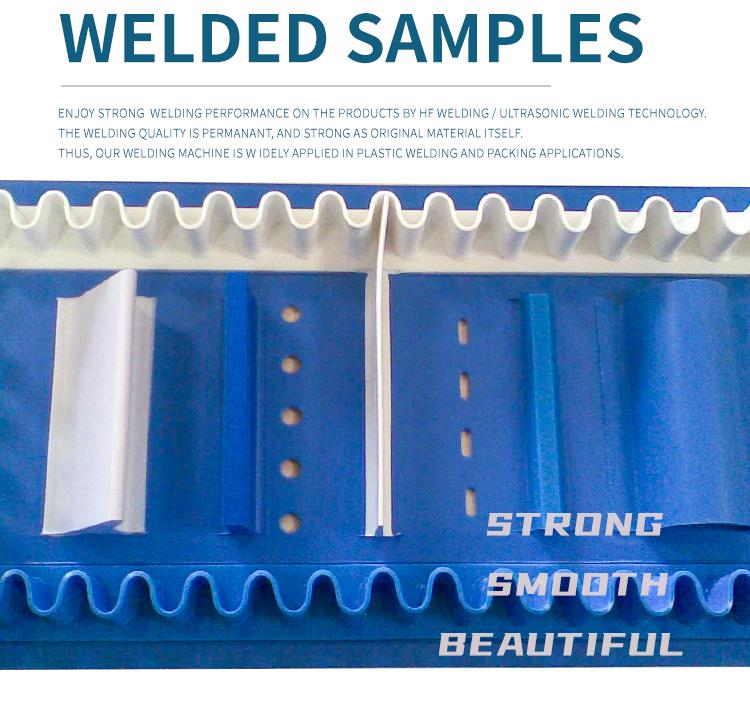

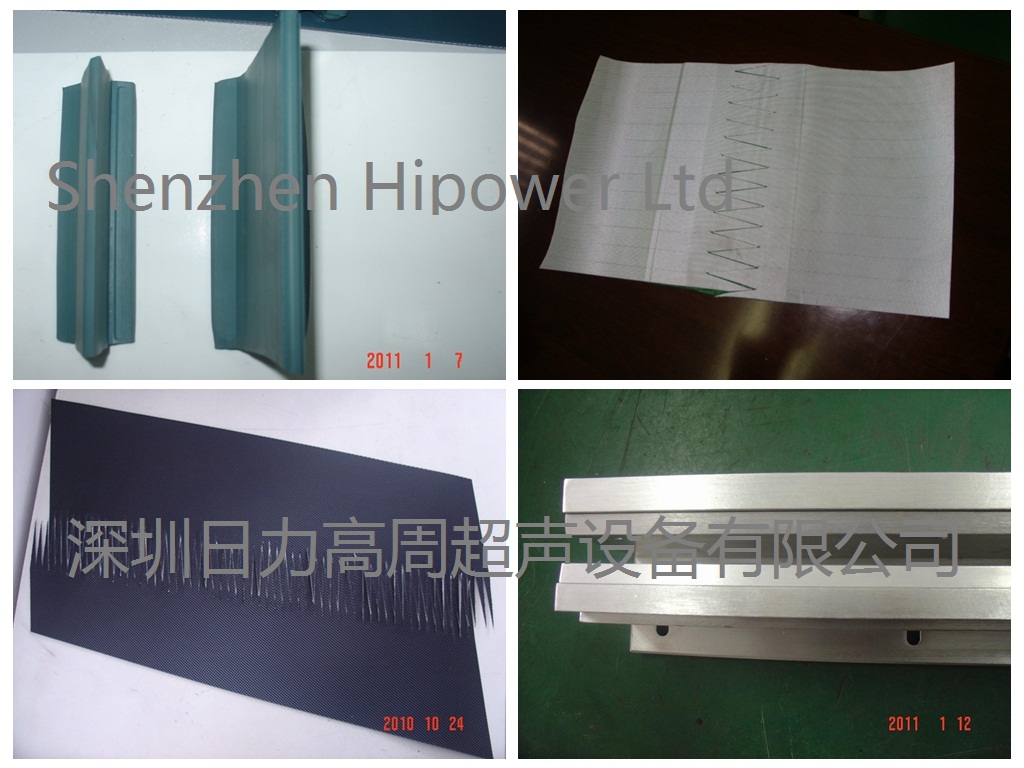

Samples view:

3D Drawing:
