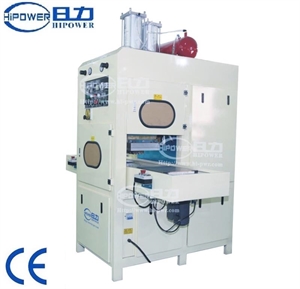

HR-8KW-30T High frequency puff/foam welding&cutting machine

Model: HR-8KW-30T
Scope Of Application: Applied for the puff/foam welding and cutting

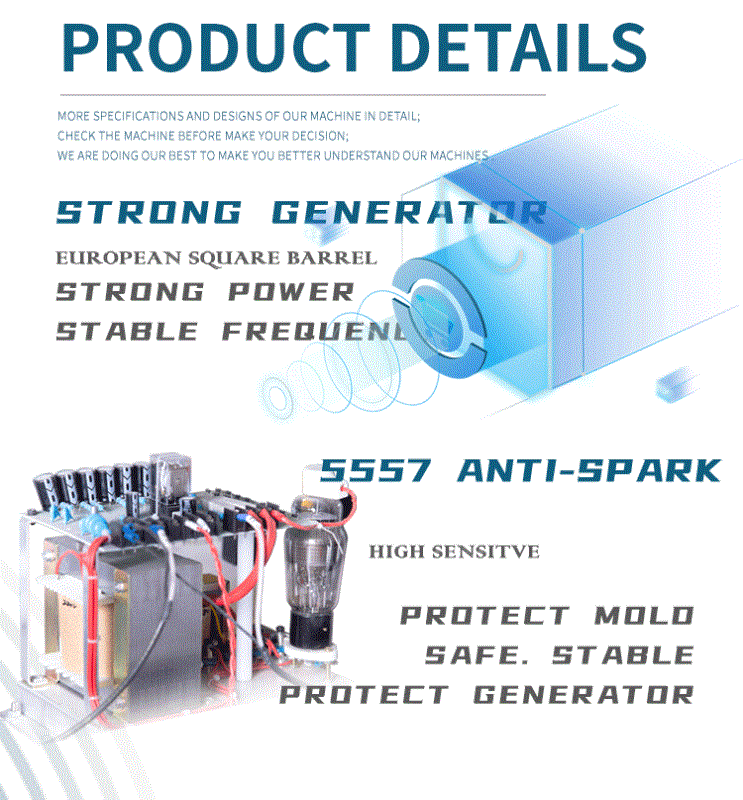

Features: High frequency synchronous welding and cutting machines for the puff/foam welding and cuttingBy Taiwan motor drive, precise positioning station. Fuse with NL-5557 high-frequency spark protection system, high sensitivity, high frequency mold prevent burn

High frequency puff foam welding&cutting machine

Feature:

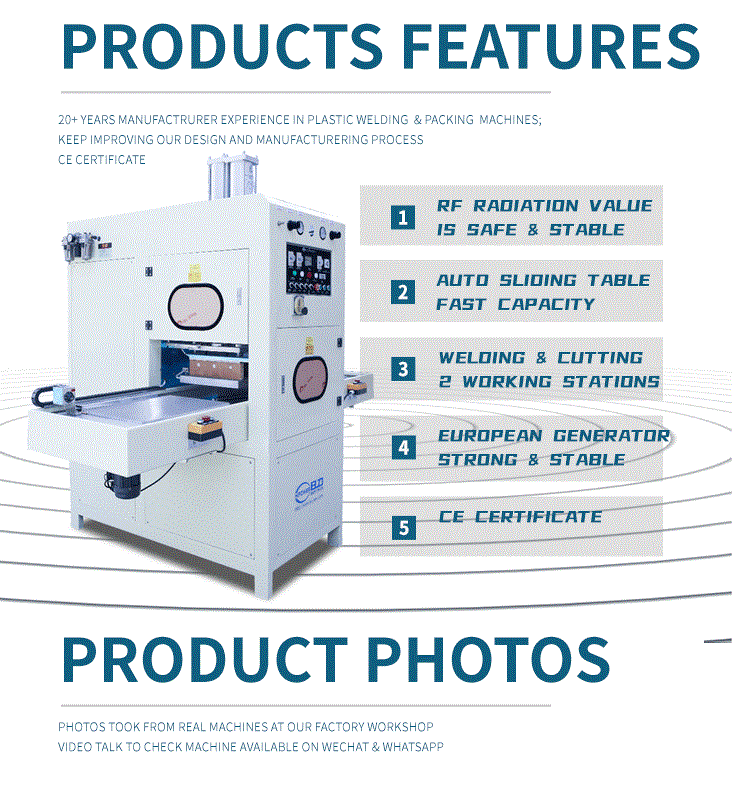

We have divided our high frequency synchronous welding and cutting machines into several different productcategories.
1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot)

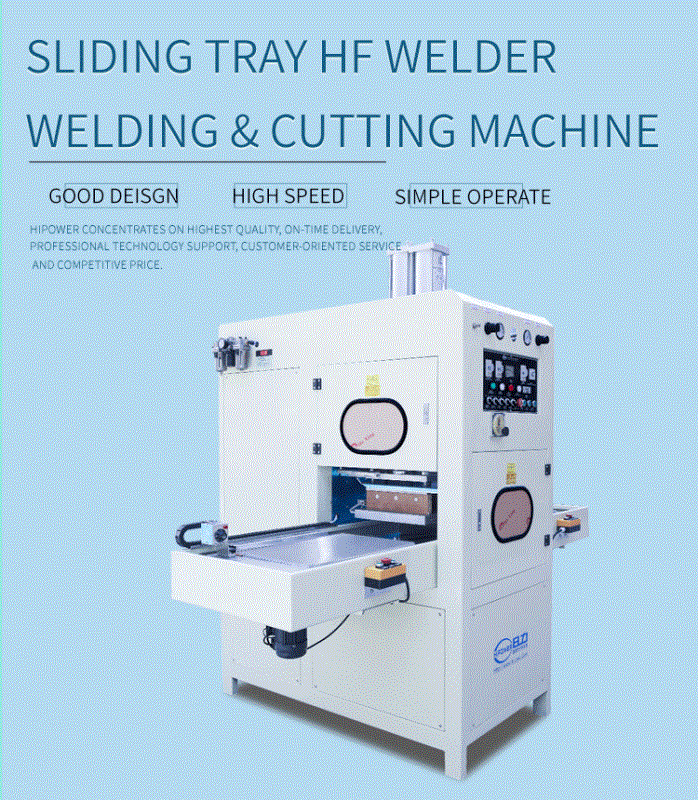

2.automatic sliding way high frequency synchronous welding and cutting machine
3.manual shuttle way high frequency synchronous welding and cutting machine
4.Double heads high frequency synchronous welding and cutting machine.
5.manual turntable high frequency only welding machine(with/without robot)
Stable frequency :
In strict accordance with the requirements of "Committee on Radio Interference" (CISPR). OscillationFrequency: 27.12/40.68
MHZ. With a cycle stabilizer and a device for suppression of leakage of the magnetic flux.Minimal interferes with the
outside equipment. European model squarness high frequency vibration box to supportmore realible and stable in output.

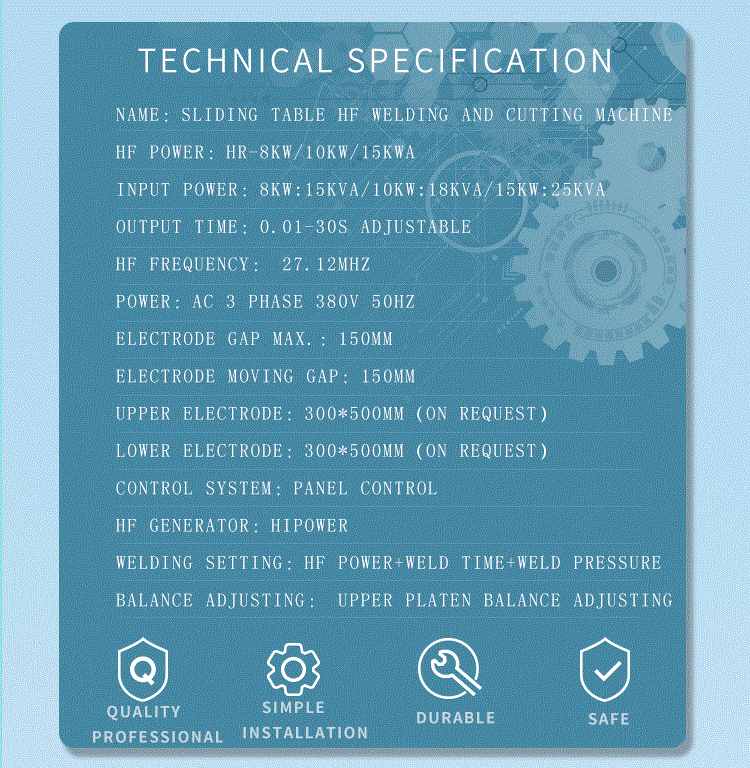

Specification:

Model

HR-8KW-30T
Power 8000W
Supply power 3P  220V/380V  50Hz/60Hz   & Customized
Frequency 27.12Mhz
Input supply 15KVA
Rectifier Silicon Diode
Oscillation tube 7T69RB
Max pressure 30T
Gap of electrodes 200MM
Distance of active horn 150MM
Size of upper electrode 300*500MM
Size of buttom electrode 300*500MM
Temperuture Scale 0~200 Adjustable
Welding time 0~10S Adjustable
Productivity Equal or less 4000times / 8 hours
Net weight 1T
Packing Dimension   920*1200*2060MM

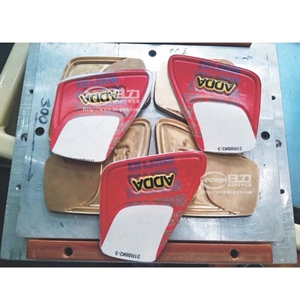

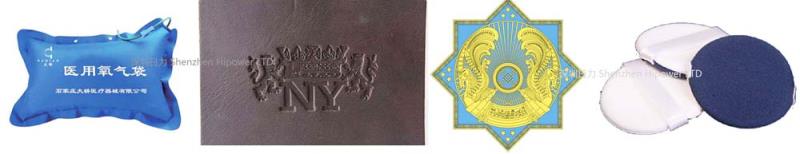

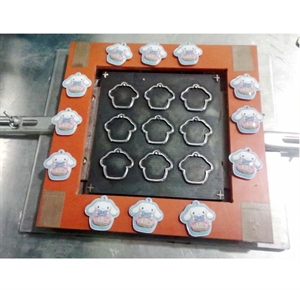

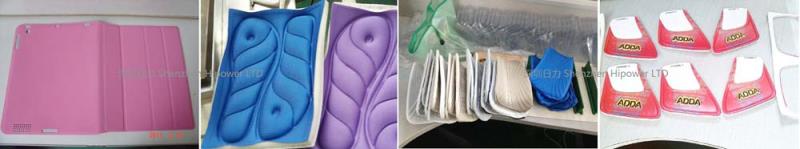

samples

samples

 High frequency puff/foam welding&cutting machine
