HR-15KW-2QT High Frequency Welding Machine for car heel pad
| Model： | HR-25KW-2QT |
| Scope Of Application： | Auto tools recognize function, multi-phase pressue self-adjusting, multi-phase HF auto-tuning; automatic parameters saving system,CE rated machine, hydraulic 20T pressure, . for Automobile carpet which is suitable for PVC heelmat and automobile carpet. |
| Features： | 1. Fully shielded HF weld area with side safety gate2. Touch screen programmable HMI / PLC 3. Protective HF radiation shield standard 4. Auto-tuning system optional 5. Hydraulic pressure |
High Frequency Welding Machine for Automobile carpet which is suitable for PVC heelmat and automobile carpet .
Automatic Car Carpet Welding Machine is specially& nbsp;designed for producing carpets for Audi A2; the ;Ford MONDEO;
Mercedes SLK; OPEL ASTRA, EPSILON, SAPHIRA; Porsch e 982,996; Volkswagen COLORADO, POLO, GOLF,
PASSAT NEW BEETLE Chrysler, Skoda, Seat, Peugeot,& nbsp;BMW, Volvo and many other automobile models
1. Apply for welding the heel-mat on the carpet
2. Suitable for LHD & RHD car.
3. Customized service offered.
4. Hydraulic Pressure from 2 ton -5 ton.
5. PLC programmed
Machine General Features:
1. Anti-flash system, to protect the tooling
/ mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision
rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable
rotating speed
4. With the use of touch screen HMI and
programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for
helping HF sealing process
6. Close off HF welding function, the
machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG,
PU, PET, PLA films
8. European-model square high frequency
vibration box, more reliable and stable in output

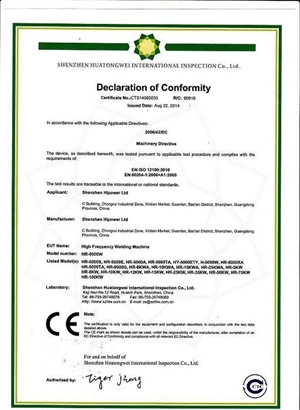

9. CE rated machine; factory verified by SGS
and BV;
10. Customer's site installation, training
& maintenance available
11. Online service by Email, Fax, Video
Online- allowing remote live video servicing of basic setup and repairs through the use of
face-to-face online video.\
12. High frequency welding press
pneumatically operated
Optional Features:
1. Fully shielded HF weld area with side
safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure
High frequency welding machine for automobile carpet.
Specification:
Model：
HR-15KW-2QT
HF power：
15000W
Power supply：
380V 3P 50HZ
HF frequency：
27.12MHz
Input power：
25KVA
Rectifier：
SILICON DIODE
Electron tube：
8T85RB
Max pressure：
2000KG (Hydraulic)
The gap of electrod：
150MM
The size of active horn：
150MM
The size of upper mold：
550*400MM
The size of
lower mold：
600*500MM

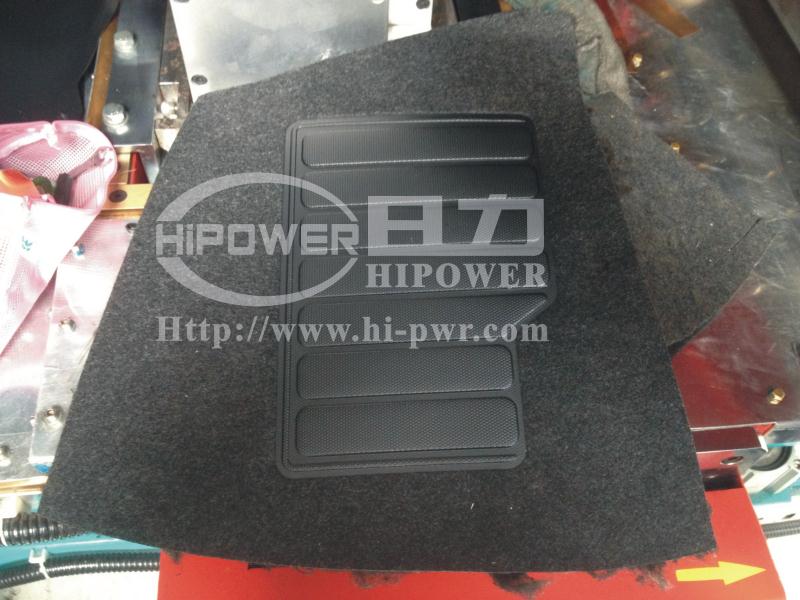

Sample view:
