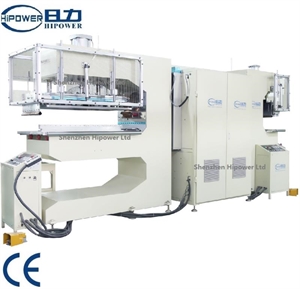

HR-35KW-2C conveyor belt welding machine

Model: HR-35KW-2C

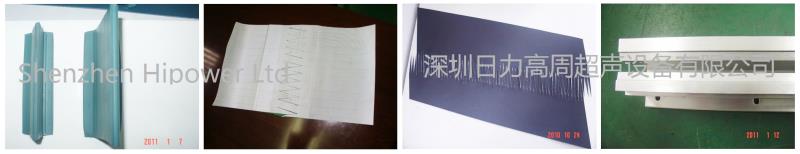

Scope Of Application: for treadmill and conveyor belt,treadmill belt , conveyor belt, side wall,profile and conveyor belt welding machine

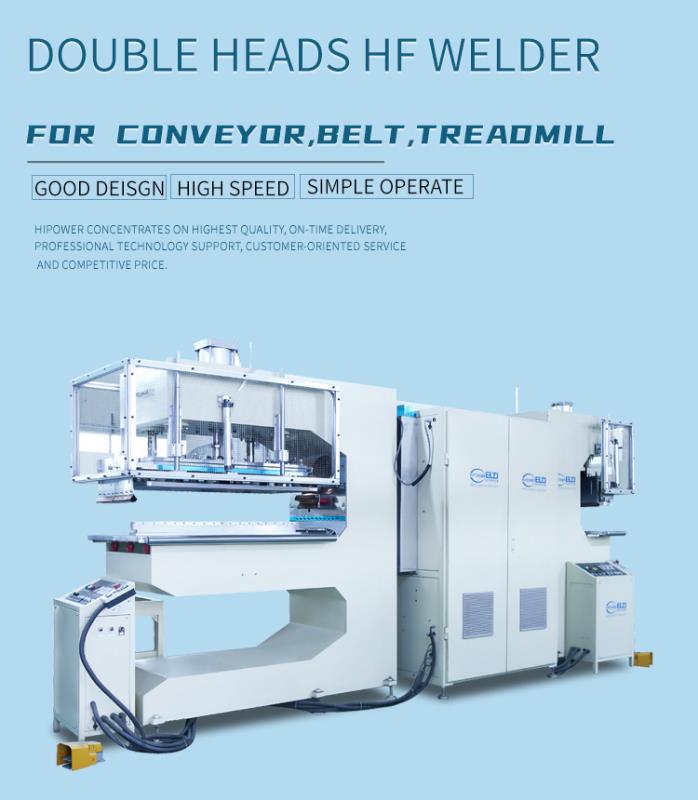

Features: Double Heads, 35KW. Can weld different products. E shape at welding station, easy to use

HR-35KW-2C conveyor belt welding machine


Feature of the machine:

1.specialize for connecting treadmill belt welding machine, conveyor belt...
2.Firmly welding,be well meeting with materials of thick or thin PVC,PU,PET or many other plastic products
3.Machine groove deep and wide,conveninent in continuous welding with large area.

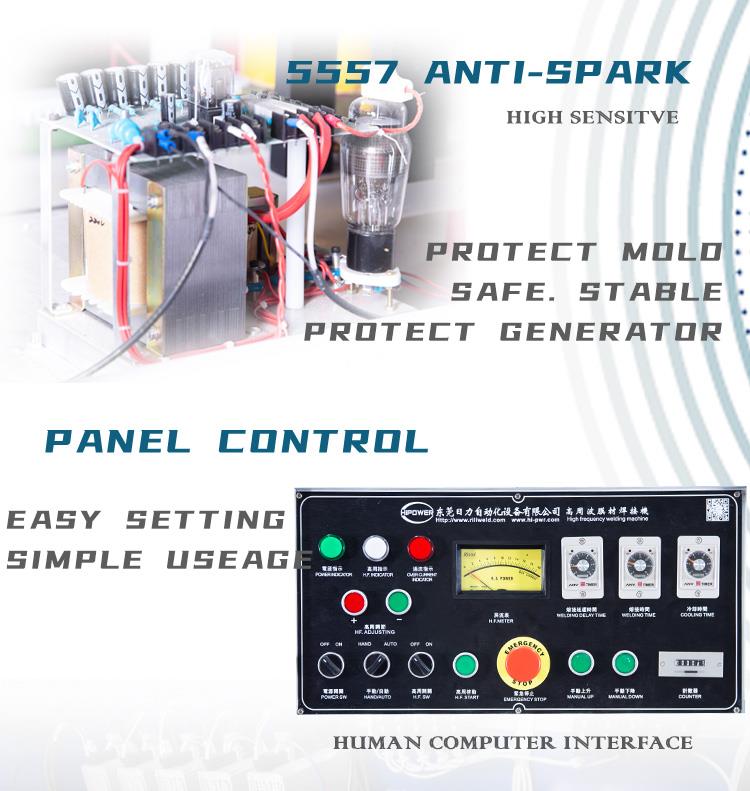

4.Adopting high sensitive anti sparkle device,avoid damaging the mould
5.High quality imported apparatus,the longest welding extended to 800mm~1000mm one time

6.European model square high frequency vibration box,more realible and stable in output.

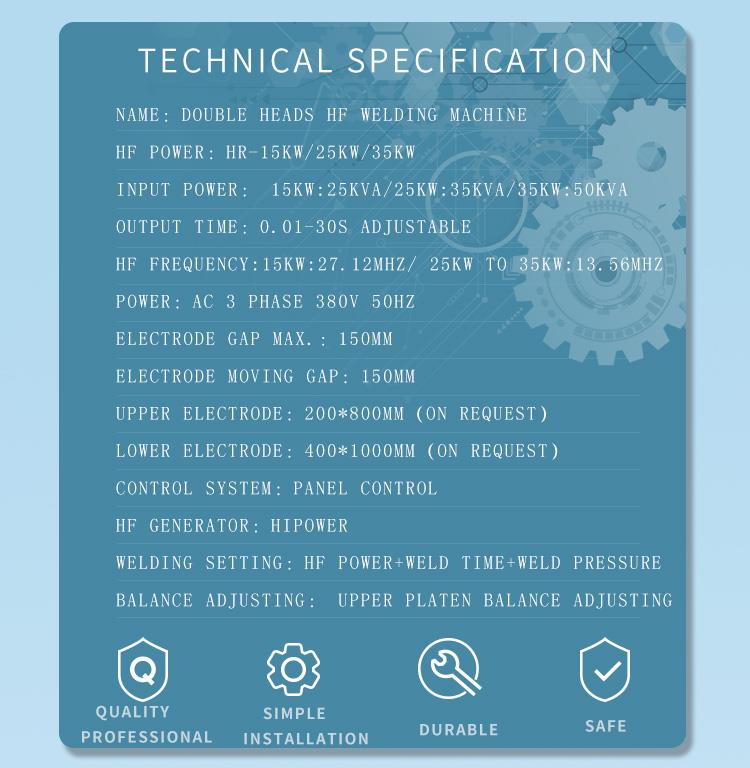

Specification:

Model HR-15KW-2C HR-25KW-2C HR-35KW-2C
Power  15kW 25kW   35kW
Voltage 3phase 380v 50Hz or customize
Frequency 27.12MHz                                     13.56MHz
Input power  25KVA          35KVA    50KVA
Rectifier silicon diode
space behind electrode 1150mm
Oscillation tube    8T85RB     8T25RA      8T87RB
Max pressure 1000kg 1500kg 1500kg
Operation mode pneumatic
Max distance of electrodes 150mm
The moving distance of active horn 150mm
The size of upper electrode 150*600mm 150*700mm 150*800mm
The lowwer of lowwer electrode 250*750mm  250*850mm 250*950mm
Welding time 0.01~9.99s
Net weight 1500kg 1800kg 2000kg
Overall dimension 1700*1480*1740     1980*1480*2350     2050*1480*2500

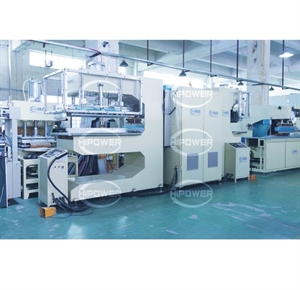

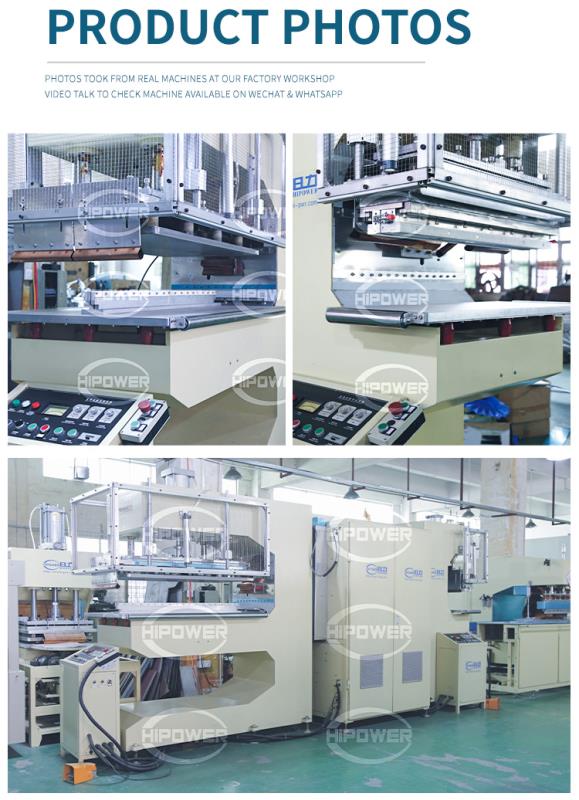

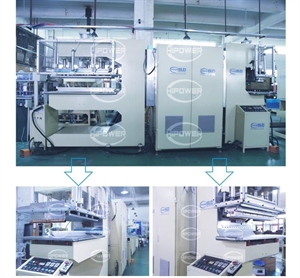

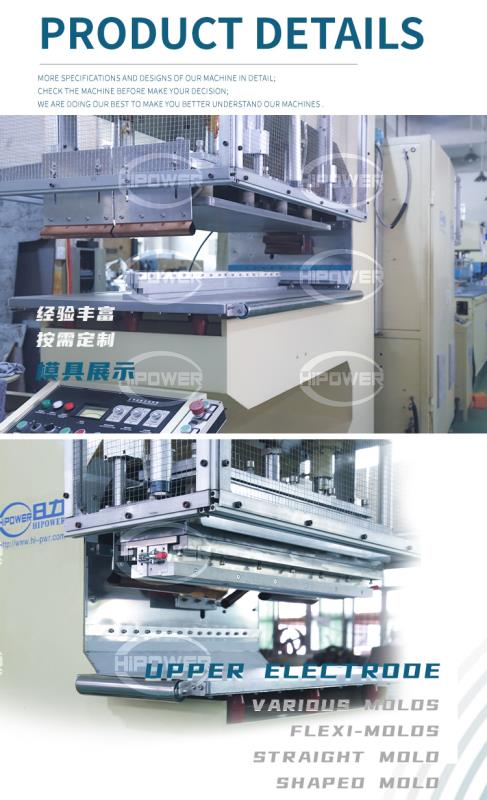

Machine Pictures:
