25KW-1C conveyor belt，running belt welding machine

Model：	HR-25KW-1C

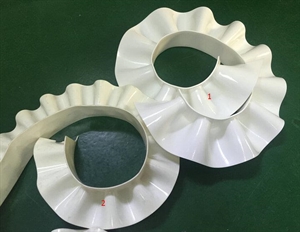

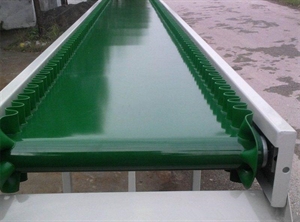

Scope Of Application：	Spccially for the material like the running belt, conveyor belt, sidewall.
Features：	Simple Operation , fast and easy to master, the products produced exquisite appearance, high efficiency.

HR-25KW-1C conveyor belt welding machine

Characters:

1. specialize for connecting treadmill belt welding machine, conveyor belt .
2. Firmly welding,be well meeting with materials of thick or thin PVC,PU,PET or many other plastic products.
3. Machine groove deep and wide,conveninent in continuous welding with large area.
4. Adopting high sensitive anti sparkle device,avoid damaging the mould.
5. High quality imported apparatus,the longest welding extended to 800mm~1000mm one time.
6. European model square high frequency vibration box,more realible and stable in output.
service:
1. Recommend equipment of top choice based on your requirements for product;
2. test for client freely, and send the sample back for checking
3. Providing assistance in manufacturing and modifying tools;
4. OEM/ODM accepted.
5. Warranty for one year.

Technical parameter:

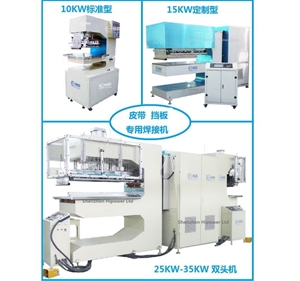

Model	HR-15KW-C	HR-25KW-C	HR-35KW-C
Power	15000W	25000W	35000W
Voltage	3phase 380v 50Hz or customize
Frequency	27.12MHZ 13.56MHz
Input power	25KVA	35KVA	50KVA
Rectifier	silicon diode
space behind electrode	1150mm
Oscillation tube	8T85RB	8T25RA	8T87RB
Max pressure	1000kg	1500kg	1500kg
Operation mode	pneumatic
Max distance of electrodes	150mm
The moving distance of active horn	150mm
The size of upper electrode	150*600mm	150*700mm	150*800mm
The lowwer of lowwer electrode	250*750mm	250*850mm	250*950mm
Welding time	0.01~9.99s
Net weight	1500kg	1800kg	2000kg
Overall dimension	170014801740	198014802350	205014802500
