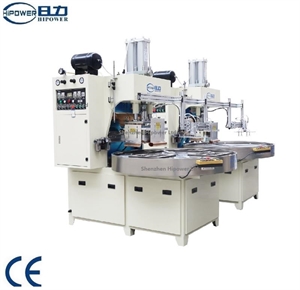

15KW-4AC High Frequency welding&cutting machine

Model: HR-15KW-4AC
Scope Of Application: This kind of machine can be also called as simultaneous welding and cutting machine.Specialize for the plastic product with need to be welded material together and cut the extra edge out simultaneously.
Features: We have divided our high frequency synchronous welding and cutting machines into several different product categories; 1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot) 2.automatic slidin
HR-15W-4AC High Frequency welding&cutting machine

Feature:

We have divided our high frequency synchronous welding and cutting machines into several different productcategories.
1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot)
2.automatic sliding way high frequency synchronous welding and cutting machine
3.manual shuttle way high frequency synchronous welding and cutting machine
4.Double heads high frequency synchronous welding and cutting machine.
5.manual turntable high frequency only welding machine(with/without robot)

Stable frequency :
In strict accordance with the requirements of "Committee on Radio Interference" (CISPR).   OscillationIn strict accordance with the requirements of "Committee on Radio Interference" (CISPR).   OscillationFrequency: 27.12/40.68 MHZ. With a cycle stabilizer and a device for suppression of leakage of the magnetic flux.Minimal interferes with the outside equipment. European model squarness high frequency vibration box to supportmore realible and stable in output.

Spark restrains :
With NL5557 high sensitivity spark suppression circuits, Accurate detection of the imbalance current.
Can instantly cut off the supply of the oscillation loop to restrain the sparks to protect the mold,
raw materials andproducts. At the same time   warning lights will send you the alert.

Strong out-put power :
Using aluminum material with good quality and low-loss coaxial resonator. More stable output high frequency. Using aluminum material with good quality and low-loss coaxial resonator. More stable output high frequency.
Stronger radiation shielding. A good output wave form. The maximum pressure up to 50T, more efficiency.
Oscillation current regulation:
Different output power based on product size and thickness is available.You can control the welding and Different output power based on product size and thickness is available.You can control the welding and guarantee the homogeneity of the quality .

Welding mould(die) :
High frequency machine must work with high frequency welding die. More than getting perfect welding and cutting effect,we do some special treatment on the welding die by ourselves to make it more durable. Our client can use it for about 10 million times without any replacement of the down mould.

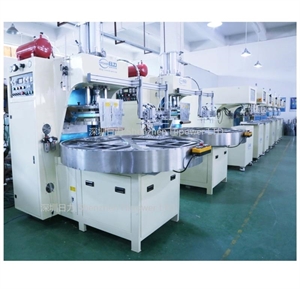

Multi-working positions:

Automatic turntable workingplate with 3~6(optional) working positions and circum rotation.  installed with Taiwan
motor drive to support precision decollator,acorientation,error+10um. Can have robot to fetch the finished products
out of machine.

Security :
overcurrent protection devices, can automatically cut off the supply to protect the oscillation tube and the rectifier, at the same time avoid frequency drift.

Technical parameter:

Model HR-15KW-4AC
Power 15000W
Supply power 3P 380V 50Hz/60Hz&Customized
Frequency 27.12MHZ
Input supply 25KVA
Rectifier Silicon Diode
Oscillation tube 8T85RB
Max pressure 25T
Gap of electrodes 200MM
Distance of active horn 175MM
Size of upper electrode 400*500MM
Size of buttom electrode 400*500MM
Temperuture Scale 0~200 Adjustable
Welding time 0~10S Adjustable
Productivity Equal or less 4000times / 8 hours
Operation Mode  Pneumatic
