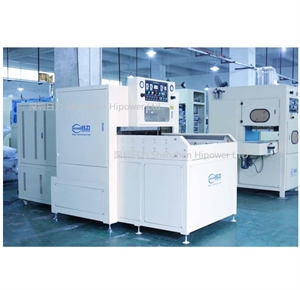

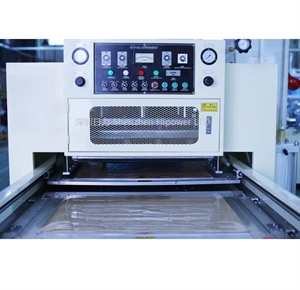

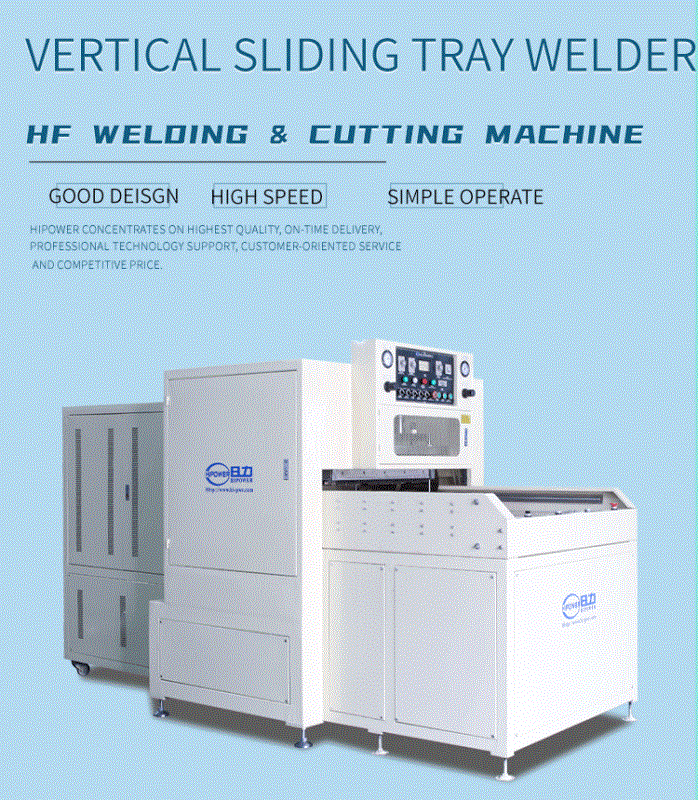

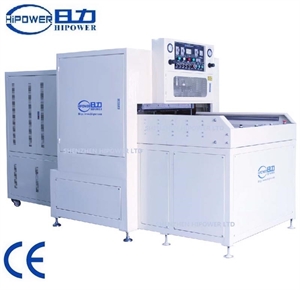

HR-8000WTS one side way automatic slide style welding and cutting machine for shoes vamp

Model: HR-8000WTS
Scope Of Application: High Frequency welding machine has been wildly used in the process of producing various products. such as : . Toy stationery, such as :Gift bag, basketball embossing, album inner page, the inner page of business card,mousepad, glasses case,etc. 2. Leather
Features: Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine.

HR-8000WTS one side way automatic slide style welding and cutting machine for shoes vamp

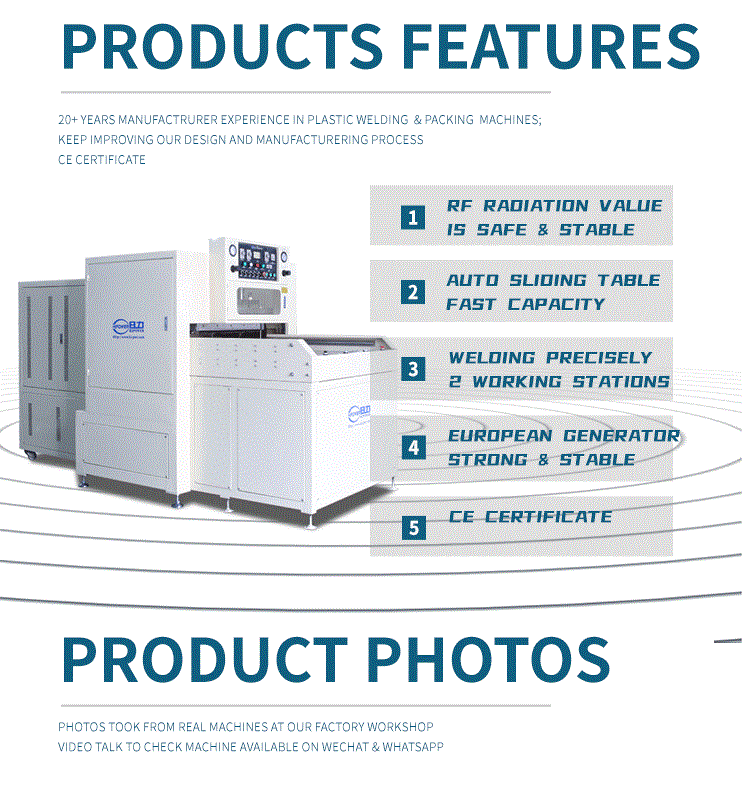

Feature:

1. Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine.
2. Double-direction automatic slipway,come-and-go or continuous delivering the mould,accurate-orientation.
3. Adjustable cutting pressure 1-50 tons,stable and realible in output,firm in structure.

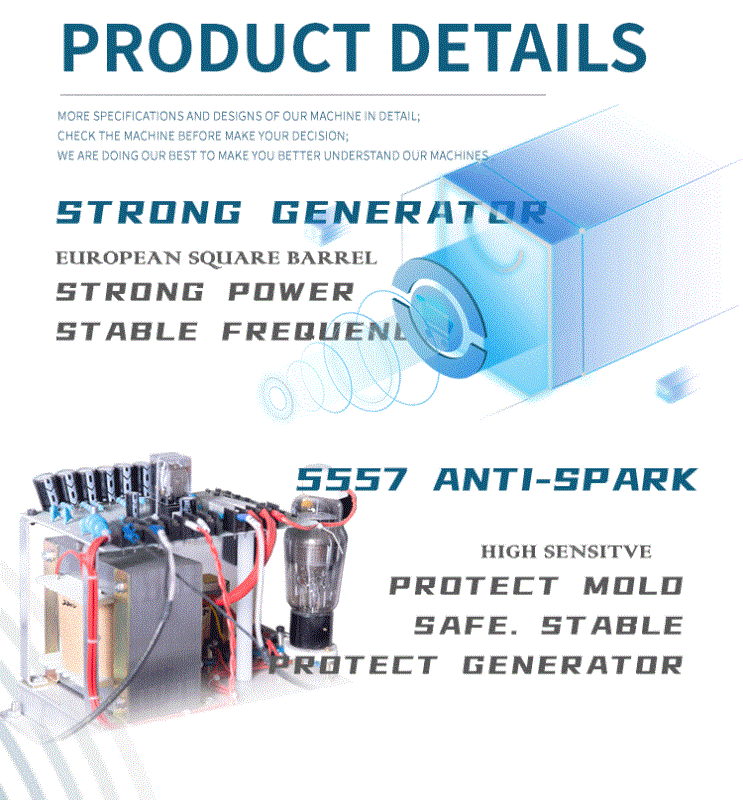

4. Adopting high sensitive anti-sparkle device NL5557  to avoid damaging the mould efficiency.

Technical parameter:

Model:      HR-8KWTS   HR-15KWTS
HF power:   8000W      15KW
power supply:                  380V/50/60HZ
Frequency:                    27.12MHZ
input power:   7KVA        8KVA         25KVA       18KVA
Rectifier:                   silicon diode
Oscillaton tube:   7T69RB     8T85RB
maxpressure:    20T           30T
gap of eletrode:                     100mm
size of active horn:                     100mm
size of upper plate:             400*500mm           600*800mm
size of lower plate:             400*500mm            600*800mm
welding time :                   0---10s
productivity:                 equal or less than 3500times/8H
operation mode:                 pedal

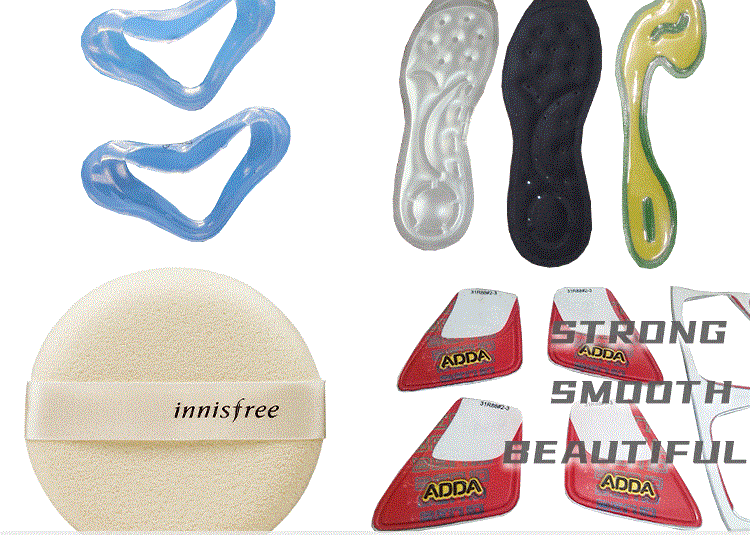

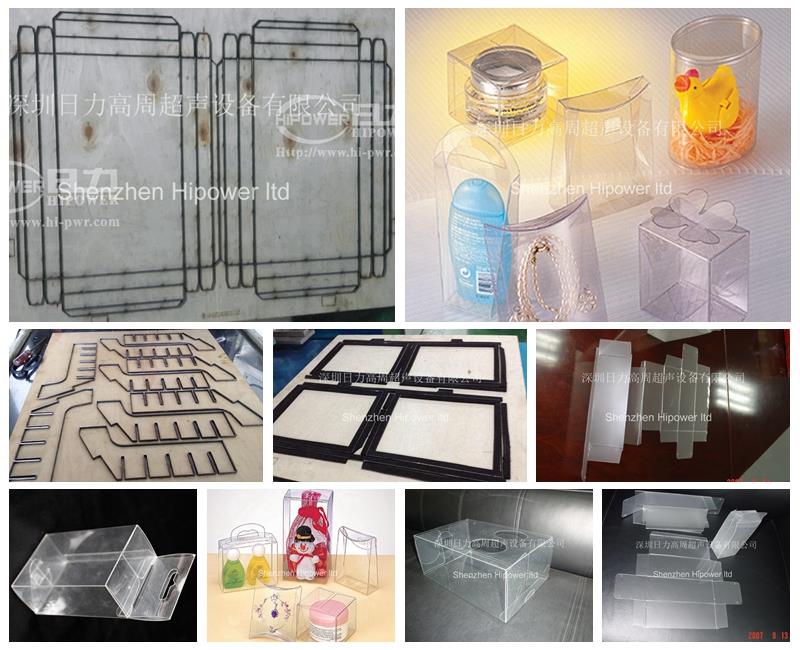

Samples view:
