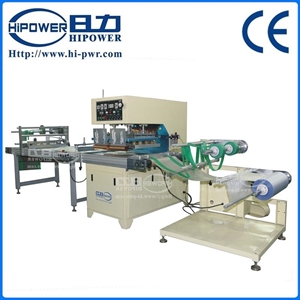

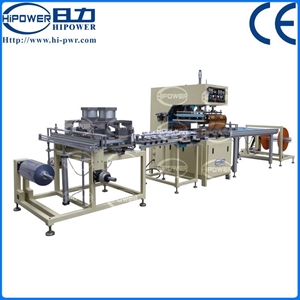

HR-8000G Automatic High Frequency Welding Machine
| Model： | HR-8000G |
| Scope Of Application： | Automation H.F welding machine for Book cover , Business card sleeve , etc. |
| Features： | 1.Optional of feeding-transfering material simultaneously,adjustable operating speed.2.Electronic counting,continuous automatic feeding speed,suitable for different materials.3.Exported abrasion proof of transformation,avoid damaging the mould. |
HR-8000G Automatic High Frequency Welding Machine
Character
1.Optional of feeding-transfering material simultaneously,adjustable operating speed.
2.Electronic counting,continuous automatic feeding speed,suitable for different materials.
3.Exported abrasion proof of transformation,avoid damaging the mould.
4.Photoelectricity induction,feeding-collecting simultaneously,precise-controlled.
5.Technique specifications
Technical parameter:
|
Model
|
HR-8000G
|
|
Power
|
8000W
|
|
Vlotage
|
380V 50/60Hz
|
|
Frequency
|
27.12MHz
|
|
Input power
|
15KVA
|
|
Rectifier
|
SILICON DIODE
|
|
Viboration tube
|
7T69RB
|
|
Maximum pressure
|
500kg
|
|
Max gap of electrodes
|
100MM
|
|
Size of active horn
|
100MM
|
|
Size of upper electrode
|
500*700mm
|
|
Size of working plate
|
600*800mm
|
|
Scale of tempreture
|
0~200 Degree Adjustable
|
|
Welding time
|
0~10S Adjustable
|
|
Productivity
|
Equal or less 6000times/8h
|
|
Net weight
|
1600kg
|
|
Dimension
|
4500*1250*2000
|

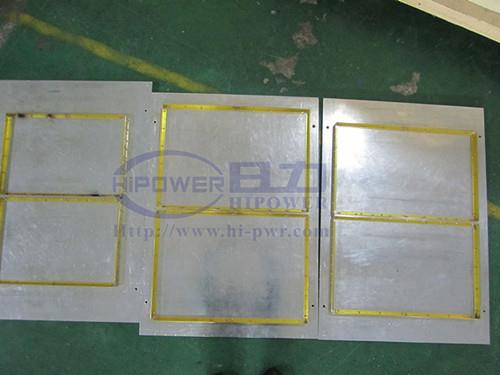

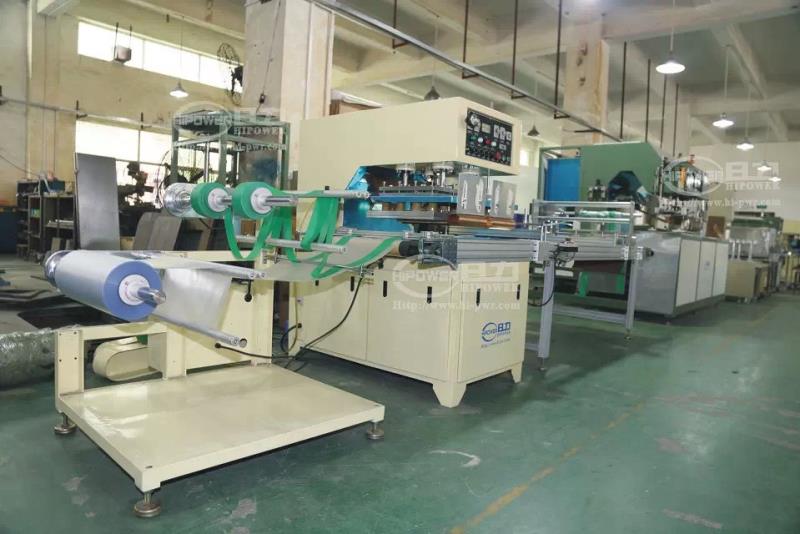

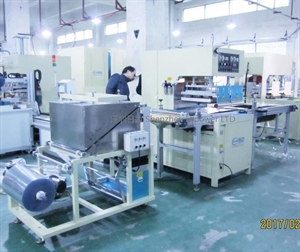

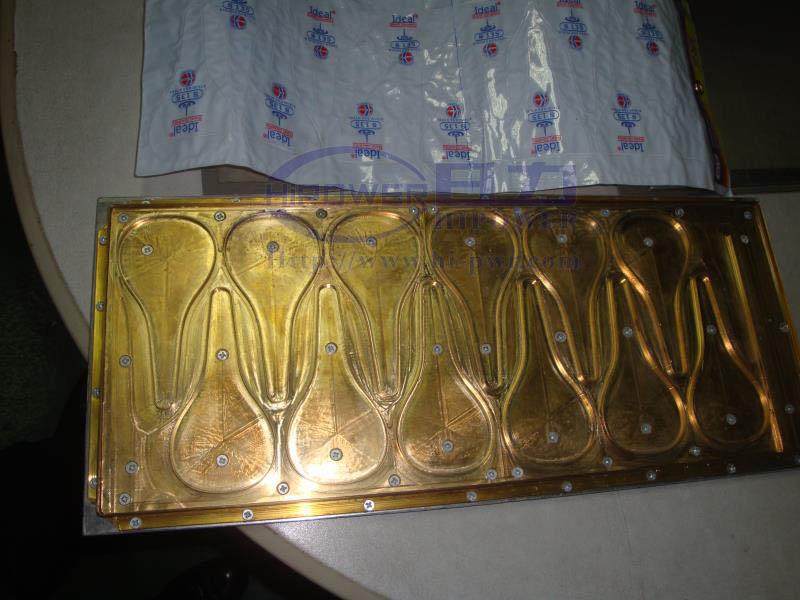

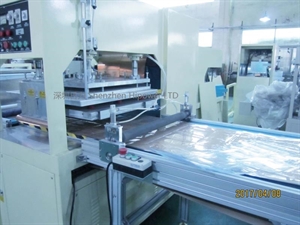

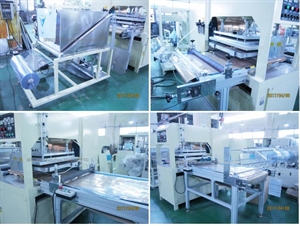

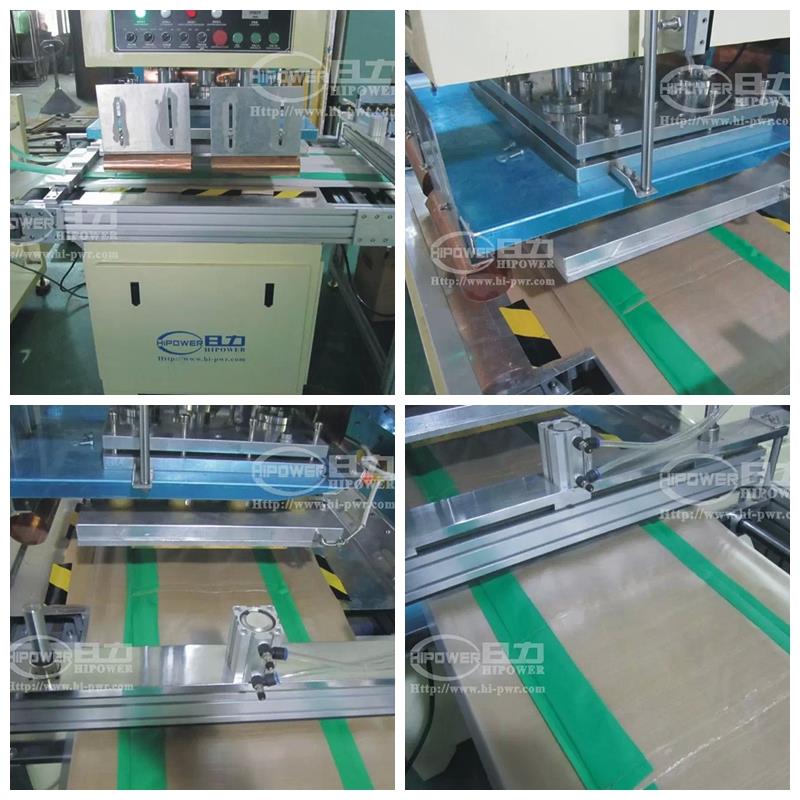

Sample view:

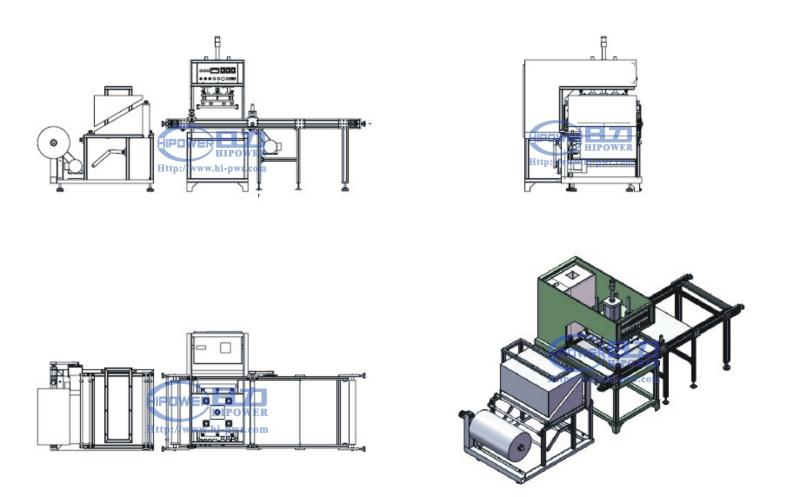

Drawing:
