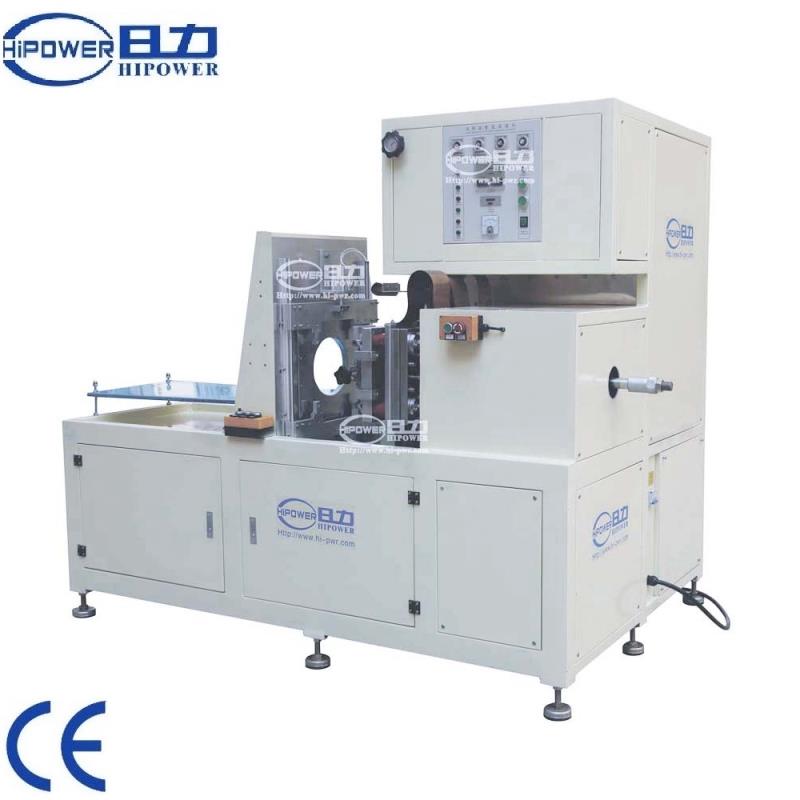

HR-8KW Horizontal type high frequency welding machine
| Model： | HR-8KW |
| Scope Of Application： | Application:it is non-standard welding machine for welding such as :the gimbal ring, piston etc. |
| Features： | The machine pressure welding products through from the side ,as more layer sheet materials to be welding continuelly . |
Feature of the machine
The machine pressure welding products through from the side ,as more layer sheet materials to be welding continuelly .
Technical Specification:
Model： HR-8KW
H.F POWER： 8000W
POWER SUPPLY： 380V 50/60HZ
FREQUENCY： 27.12MHZ / 13.56 MHZ
INPUT POWER： 15KVA
RECTIFIER： SILICON DIODE
VIBRATIONAL TUBE： 7T69RB
MAX PRESSURE： 500kg
MAX GAP OF ELECTRODE： 200 mm
SIZE OF ACTIVE HORN： 150 mm
SIZE OF UP ELECTRODE：300mm*300mm
SIZE OF DOWN ELECTRODE： 300mm*300mm
WELD TIME： 0---10s

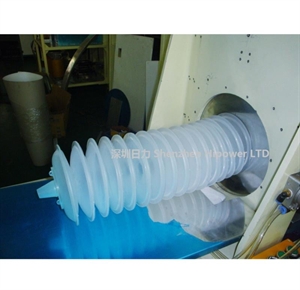

On the site:

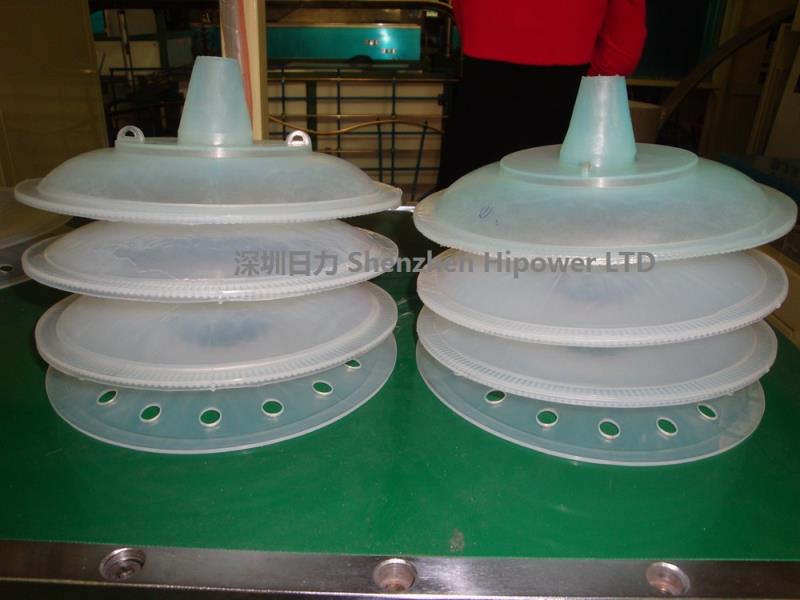

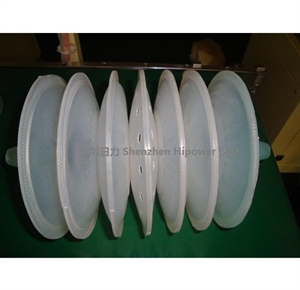

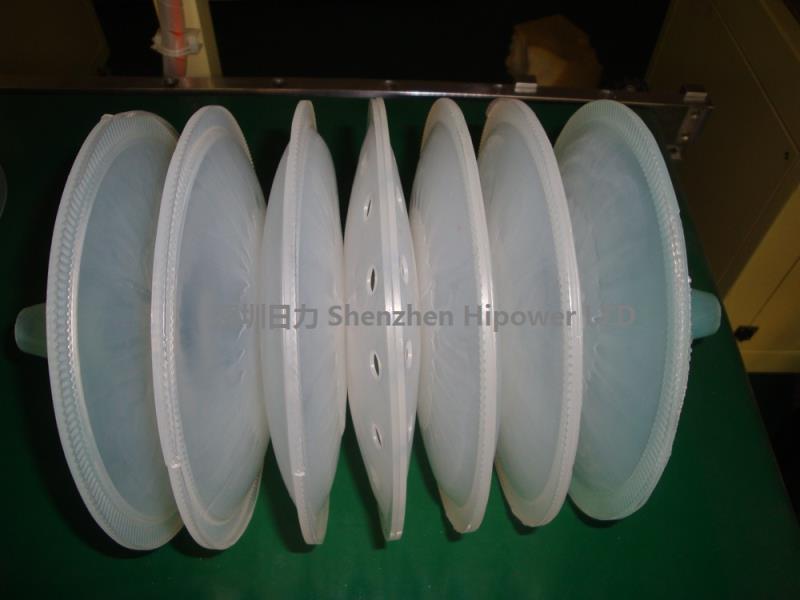

Sample view:

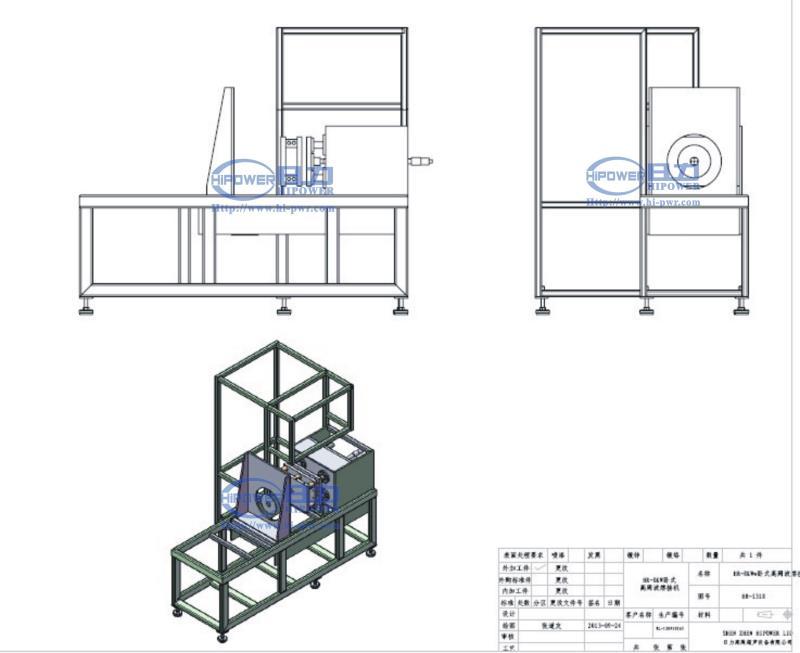

Drawing:
