HR-15KW-FT High frequency liquid tank welding machine
| Model： | HR-15KW-FT |
| Scope Of Application： | Applied to liquid tanks ,PVC digesters, canvas, advertising printing cloth, shade cloth and other welding |
| Features： | 1.Designed with the long flat worktable and good for large areas welding. 2.Firmly welding,meet the needs of different thickness of materials,precision positioning 3.This cancas welder is equipted with the new oscillation case design. Strong, d |
1.Designed with the long flat worktable and good for large areas welding.
2.Firmly welding,meet the needs of different thickness of materials,precision positioning
3.This cancas welder is equipted with the new oscillation case design. Strong, durable and reliable.
4.Machine Groove deep and wide,convenient in continuous welding with large area
5.Installed with NL 5557 antiflash device to protecting welding and mould from over current.
7.The equiped high-sensitivity ARC suppressor features quick response and high stability.
8.working table can be designed as clients special request.
9.Europeanmodel squarnes high frequency vibration box,more realible and stable in output.
Technical parameter:
|
Model
|
HR-8KW-FT
|
HR-12KW-FT
|
HR-15KW-FT
|
|
Power
|
8000W
|
12KW
|
15KW
|
|
Voltage
|
220v/380V 50/60HZ or customize
|
||
|
Frequency
|
27.12MHz
|
||
|
Input power
|
15KVA
|
20KVA
|
25KVA
|
|
Rectifier
|
silicon diode
|
||
|
Oscillation tube
|
7T69RB
|
E3130
|
8T85RB
|
|
Max pressure
|
500kg
|
800kg
|
1000kg
|
|
Operation mode
|
pneumatic
|
||
|
Max distance of electrodes
|
150mm
|
||
|
The moving distance of active horn
|
150mm
|
||
|
The size of upper electrode
|
50*50*600mm
|
50*50*800mm
|
60*60*1000mm
|
|
The lowwer of lowwer electrode
|
400*800mm
|
400*850mm
|
400*1050mm
|
|
The range of tempreture
|
30~200 oC adjustable
|
||
|
Welding time
|
0.01---9.99sdjustable
|
||

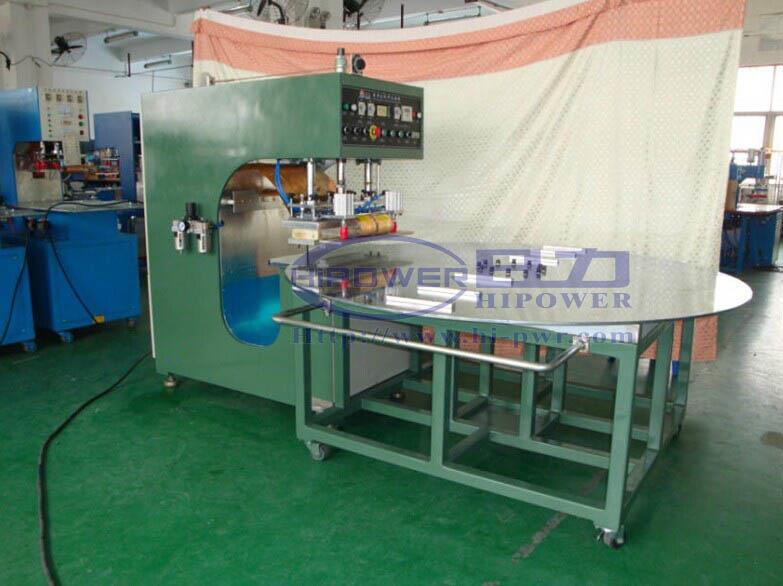

On the site:

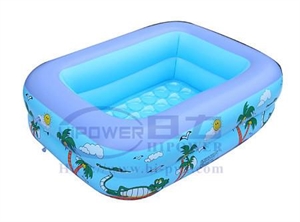

Sample view:
