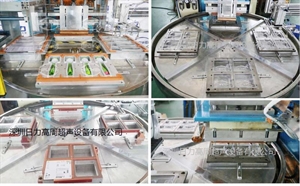

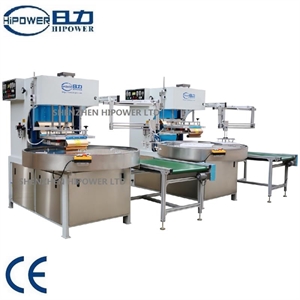

HR-5KWET-3AC Blister High Frequency Sealing Packing machine

Model: Blister High Frequency Sealing Packing machine
Scope Of Application: This kind of machine can be also called as hf welding machine.Mainly apply for welding PVC,APET,PETG,GAG, Double side clamshell,blister+cardboard,and many other environment-friendly materials.
Features: for plastic product to be welded together.

 Blister High Frequency Sealing Packing machine

Application:

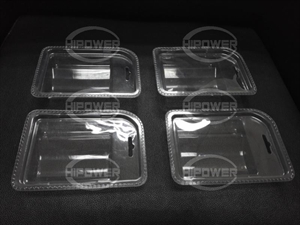

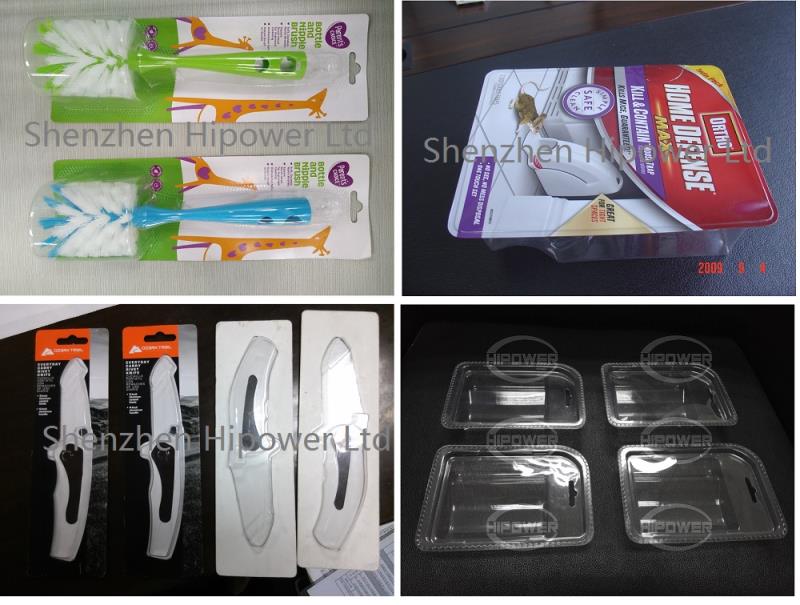

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages,
But it is multipurpose machine, for it can be used for industry like PU leather cover for pad,, safety vests, reflective signs, inflatable toys, cosmetics, folding packing box, automotive, medical, rehabilitation, packaging, recreation, textile and clothing, reflective garments,.etc.
The HF blister packaging welder series have HF power outputs from 5KW to 35KW 30kW for multi-cavity production loads and specialized products.
















Machine General Features:
1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.\
12. High frequency welding press pneumatically operated

Optional  Features:
1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure


Specification:

Model                                 HR-5KWET-3AC
Power                                      5000W
Supply power                      3P 380V 50Hz/60Hz&Customized
Frequency                          27.12Mhz
Input supply                        8KVA
Rectifier                              Silicon Diode
Oscillation tube                   7T85RB
Max pressure                      5T
Gap of electrodes              200MM
Distance of active horn     100MM
Size of upper electrode     300*400MM
Size of buttom electrode     400*500MM
Temperuture Scale            20~300 Adjustable
Welding time                      0~10S Adjustable
