Product Display > High Frequency Welding Machine > Canvas/Tarpaulin/Tent/Membrane Welder

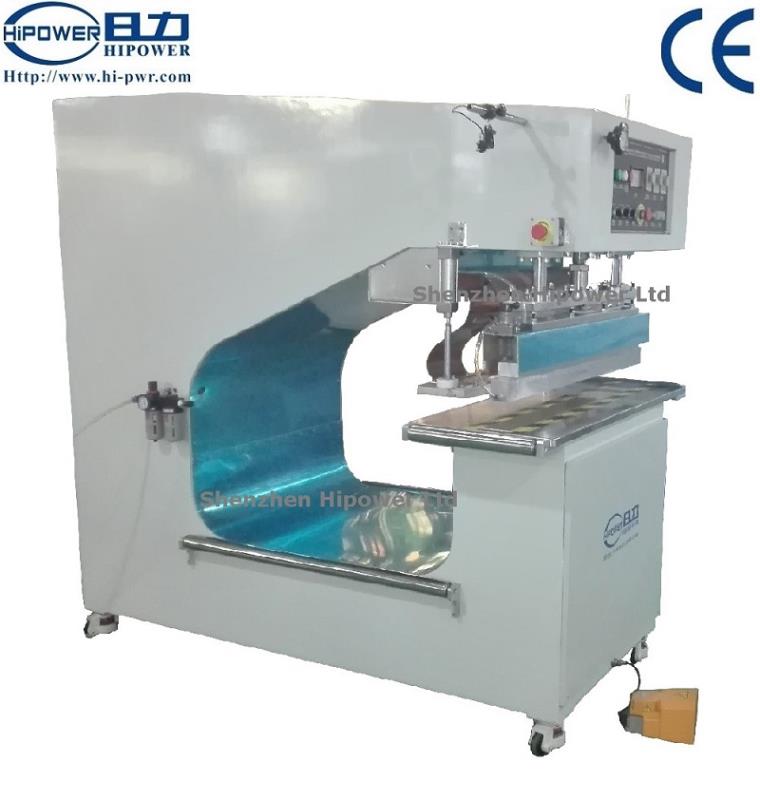

HF Tent Membrane Welding Machine 15KW-F2

Model: HR-15KW-F2
Scope Of Application: High frequency welders for the production of tarpaulins, truck curtains, marquees, tents and large covers.And also can weld The automobile synthetic leather chairs, sun visor, door handrails and other footwear embossing, trademark, watch band, belt, CD ba
Features: 1 The feed channel is lager and can match big size products2 Free space behind: 1150mm,Pedal controller & pneumatic operated,Grounding platen behind,excellent HF output design, 5557 arc-suppressor

HR-15KW-F2 High Frequency Canvas Welding Machine

High frequency welders for the production of tarpaulins, truck curtains, marquees, tents and large covers.

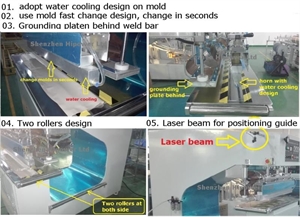

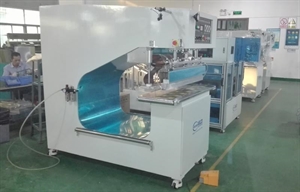

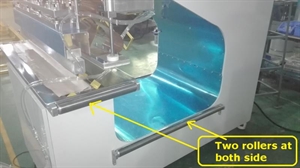

Machine Views:


Application:

It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.

Products:

1. Large format technical textiles,
2. Large Covers for trucks and boats
3. Membrane Curtains for trucks
4. Large Swimming pool covers
5. Temporary shelters

Our welders with power outputs up to 35KW and deep space behind the electrode provide advanced technological features for optimizing productivity and manufacturing quality.Stabilized and smooth regulated HF generator provides efficient power for al linear welding up to 1500mm in length and 50mm wide.

All machines are completely safe for the operator and fully comply with CE regulations.

Features:

Model HR-8KW-F2 HR-12KW-F2 HR-15KW-F2 HR-25KW-F2
Output Power of Generator 8000W 12000W 15000W 25000W
Anti-Spark System U.S.A. PL-5557 High sensitive anti-spark system
Voltage 3P AC 380V 50Hz-60HZ or customize
Frequency 27.12MHz +/- 0,6 %
Input power 15KVA 20KVA 25KVA 35KVA
Rectifier SILICON DIODE
Oscillation tube 7T69RB E3130 8T85RB 8T25RA
Max pressure 500kg 800kg 1000kg 1500kg
Operation mode Pneumatic Operated
Max gap of electrodes 150mm
Size of active horn 150mm
Upper Electrode (W*H*L) 50*50*800mm 50**50*900mm 50*50*900mm 50*50*1000mm
Size of Work Table (L*W) 450*1050mm 450*1150mm 450*1150mm 450*1250mm
Welding time 0.01~9.99s adjustable
Net weight 800kgs 1000kgs 1200kgs 1400kgs
Space behind electrode 1150mm
Foreseen productivity: According to welding times and operator skills
Machine General Features:
1. Length, width and radian of welding area can be adjusted by change welding die.
2. European-model square high frequency vibration box, more reliable and stable in output
3. Single line or two lines continue welding, welding length can be ordered as special need.
4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.
5. CE rated machine; factory verified by SGS and BV;
6. Customer's site installation, training & maintenance available
7. Double Operator Control Press Pedals – on both sides of machine for ease of access and material positioning during welding of complex shapes of fabric
8. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
9.Customized work table dimensions, electrode holder dimensions, tooling
10.Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table
11. High frequency welding press pneumatically operated
12. C-Frame / G frame welded steel structure with integrated HF generator

Optional Features on Request:

1.Servo-motor; Touch screen programmable HMI / PLC
2. HF Filter unit available
3. Auto-high frequency tuning technology
4. High frequency generator on separate cabinet
5. Large space behind the welding tool - up to1500mm
6. 12. Precision straight bar welding up to 1500x50mm

Welded Samples

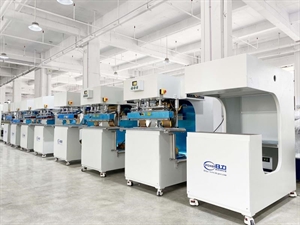

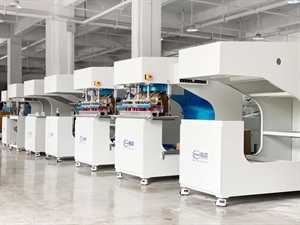

Work Shop Photos:



Machine Drawings
