12KW Hanging type high frequency tarpaulin welding machine

Model: HR-12KW-X
Scope Of Application: It is especially suitable on welding tarpaulin,sunshade,painting canvas,film curtain, Advertising ,spark protection cloth ,tent of truck, canvas of agricultural,canopy,canvas/digesters/ fabric.
Features: A machine with laser positioning cross line lamp, convenient to the work of conectting; roller are equipt both sides, avoid scratching material when feeding ; NL-5557 fire flower tube protection device, so that damage the mold and product reduced to the

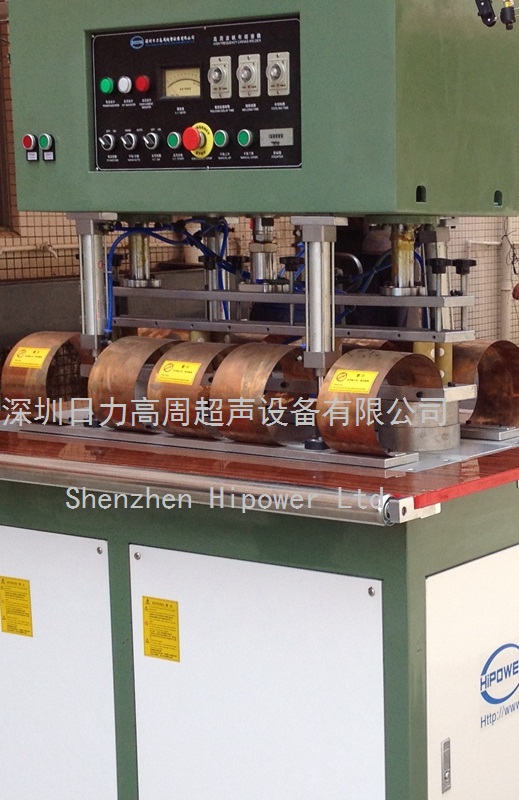

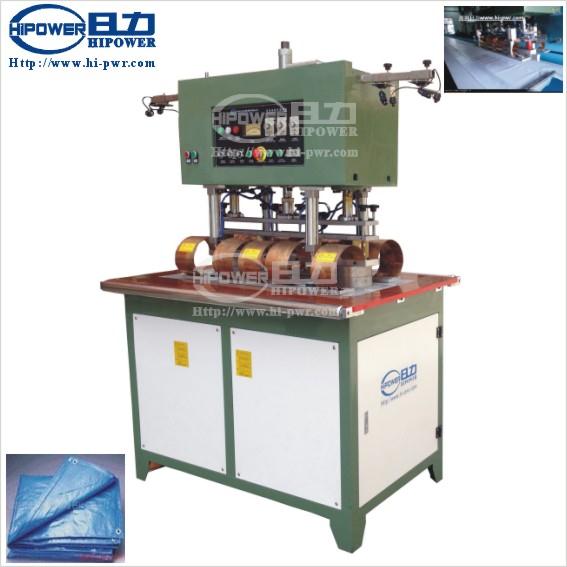

HR-12KW-Xsuspension type high frequency tarpaulin welding machine

High frequency welders for the production of tarpaulins, truck curtains, marquees, tents and large covers

1. Large format technical textiles,
2. Large Covers for trucks and boats
3. Membrane Curtains for trucks
4. Large Swimming pool covers
5. Temporary shelters

Our welders with power outputs up to 35KW and deep space behind the electrode provide advanced technological features for optimizing productivity and manufacturing quality. Stabilized and smooth regulated HF generator provides efficient power for al linear welding up to 1500mm in length and 50mm wide. All machines are completely safe for the operator and fully comply with CE regulations.

Specification of machine:

Model HR-8KW-X HR-12KW-X HR-15KW-X HR-25KW-X
Output Power of Generator 8000W 12000W 15000W 25000W
Anti-Spark System U.S.A. PL-5557 High sensitive anti-spark system
Voltage 3P AC 380V 50Hz-60HZ or customize
Frequency 27.12MHz +/- 0,6 %
Input power 15KVA 20KVA 25KVA 35KVA
Rectifier SILICON DIODE
Oscillation tube 7T69RB E3130 8T85RB 8T25RA
Max pressure 500kg 800kg 1000kg 1500kg
Operation mode Pneumatic Operated
Max gap of electrodes 100mm
Size of active horn 100mm
Upper Electrode (W*H*L) 50*50*900mm 50**50*900mm 50*50*1000mm 50*50*1000mm
Lowwer Electrode (W*H*L) Welding time 600x1150mm 700x1150mm 700x1150mm 800x1250mm 0.01~9.99s adjustable
Net weight 800kgs 900kgs 1200kgs 1400kgs
Foreseen productivity: According to welding times and operator skills

Application:

It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural, canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.

Machine General Features:

1. Separated head frame welded steel structure with independent HF generator.
2. European-model square high frequency vibration box, more reliable and stable in output.
3. Single line or two lines continue welding, welding length can be ordered as special need.
4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.

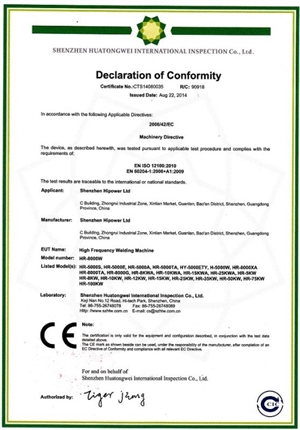

5. CE rated machine; factory verified by SGS and BV;
6. Customer's site installation, training & maintenance available
7. Customized work table dimensions, electrode holder dimensions, tooling
8 Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table
9 High frequency welding press pneumatically operated

Optional Features on Request:

1. HF Filter unit available
2. Auto-high frequency tuning technology
3. Precision straight bar welding up to 1500x50mm
4. Welding electrode temperature thermostat

Welded Samples:

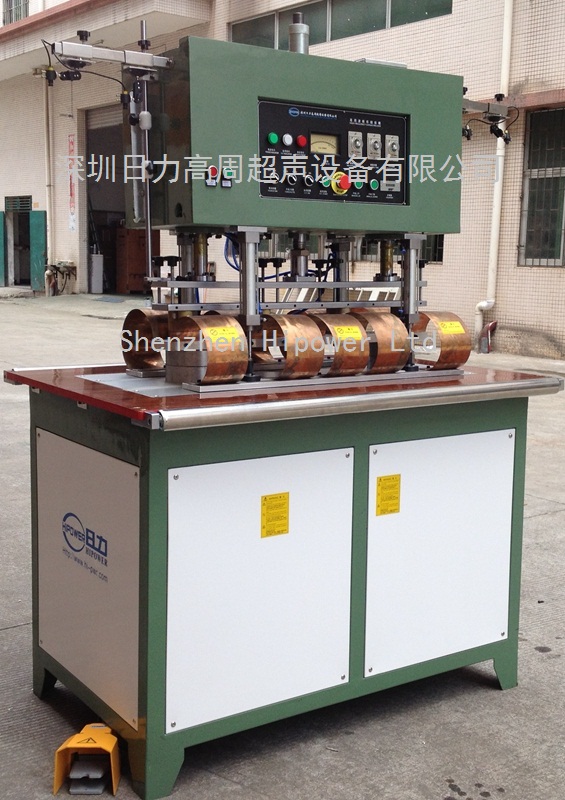

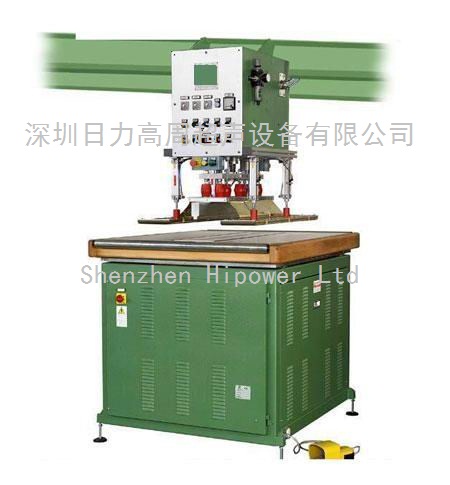

Machine Views:

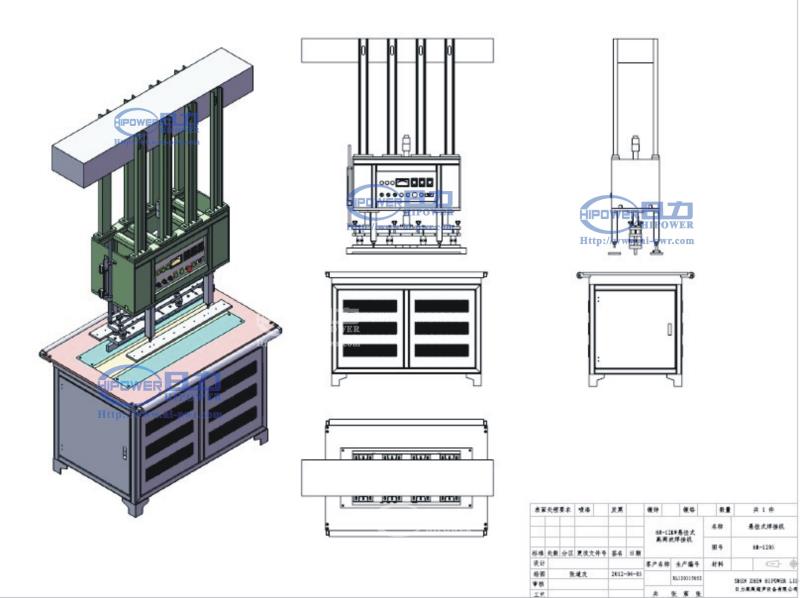

Machine Drawings:
