Product Display > High Frequency Welding Machine > Automotive Parts HF Welding Machine

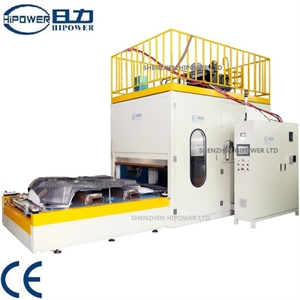

High Frequency Welding Machine for Automobile Carpet

Model: HR-15KW-2QT
Scope Of Application: for Automobile carpet which is suitable for PVC heelmat and automobile carpet.
Features: CE rated machine, hydraulic 20T pressure, automatic tools recognize function, multi-phase pressue self-adjusting, multi-phase HF auto-tuning; automatic parameters saving system.

High Frequenc Welding Machine for Automobile Carpet

High Frequency Welding Machine for Automobile carpet which is suitable for PVC heelmat and automobile carpet .
Automatic Car Carpet Welding Machine is specially designed for producing carpets for Audi A2; the Ford MONDEO;
Mercedes SLK; OPEL ASTRA, EPSILON, SAPHIRA; Porsche 982,996; Volkswagen COLORADO, POLO, GOLF, PASSAT NEW
BEETLE Chrysler, Skoda, Seat, Peugeot, BMW, Volvo and many other automobile models

1. Apply for welding the heel-mat on the carpet
2. Suitable for LHD & RHD car.
3. Customized service offered.
4. Hydraulic Pressure from 2 ton -5 ton.
5. PLC programmed

Machin Specification:

Model                                                       HR-15KW-2QT
Power                                                        15000W
Power Supply                                           380V 3P 50HZ
Frequency                                                 27.12MHz
Input power                                               25KVA
Rectifier                                                     SILICON DIODE
Oscillation tube                                        8T85RB
Max pressure                                           2000KG (Hydraulic)
Gap of electrodes                                   150MM
Moving distance of active horn             150MM
The size of upper electrode                  550*400MM
The size of buttom electrode                600*500MM

Machine General Features:
1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.\
12. High frequency welding press pneumatically operated

Optional  Features:
1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure

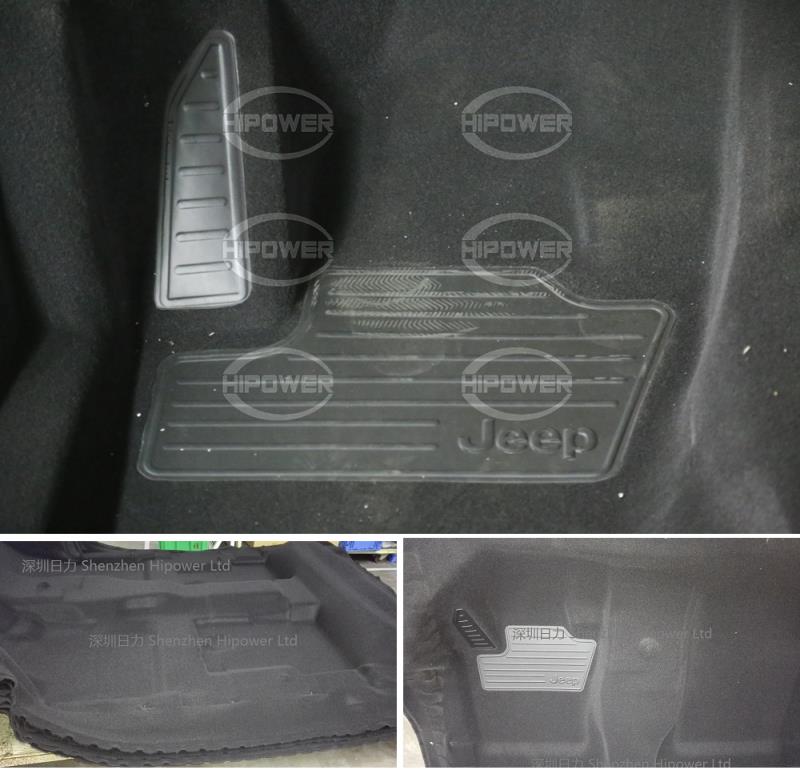

Sample view:

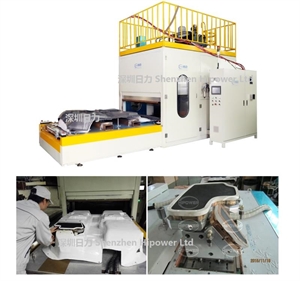

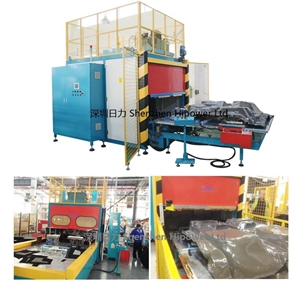

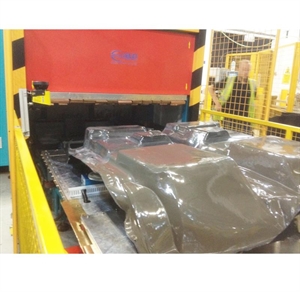

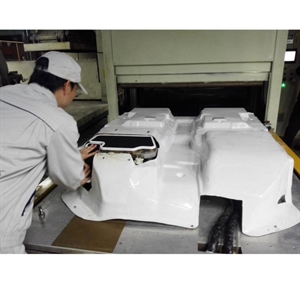

Machine Pictures:







Drawing:

Automobile carpet welding machines
