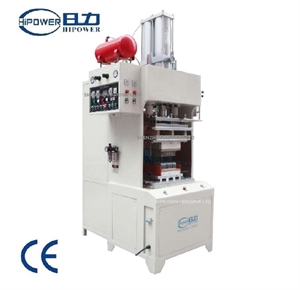

HR-10KW-20T Car Air Filter Welding Machine

Model: HR-10KW-20T
Scope Of Application: Air Filter Welding machine,15Tons welding pressue
Features: Air Filter Welding machine,15Tons welding pressue

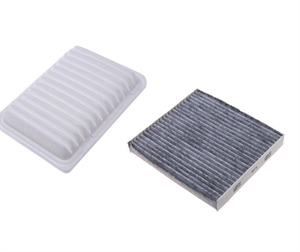

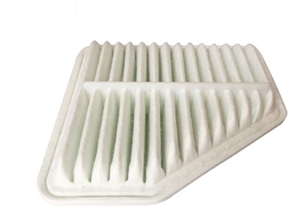

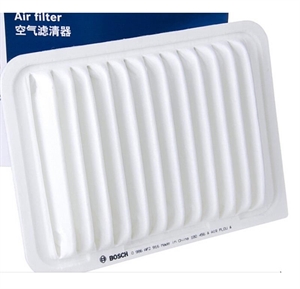

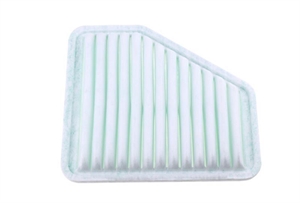

High frequency welding machine for car air filter

1. Special mechanical structure design can provide a stable and uniform pressure
2.It has high sensitive spark restraint electrocircuit that can check out the imbalance current
which can bring park and cut it off and alert the operator.
3. It is special designed and manufactured for making air filter base on the standard model of our HF welding and cutting machine


Machine General Features:
1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
12. High frequency welding press pneumatically operated

Model Item                                HR-10KW-20T
Frequency                                 27.12 MHZ
Power                                        10KW
Power Supply                            220V/380V, 50-60HZ
Input power                               15KVA
Range of temperature               30~200C Adjustic
Max pressure                             20 Ton
Oscillation Tube                         E3069
Arc Suppressing Tube               NL5557
Max Gap of Electrodes              500mm

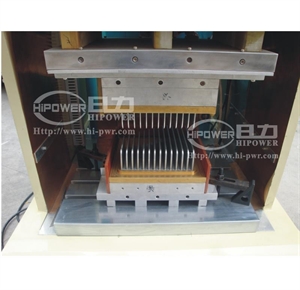

Upper Electrode                        350*500mm
Lower Electrode                        400*600mm
Operation mode                        Air & Hydraulic(two step pressurizing
Optional  Features:


1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure
