HY-2104A Semi-auto Tube Ends Curling Machine

Model: HY-2104A
Scope Of Application: 300mm diameter box curlingUsed for PVC, APET, PETG and other transparent plastic material cylinder edge curling. Curling cylinders with shapes of round, oval, trapezoidal and so on.
Features: Max product size: 300mm diameter

Product Features:
1. can meet edge curling application for cylinders with the different lengths (80-300mm), diameter (40-200mm), and material thickness (0.25-0.5mm); wonderful edge curling effect, no scratch, and exact even cylinder height, with error range: 0.05mm. Cylinder Edge Curling Machine have good performance that cylinder edge curled with exact even diameter and length
2. Hipower is the company specialized in producing and designing cylinder edge curling machines.
Industrial Fields Applied
PVC cylinder packing, PP cylinder packaging, APET cylinder packaging, PETG cylinder packaging, plastic cylinder packaging, paper cylinder packaging, paper material cylinder packaging, paper tube cylinder packaging, transparent plastic cylinder packaging.
Making ideal cylinders for packaging candy, gift, toy, stationery, umbrellas, packing gear, badminton, snack food and other products

Model

HY-2102

HY-2103

Work Positions

   2

3

Voltage

220V

220V

Pneumatic range

3-5kg/cm2

3-5kg/cm2

Diameter of air tube

8mm

8mm

Diameter of heating tube

210mm

Not available for this model

Fold diameter

30-200mm

30-200mm

Fold length

15-420mm

15-420mm

Prodcution speed

2-6sec/edge

8seco/edge

Weight

280kg



Overall dimension

1100*550*1700mm

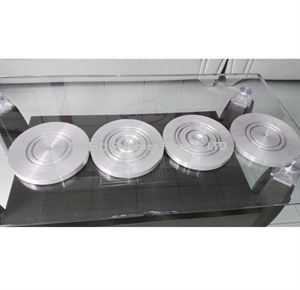

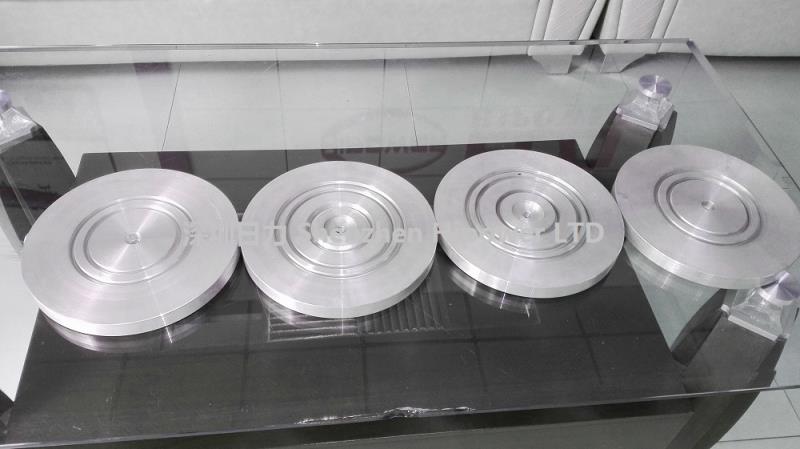

 Sample Views:

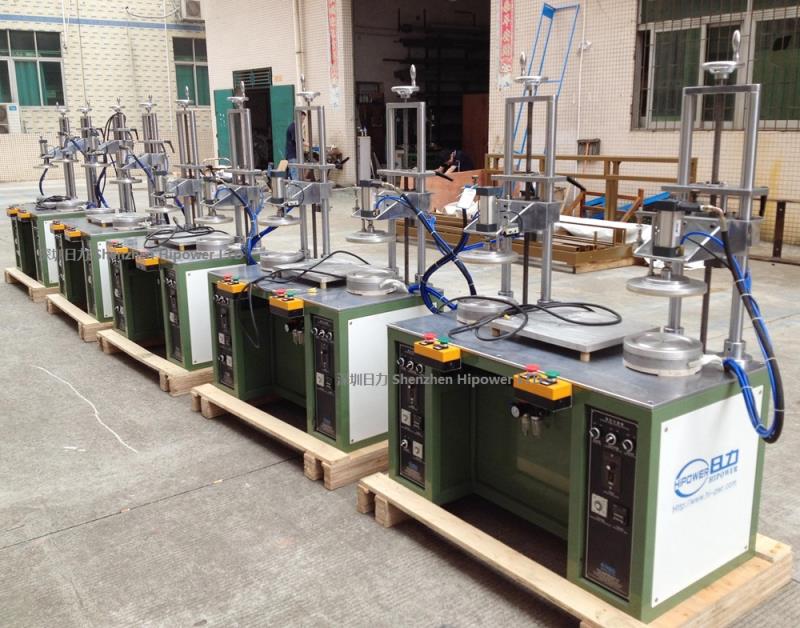

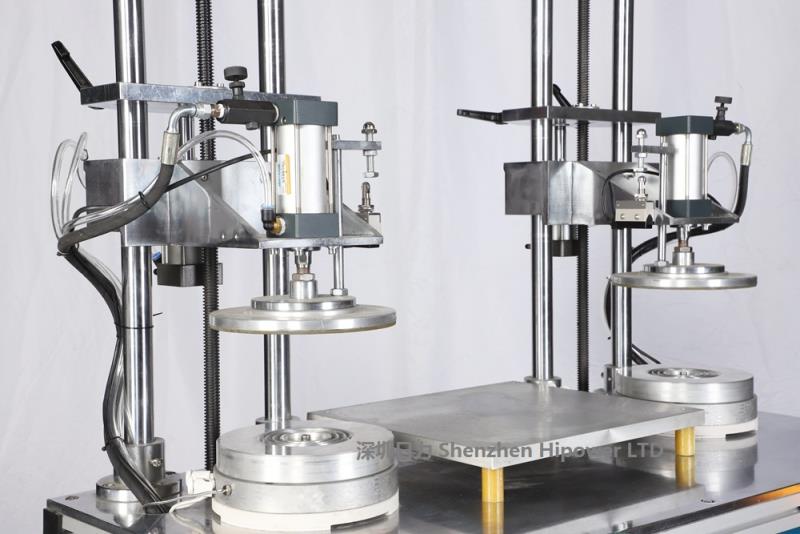

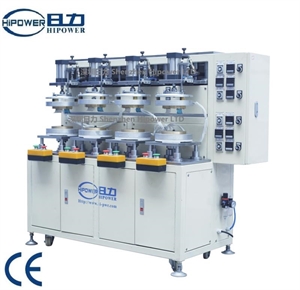

Machine Picture and Drawings:
