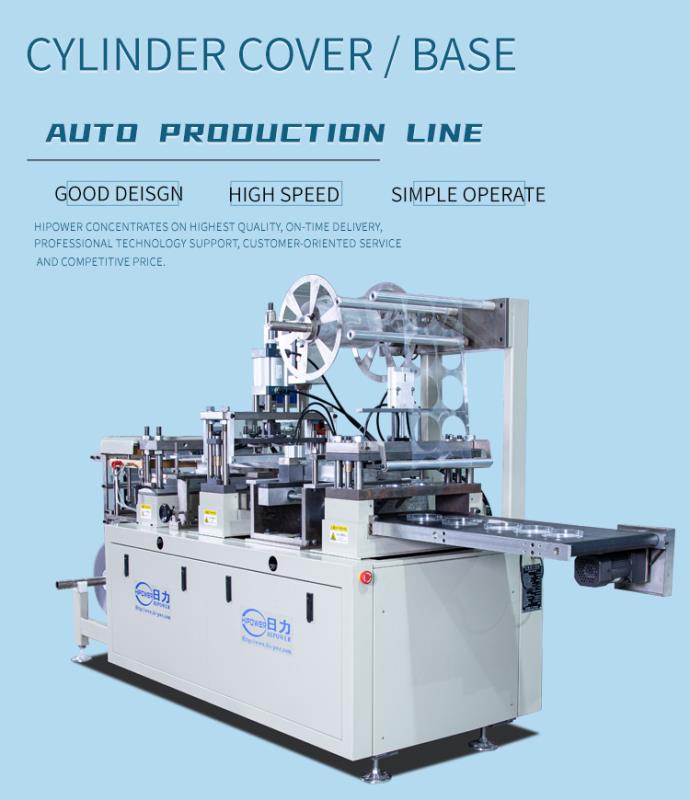

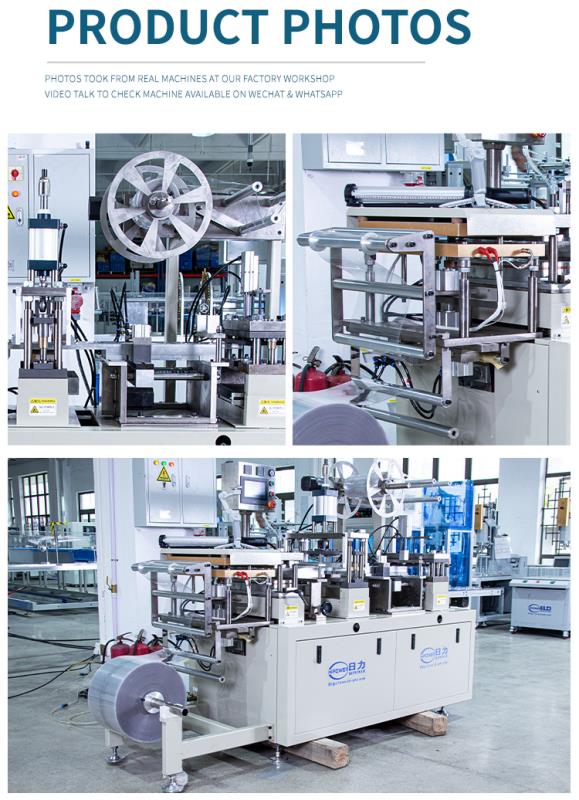

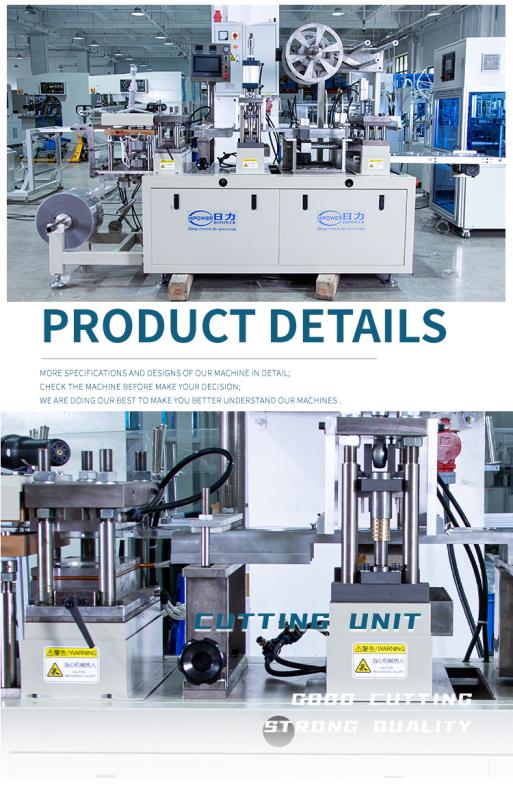

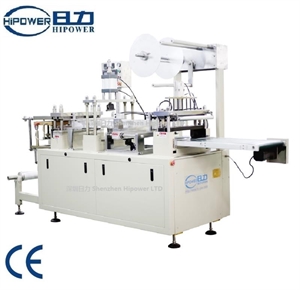

HY-450 Automatic Cylinder Box Lid Making Machine

Model：	HY-450

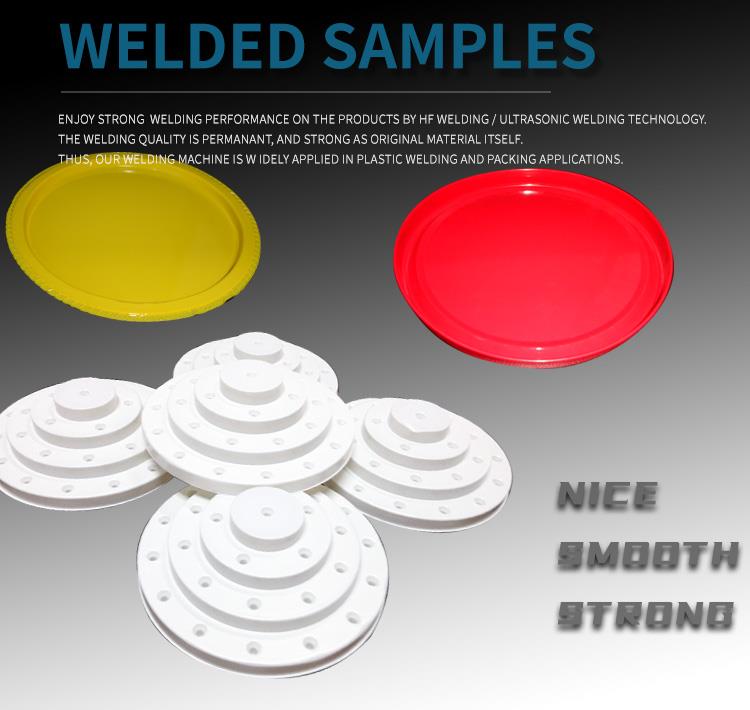

Scope Of Application：	For making cylinder box lid, bottom depression...
Features：	Automatic lid formig and punching machine, two in one machine,

This machine can use almost all kinds of plastic material, like PP, PVC, PET, OPP, PE and so on, can make lids with diamet

This machine can use almost all kinds of plastic material, like PP, PVC, PET, OPP, PE and so on,

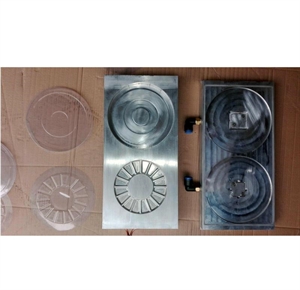

you can make lids with diameter 30-200mm by changing mould.

Main Features:

1. Compact Configuration, Calm Run, Easy Manipulation.

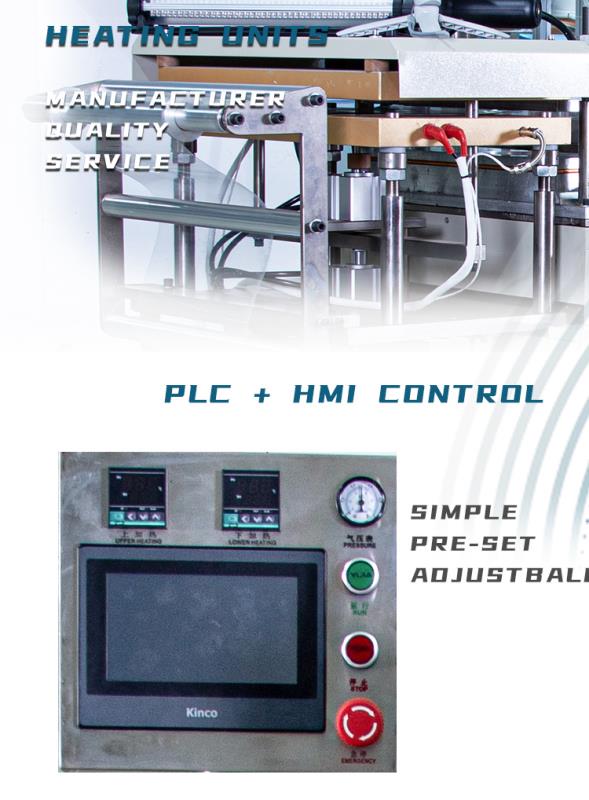

2. Sleeplessly Variable Frequency Speed Regulating, PC Circuit Control Panel.

3. Adjustable travel, convenient for replacing mould.

4. Can design any mould and feeder according to customers advice

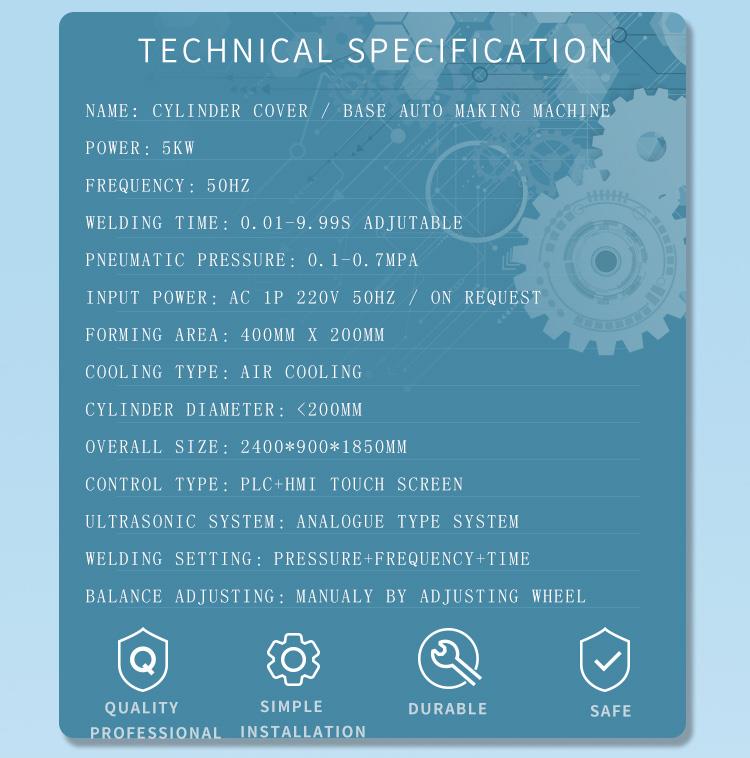

Model                         HY-350                   HY-450
Power                      380V 50HZ（220V 60HZ）
Power Consumption     3.5KW                     4.5KW
Water Pressure         0.2MPa                   0.2MPa
Water Consumption                  0.3m3/h(water cooling)
Air Pressure                           0.5-0.7MPa
Total Size:     （L*W*H） 1500×710×1560mm
Max. Forming Length     320mm                      420mm
Max. Forming Depth    Max.30mm    (Custom model Max.55mm)
Roll material width:     <330mm                    ＜430mm
