HF Soft Crease Folding Box forming machine for PET, PVC

Model: HR-15KWP-30T withPLC
Scope Of Application: Mainly use for APET, PETG, PP etc. environmental protection material soft crease box forming.This is a professional machine for soft crease box forming. It is also called clear box forming machine, plastic box forming machine, high frequency box forming m
Features: For foldable plastic packing box forming application, with oil flatten system. PLC program HMI control

HF Soft Crease Folding Box forming machine for PET, PVC

Application:
It is especially designed for Clear Packaging Boxes, soft crease box forming, PVC & PET folding box, Transparent Foldable plastic box making.
The plastic box can be made of PVC, PET, APET, PETG, GAG, and other Eco-friendly plastic films.
Depend on plastic material type:  Film Sheets  or  Plastic Roll, you can choose a semi-auto machine, or an automated machine.
Products:
1. PVC Box    2.  PET Box   3. PET-G Box
4. A-PET Box  5. GAG box     6. Other 30%PVC based Plastic packing box
Your customer will be happy to buy the products packed in clear / transparent plastic box, since they can know the products
clearly without opening the package.
On the other hand, the see-through packaging method attract attention of customers, young or old.
Model                           HR-8KWP-25T               HR-15KWP-30T
Output Power                   8000W                        15000W
Anti-Spark System   U.S.A.  PL-5557 High sensitive anti-spark system
Voltage                 3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency                                   27.12MHz  +/- 0,6 %
Input power                      15KVA                             25KVA
Rectifier                                    SILICON DIODE
Oscillation tube                     7T69RB                          8T85RB
Max pressure                           25T                            30T
Operation mode                        Pneumatic Operated
Max gap of electrodes                           200mm
Size of active horn                                 150mm
Upper Electrode (W*H*L)  500*700mm                      700*800mm
Size of Work Table (L*W)  500*700mm                      700*800mm
Mould Heating Temperature           30-200℃ Adjustable
Welding time                            0.01~9.99s adjustable
Net weight                        1500kgs                             1500kgs
Foreseen productivity:  According to welding times and operator skills

We developed this high frequency machine for the PVC &PET soft-crease boxes, also known as PVC folding box /Offset Printing Folding Boxes/PVC&PET foldable box ,etc.
This is an automatic high frequency soft line creasing machine with flattening system ;
It works with the transparent roll of PVC or PET , go through the flattening system first , before material creased by High Frequency Machine .
This machine makes the perfect creased line on the flat PVC & PET sheet according to the shape
of the box which makes the box easy to fold , fast to pack and elegant in appearance .with
perfect and clean cutting finish ,it easily goes with next production step : the side gluing machine .

Features:

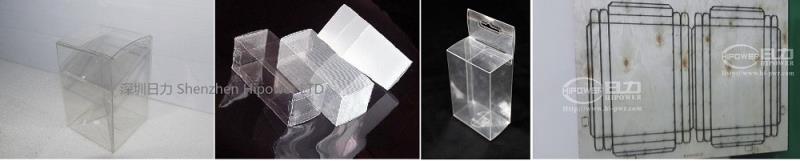

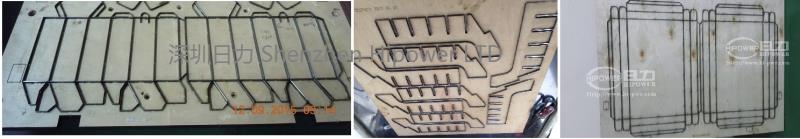

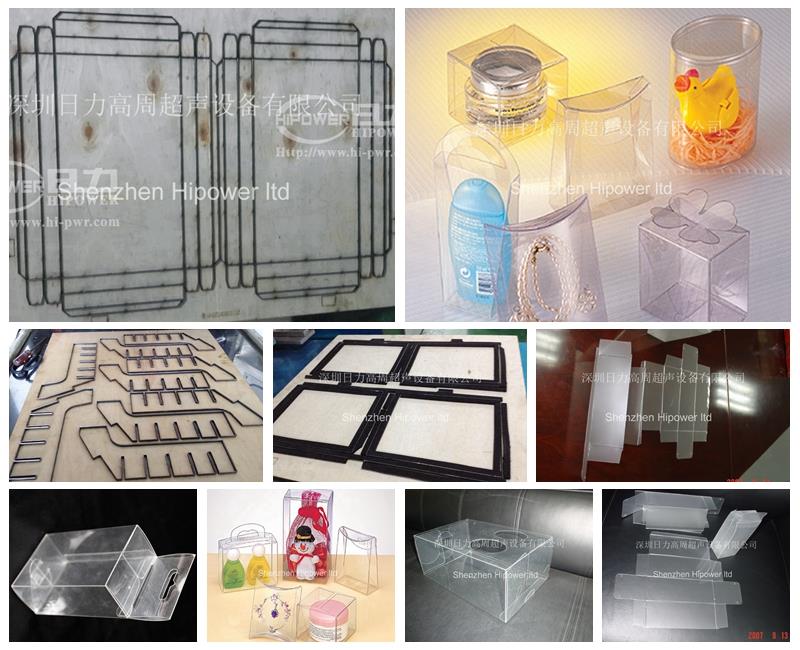

Sample Views:

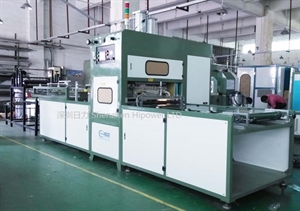

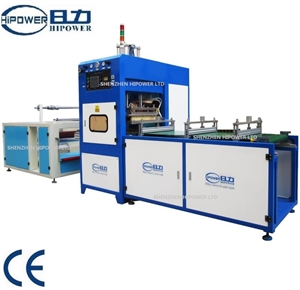

Machine Views:

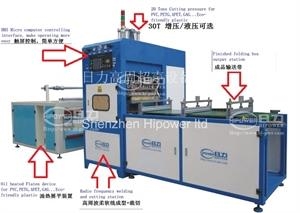

Machine Drawings:
