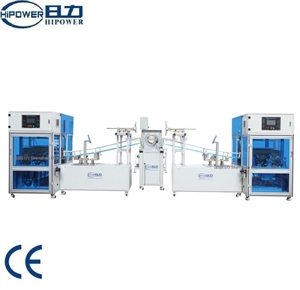

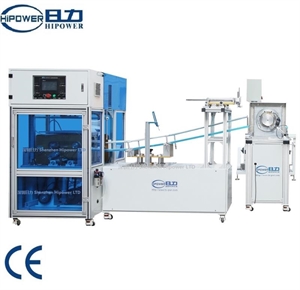

HY-200H30-2T Automatic Tube Box Forming and Curling Machine

Model：	HY-200H30-2T
Scope Of Application：	3-in-1 machine,auto forming & curling machine,PLC & Servo motor control,Robot feeding & Picking up products; for cylinders made of PVC, APET, PETG and other transparent plastic materials; Making ideal cylinders for packaging candy, gift, toy, statione
Features：	3-in-1 machine, Mainly applied for automatic cylinder edge curling for materials like PVC, APET, PETG, PP and other plastic; also known as plastic cylinder automatic curling machine,

HY-200H30-2T Automatic Tube Box Forming and Curling Machine

Application

Mainly applied for automatic cylinder edge curling for materials like PVC, APET, PETG, PP and other plastic; also known as plastic cylinder automatic curling machine, plastic cylinder automatic crimping machines, automatic paper cylinder curling machine, paper materials cylinder automatic crimping machines, automatic paper tube or cylinder curling machine, plastic cylinder crimping machines.

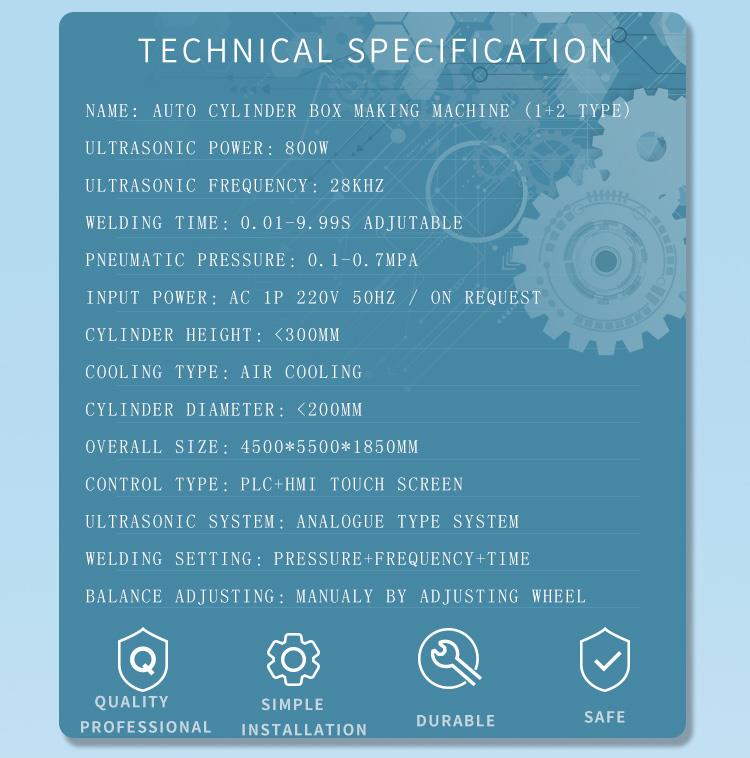

Technique Specification

Model HY-200H30-2T
Material PVC, PET, PP, PETG ,APET
Power 4500W
Dia. 50-200mm
Length 100-300mm
Film thickness 0.2mm-0.5mm
Productivity 2 pcs/second (on double side end curling)
Dimension 5500*5500*1600mm
Air pressure 0.5-0.7 MPa

Power supply 3P 5wires 380V/220V 50/60Hz

The manufacturer have the right to modify the design and parameter without prior notice

Features of
PLC man-machine interface operating system, servo motor drives; fast and accurate cylinder edge curling effect; cylinder body automatic feeding and automatic crimping; designed to meet cylinders of various measurement; Auto cylinder diameter and length adjustment available/

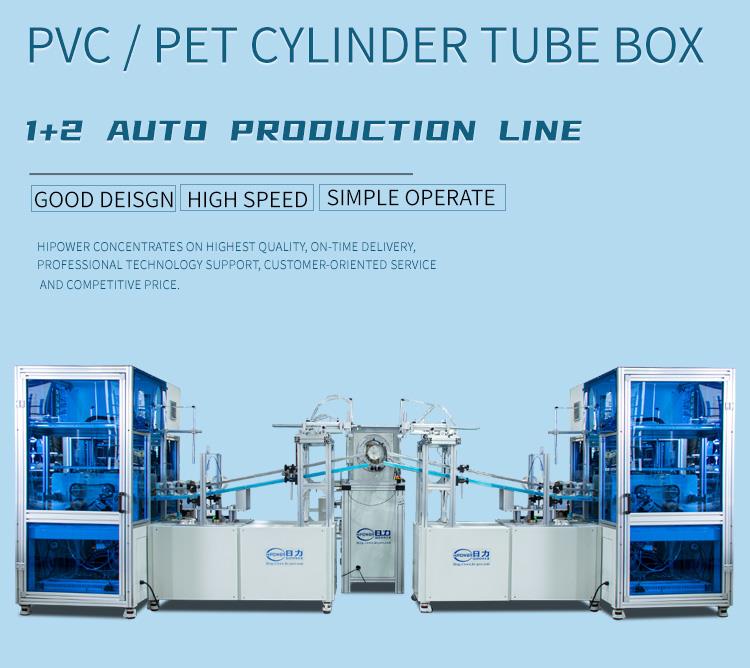

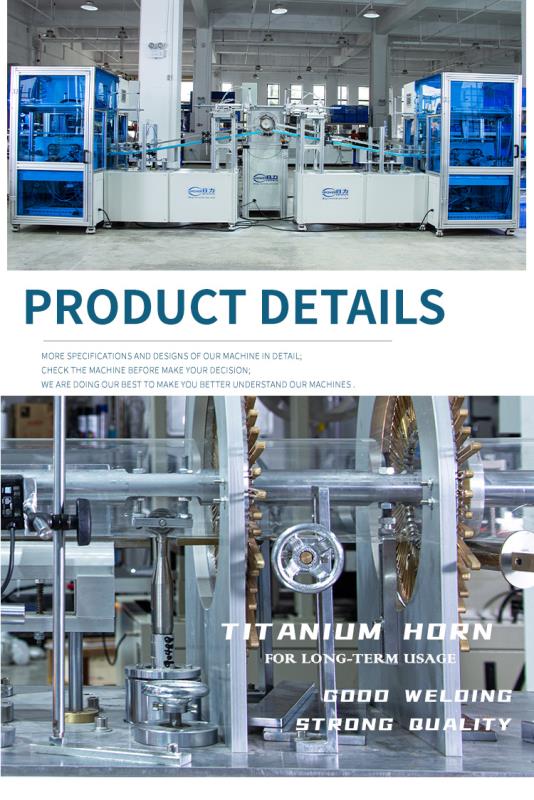

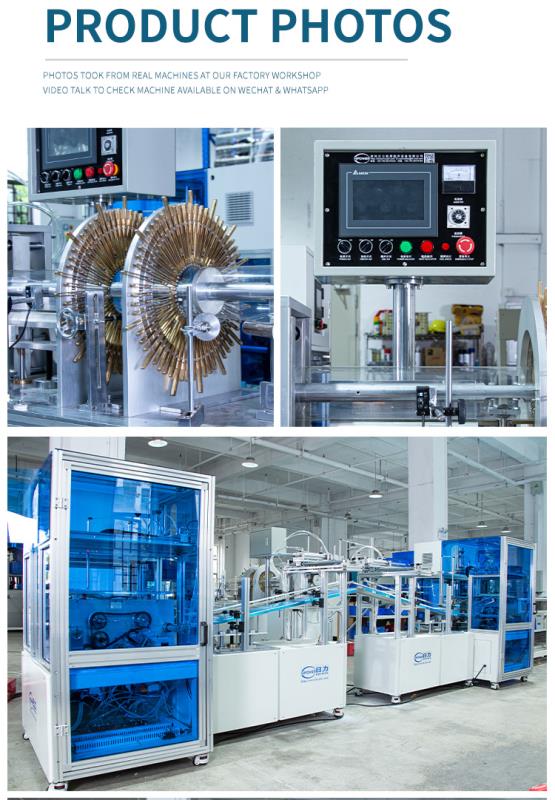

HIPOWER Full Automatic Cylinder forming and Edge Curling Machine with robot arm and have good performance that cylinder edge curled with exact even diameter and length; Full colsed visual studio to avoid secondary product contamination; cooperated with HIPOWER HY-200H or HY-200H1, automatic and no manual production line is realized.
Full Automatic Cylinder Edge Curling Machine adopts robotic manipulatos to feed or take materials automatically; can meet edge curling application for cylinders with the different lengths (80-300mm), diameter (40-200mm), and material thickness (0.25-0.5mm); wonderful edge curling effect, no scratch, and exact even cylinder height, with error range: ¡À0.05mm. Can construct production line with HIPOWER HY-2615(cylinder forming machine for painted sheets) and HY-200H(Full Auto Cylinder Forming Machine)
Hipower is the company specialized in producing and designing cylinder edge curling machines.

Industrial Fields Applied

PVC cylinder packing, PP cylinder packaging, APET cylinder packaging, PETG cylinder packaging, plastic cylinder packaging, paper cylinder packaging, paper material cylinder packaging, paper tube cylinder packaging, transparent plastic cylinder packaging. Making ideal cylinders for packaging candy, gift, toy, stationery, umbrellas, packing gear, badminton, snack food and other products

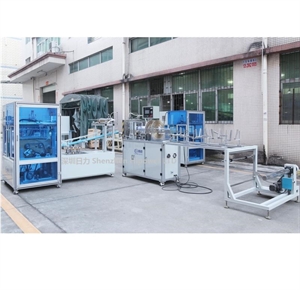

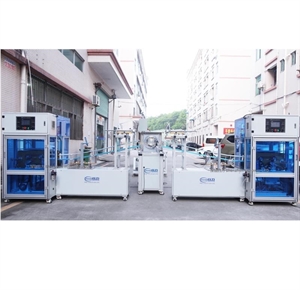

Sample Pictures:
