Product Display > High Frequency Welding Machine > Automatic Blister Packaging Machine

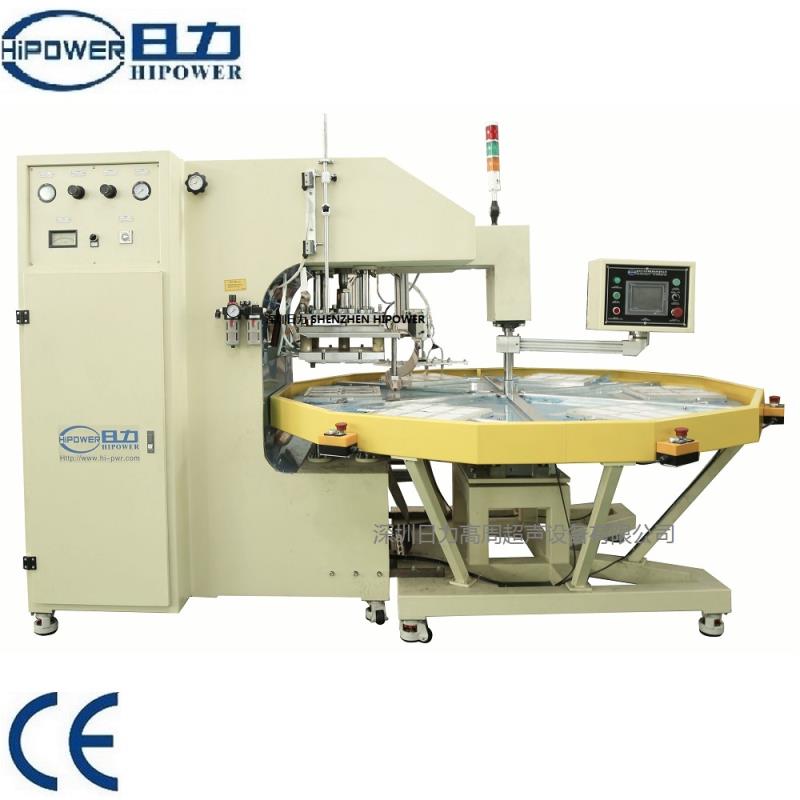

Automatic High Frequency Memory Card Packing Machine

Model: HR-10KW-6AC
Scope Of Application: Blister packing for memory card,bulbs,gift,hard tools,etc
Features: Auto turntable machine, with robot pick-up station, HF welding and cutting function.Arc suppressor 5557; precision splitter motor control makes rotating position precisely.

Automatic High Frequency Memory Card Packaging Machine


Application:
1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages,
But it is multipurpose machine, for it can be used for industry like PU leather cover for pad,, safety vests, reflective signs, inflatable toys, cosmetics, folding packing box, automotive, medical, rehabilitation, packaging, recreation, textile and clothing, reflective garments,.etc.
The HF blister packaging welder series have HF power outputs from 5KW to 35KW 30kW for multi-cavity production loads and specialized products.

Technical parameter:

MODEL:                                     HR-8000W-6AC      HR-10KW-6AC            HR-12KW-6AC           HR-15KWE-6AC
H.F POWER:                                   8000W                   10000W                  12000W                   15000W
SUPPLY POWER:                                              380V 50/60HZ
FREQUENCY:                                27.12MHZ                      13.56MHZ
INPUT POWER:                               5KVA                    18KVA                      20KVA                       25KVA
RECTIFIER:                                                         SILICON DIODE
OSCILLATOR:                                 7T69RB                 E3069                      E3130                        8T85RB
MAX PRESSURE:                             500kg                    500kg                       800kg                        800kg
THE GAP OF ELECTORDE:                                200mm
THE SIZE OF ACTIVE HORN:                             150mm
THE SIZE OF UP MOULD:             300*400mm           300*400mm              350*450mm              400*500mm
THE SIZE OF DOWN MOULD:       350*450mm            350*450mm              400*500mm              400*500mm

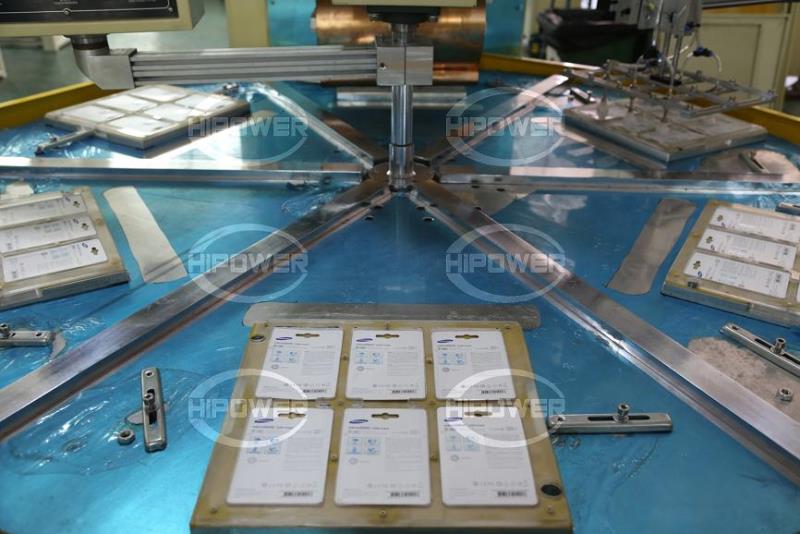

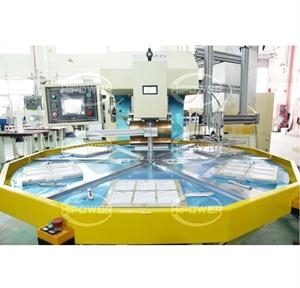

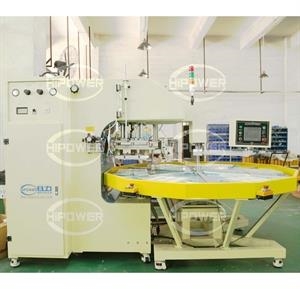

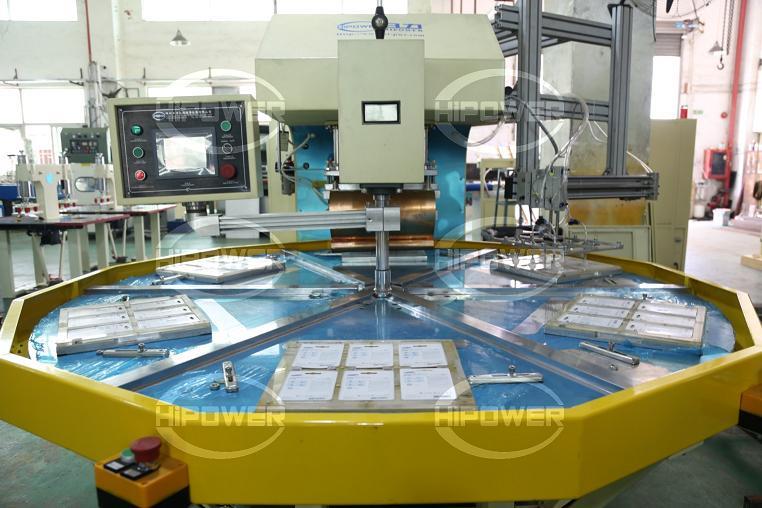

Machine Views:
