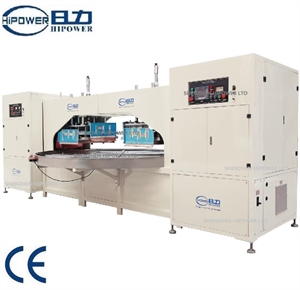

HR-25KW-4AC Automatic Double Heads Turn-table welding machine
| Model： | HR-25KW-4AC |
| Scope Of Application： | Application : Dust-free workshop filter cotton welding, air filter cotton welding, air filter series products welding, etc. |
| Features： | Two machine heads, four-station automatic turntable, PLC control system,equipped with automatic high-frequency adjustment |
PVC Fabric Carpets Welding Machine

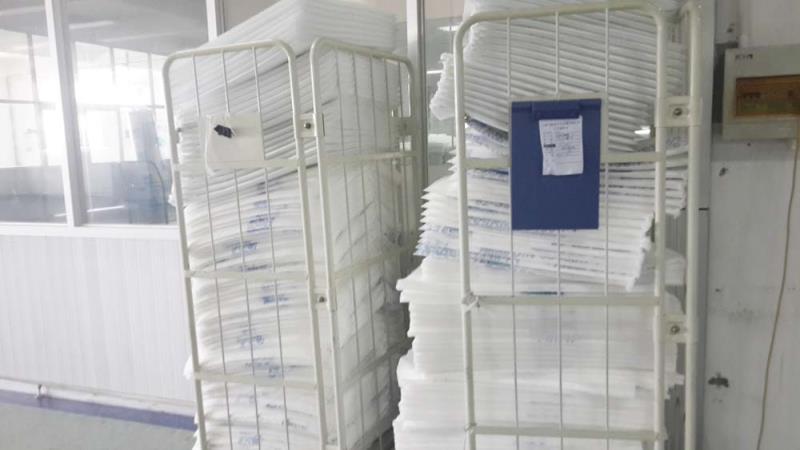

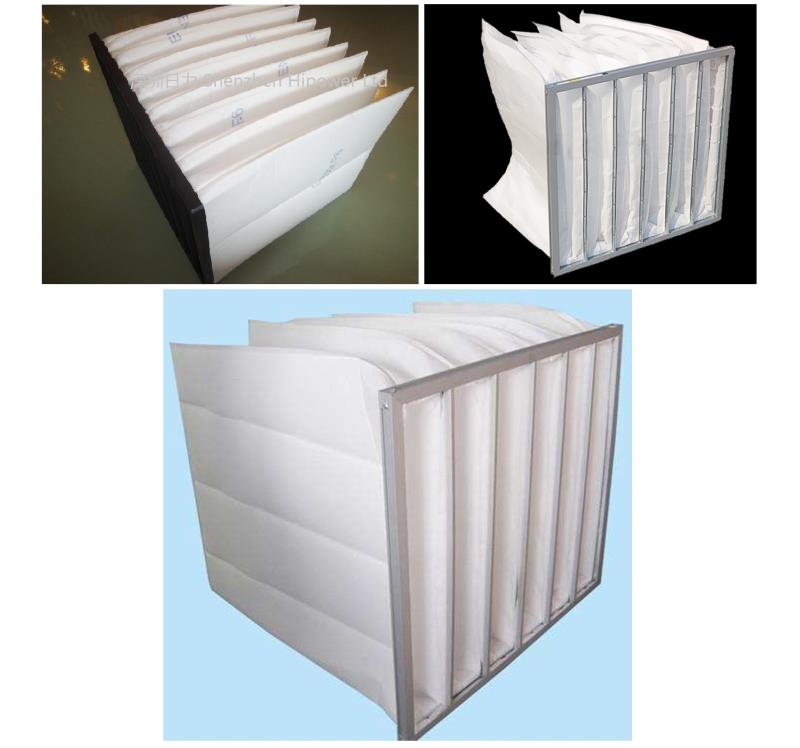

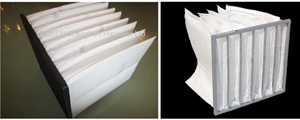

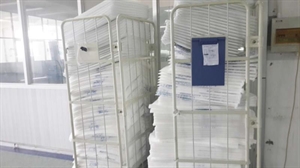

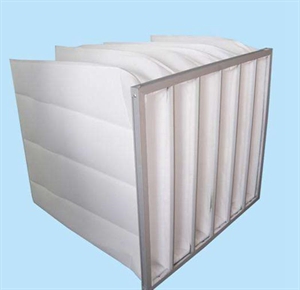

Application : Dust-free workshop filter cotton welding, air filter cotton welding, air filter series products welding, etc.
| Model | HR-25KW-4AC | |||||
| Power | 25KW | |||||
| Voltage | 220V/380V 50/60HZ | |||||
| Frequency | 27.12MHZ | |||||
| Input power | 8KVA | |||||
| Rectifier | SILICON DIODE | |||||
| Oscillation tube | 7T85RA | |||||
| Max pressure | 2000kg BY Pneumatic | |||||
| Gap between electrodes | 150MM | |||||
| The moving distance of active horn | 150MM | |||||
| Size of upper electrode | 750*750MM | |||||
| Size of lowwer electrode | 750*750MM | |||||
| Spark protection | N5557 high sensitivity | |||||
| Welding time | 0~10S Adjustable | |||||
| Control System | PLC | |||||
| Standard | CE | |||||

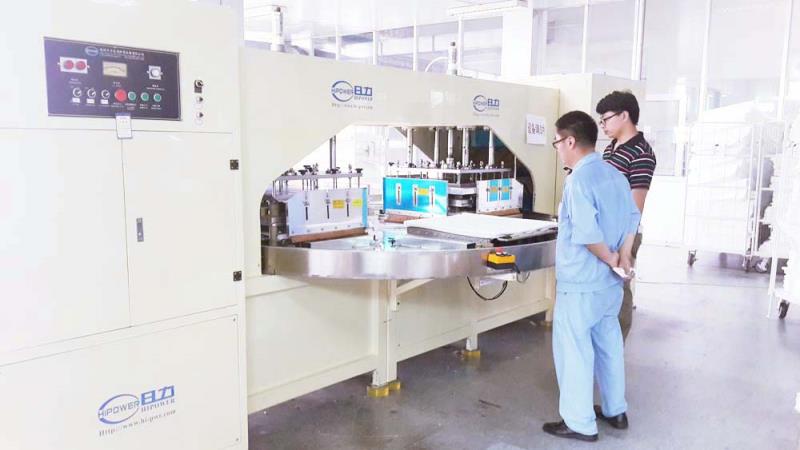

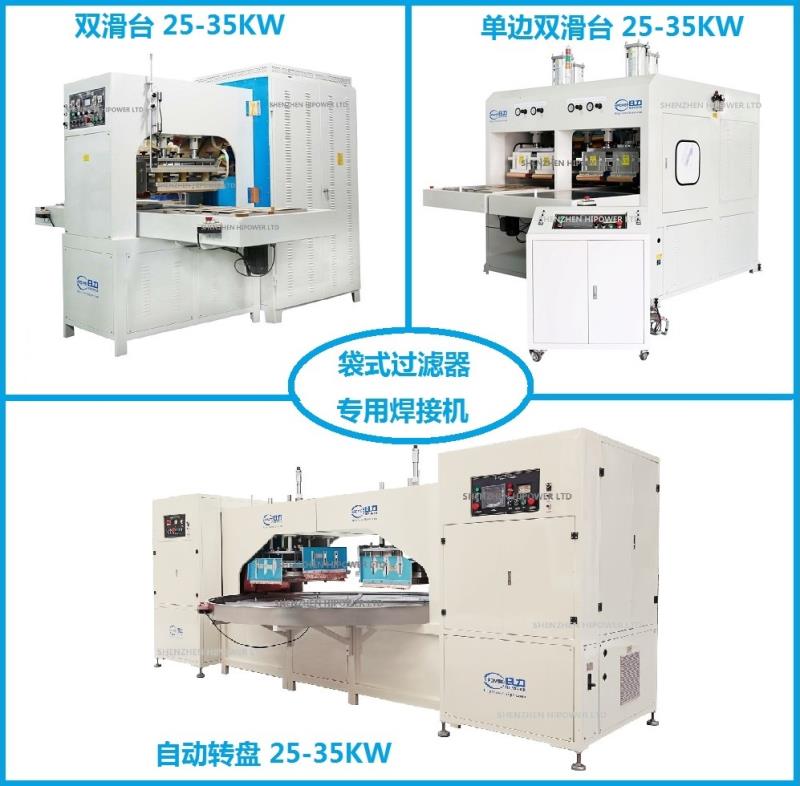

Machine Pictures:
