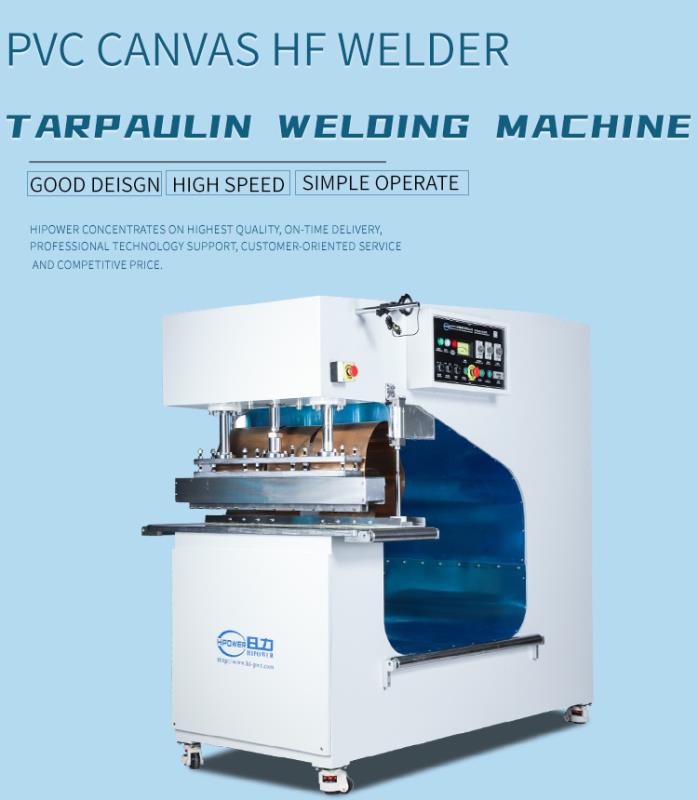

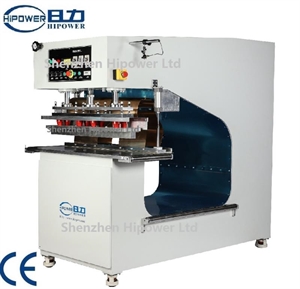

HF Welder for Truck Cover, PVC Cover
| Model： | |
| Scope Of Application： | for Canvas/Tents/Tarpaulin/PVC Membrane and Fabric:Applied for Tents, Canvas, Tarpaulin, PVC membrane, PVC Fabric,truck cover,agricultural canvas, canopy,membrane structure, tent house,gas storage bag,flexi-tank,inflatable boat,inflatable castle,stretc |
| Features： | Enjoy big free space behind electrode; featuered with deep and wide material-feeding tankEuropean standard high-frequency oscillatory square box, more reliable and Stable in output. Adopting high sensitive 5557 anti-flash device to avoid damaging the |
High frequency welders for the production of tarpaulins, truck curtains, marquees, tents and large covers.
Application:
High Frequency Welding Machine for Canvas/Tents/Tarpaulin/PVC Membrane and Fabric:
Applied for Tents, Canvas, Tarpaulin, PVC membrane, PVC Fabric,truck cover,agricultural canvas, canopy,membrane structure, tent house,gas storage bag,
flexi-tank,inflatable boat,inflatable castle,stretched ceiling structures and other PVC based plastic welding application
Features:

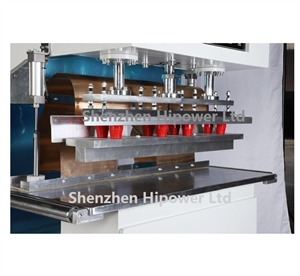

Enjoy big free space behind electrode; featuered with deep and wide material-feeding tank
European standard high-frequency oscillatory square box, more reliable and Stable in output.
Adopting high sensitive 5557 anti-flash device to avoid damaging the machine and mould.
Laser-light material position guiding device;
Ground-press platen is behind welding mould to protect workers from hurt hands.
Input air-filtering design to protect inside electronic parts

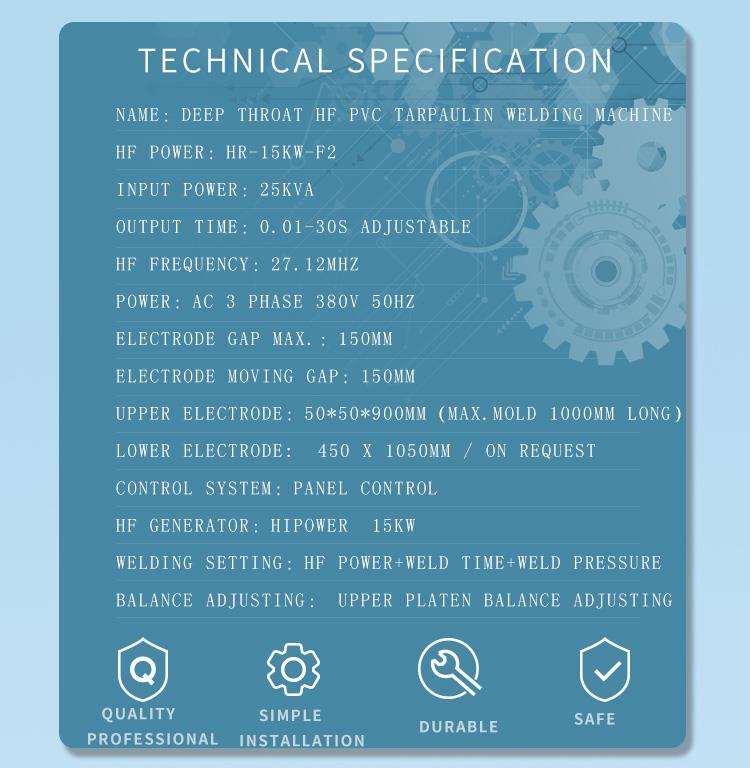

Technical Specifications:
| Model | HR-8KW-F2 | HR-12KW-F2 | HR-15KW-F2 | HR-25KW-F2 |
| Output Power of Generator | 8000W | 12000W | 15000W | 25000W |
| Anti-Spark System | U.S.A. PL-5557 High sensitive anti-spark system | |||
| Voltage | 3P AC 380V 50Hz-60HZ or customize | |||
| Frequency | 27.12MHz +/- 0,6 % |
|
||
| Input power | 15KVA | 20KVA | 25KVA | 35KVA |
| Rectifier | SILICON DIODE | |||
| Oscillation tube | 7T69RB | E3130 | 8T85RB | 8T25RA |
| Max pressure | 500kg | 800kg | 1000kg | 1500kg |
| Operation mode | Pneumatic Operated | |||
| Max gap of electrodes | 150mm | |||
| Size of active horn | 150mm | |||
| Upper Electrode (W*H*L) | 50*50*800mm | 50**50*900mm | 50*50*900mm | 50*50*1000mm |
| Size of Work Table (L*W) | 450*1050mm | 450*1150mm | 450*1150mm | 450*1250mm |
| Welding time | 0.01~9.99s adjustable | |||
| Net weight | 800kgs | 1000kgs | 1200kgs | 1400kgs |
| Space behind electrode | 1150mm | |||
| Foreseen productivity: | According to welding times and operator skills | |||
