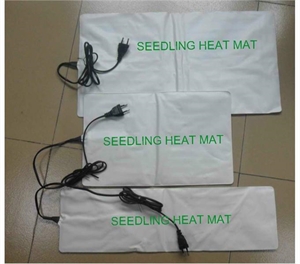

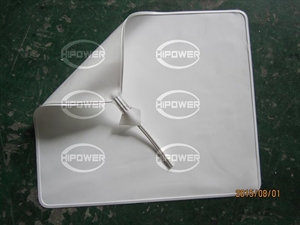

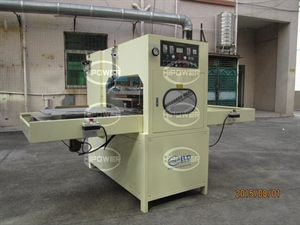

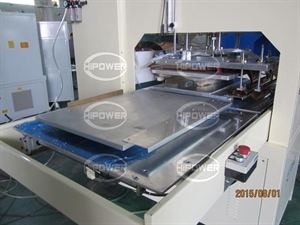

PVC heat mat welding machine
| Model： | HR-12KWAT |
| Scope Of Application： | Applied for high frequency blister packaging for double-sides, soft crease box/case making, inflatable toy, raincoat and relatives, or any PVC and PVC contained 30% up to |
| Features： | 1.manual high frquency shuttle way welding machine2.automatic high frequency shuttle way welding machine3.manual high frequency square plate two working positions welding machine4.automatic high frequency square plate two working stations |
PVC heat mat welding machine
Application:
Application:Adopt high frequency technoloy to crease a high-frequency electromagnetic field.
Internal molecules of welding products move in a very high speed inside the electromagnetic field.
Internal temperature of two pieces product become higher and then join together like a single one.
HF welding machine a good for welding plastic blister+blister, blister+papercard which coated with plastic.
It is also called as high frquency clamshell sealing machine or high frquency plastic packaging machine.
This machine is also used for many kinds of plastic welding and embossing...
Is widely used in packaging stationery,MP3,MP4,clamshell packaging for toothbrush,toys,gift,hardware,Udisk...
Also used for embossing trade Mark,Sticking Label, Raincoat,Umbrella,Traveling/Hand Bag,Name Plate, Inflatable Toy...
Features:
There are six kinds of high frequency welding machine for choose
1.manual high frquency shuttle way welding machine
2.automatic high frequency shuttle way welding machine
3.manual high frequency square plate two working positions welding machine
4.automatic high frequency square plate two working positions welding machine
5.manual high frequency turntable style multi-working positions welding machine
6.automatic high frequency turntable style multi-working positions welding machine
Technical parameter:
| Model | HR-4000AT | HR-5000AT | HR-8000AT | HR-10KWAT HR-12KWT |
| Power | 4000W | 5000W | 8000W | 10000W 12000W |
| Voltage | 220v/380V 50/60HZ | |||
| Frequency | 27.12MHz | |||
| Input power | 7KVA | 8KVA | 15KVA | 18KVA 20KVA |
| Rectifier | silicon diode | |||
| Oscillation tube | 7T62RB | 7T85RB | 7T69RB | E3069 E3130 |
| Max pressure | 200kg | 250kg | 280kg | 300kg 400kg |
| Operation mode | pneumatic | |||
| Max distance of electrodes | 200mm | |||
| The moving distance of active horn | 150mm | |||
| The size of upper electrode | 300*500mm | 400*600mm 500*700mm | ||
| The lowwer of lowwer electrode | 350*600mm | 500*800mm 600*800mm | ||
| The range of tempreture | 30~200 oC adjustable | |||
| Welding time | 0---10sdjustable | |||
| Productivity | < 3500times/8hours | |||
| Net weight | 280kg | 330kg | 360kg | 420kg 560kg |
|
Overall dimension |
1720*1100*1450 | 1720*1100*1500 | 1800*1200*1600 |
2500*1500*1700 |
