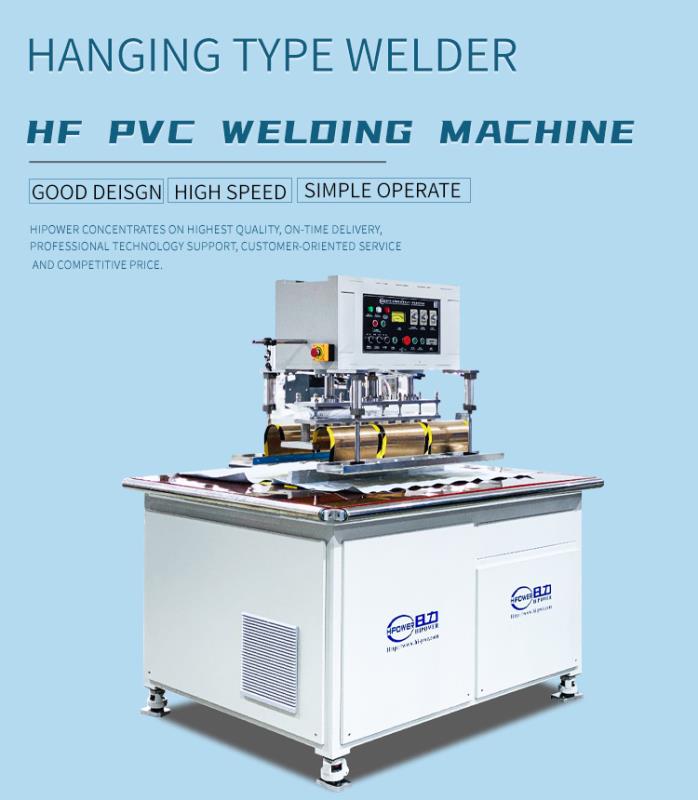

HR-15KW-X Hanging Type High Frequency Welding Machine

Model: HR-15KW-X
Scope Of Application: used to weld PVC tarpaulin,sunshade,painting canvas,film curtain, Advertising ,spark protection cloth ,tent of truck, canvas of agricultural,canopy,canvas/digesters/ fabric.
Features: Hanging Head,suspend welder with hanging beam,free operation space at all direction,

HR-15KW-X Hanging Type High Frequency Welding Machine


High frequency welders for the production of tarpaulins, truck curtains, marquees, tents and large covers

1. Large format technical textiles,
2. Large Covers for trucks and boats
3. Membrane Curtains for trucks
4. Large Swimming pool covers

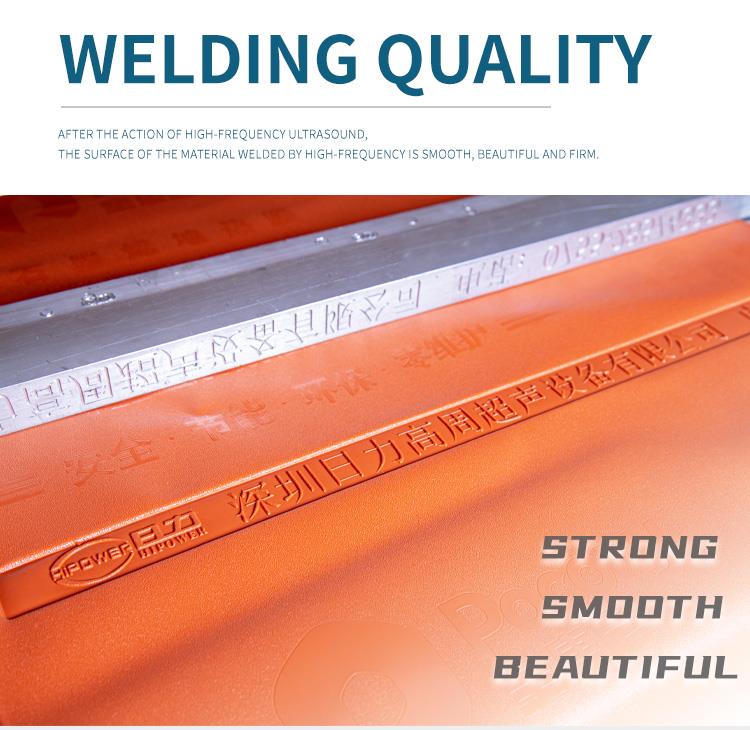

5. Temporary shelters Welded Samples:

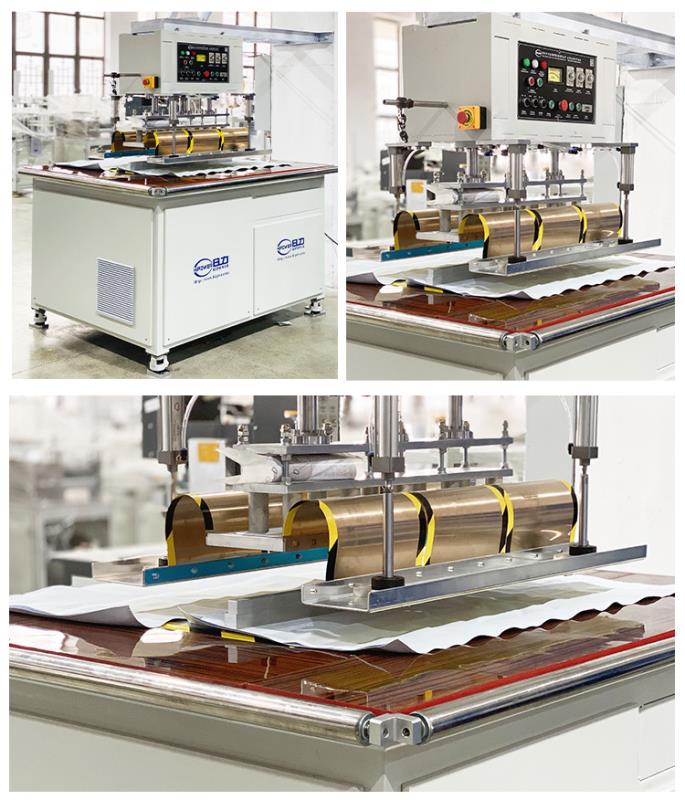

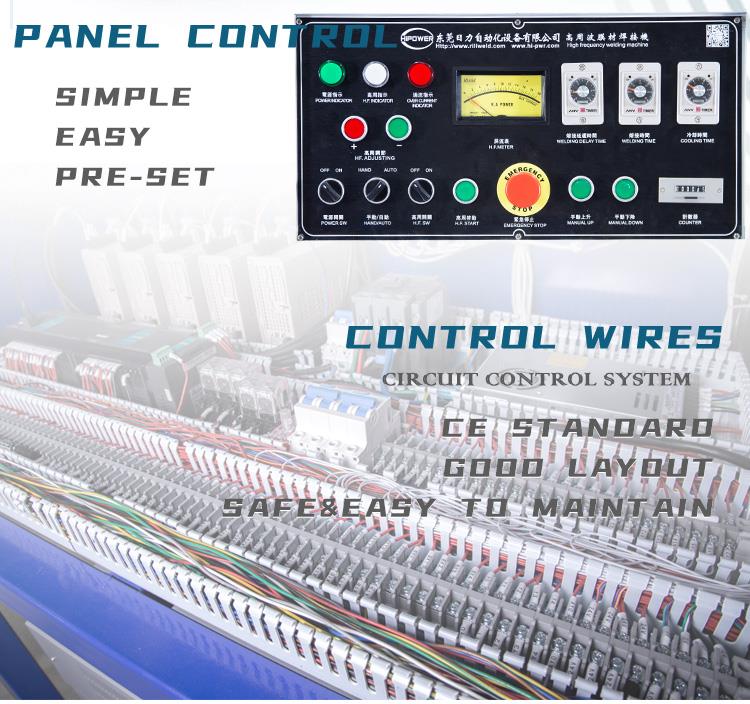

Machine Views:

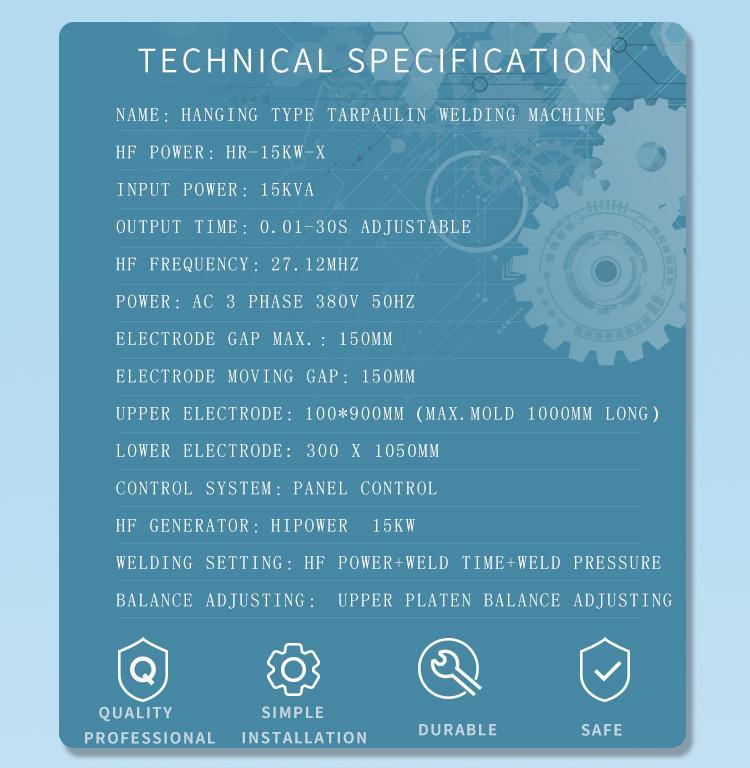

hnical paramters:

Model HR-15KW-X HR-8KW-X
Output Power of Generator 15KW 8KW

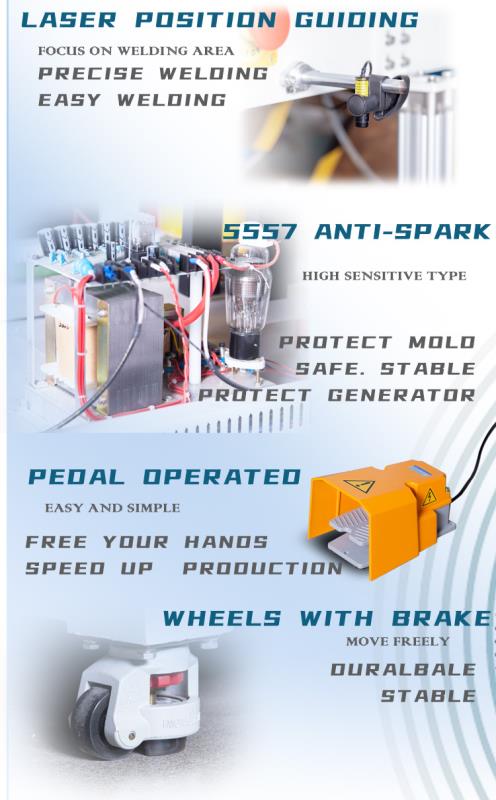

Anti-Spark System U.S.A. PL-5557 High sensitive anti-spark system
Voltage 3P AC 380V 50Hz-60HZ or customize
Frequency 27.12MHz
Input power 25KVA 15KVA
Rectifier SILICON DIODE
Oscillation tube 8T85RB 7T69RA
Max pressure 1000kg 800kg
Operation mode Pneumatic Operated
Max gap of electrodes 350mm

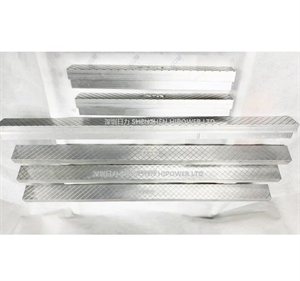

Size of active horn

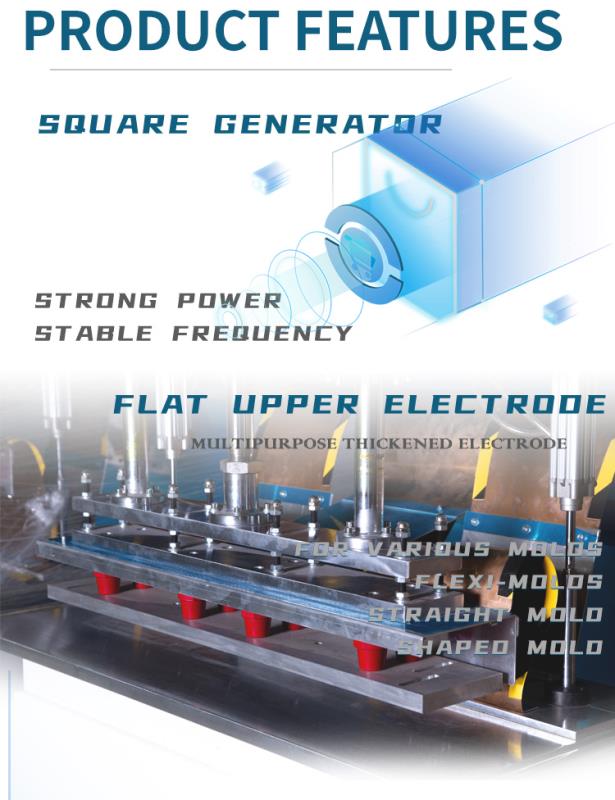

Upper Electrode (W*H*L) 200*300mm 200*300mm
Welding time 0.01~9.99s adjustable
Net weight 1300kgs 1400kgs
Space behind electrode 1500mm
Foreseen productivity: According to welding times and operator skills




Machine Drawings:


Digg good
(0)
0%
Digg bad
(0)
0%

Previous Products: No Products

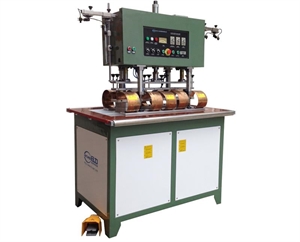

Next Products: HC-3215 Special Ultrasonic Plastic Welding Machine
