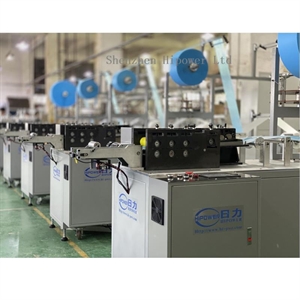

Automatic Flat Face Mask Utrasonic Welding Machine

Model：	HC-2020
Scope Of Application：	Flat Face Mask Ultrasonic sewing and cutting machine, is applied for flat type face mask from 1 to 4 ply PP non woven and filtration material. Based on different grade of raw material,the finished product can reach N95, FFP2 and other standard. The machin
Features：	The machine is stable, fast and easy to operate.

Automatic Flat Face Mask Utrasonic Welding Machine

Flat Face Mask Ultrasonic sewing and cutting machine, is applied for flat type face mask from 1 to 4 ply PP

non woven and filtration material. Based on different grade of raw material,the finished product can reach N95,

FFP2 and other standard. The machine is stable, fast and easy to operate.

Specification:

Model	HC-2020
Plastic Film	Non Woven, PVC, PET, PP, PE,ABS...
Voltage	AC 220V
Ultrasonic Power	4KW
Face Mask Size	175x95mm
Control	PLC+HMI Touch Screen
Frequency	20KHZ
Horn	Made from Steel
Air Pressure	0.4Mpa to 0.6Mpa
Speed	80pcs- 120 pcs / Min
Color	International Standard 1C Grey
Dimension of Line	3150(L)800(W)1850(H)mm G.W.:600KGs
Certificate	CE

You can combine this machine with ear loop welding machine, to produce different type of flat face mask.

Workflow as: the non-woven material , after unwinding automatically, pulled forwarder by wheel units, non-

woven will in process of edges folding and wrapping; Nose Wire in roll shape will be unwinded, cutted and

loading into wrapped non-woven cloth; ultrasonic units will seal both ends and side ends, then the cutting unit

will cut request face mask shape; the products moving to conveyor belt stations

Features of Machine:
High Efficiency:
More fast in less time
Production speed： 80pcs- 100 pcs / Min

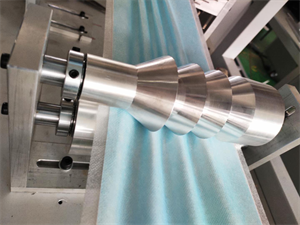

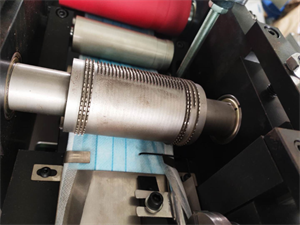

More Details of our machine:

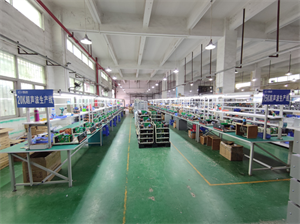

About US:
