HR-35KW High frequency welder for water bed/inflatable sofa

Model: HR-35KW
Scope Of Application: Application: Toy stationery industry such as: gift bag, basketball embossing,phase thin, album, name card, welding, mouse pads, lens box welding&embossing, etc; Leather leather bags industry such as: leather, leather welding, embossing, fusing and towel b
Features: Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine.

HR-35KW Mattress,Water Bed High Frequency Welding Machine

Character of machine:

1. Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine.

2. Double-direction automatic slipway,come-and-go or continuous delivering the mould,accurate-orientation, error + 20 um.3. Adjustable cutting pressure 1-50 tons,stable and realible in output,firm in structure.

3. Adopting high sensitive anti-sparkle device NL5557  to avoid damaging the mould efficiency.

 Technical Parameters:

Model
HR-15KW
HR-25KW
HR-35KW
HR-50KW
Power
15000W
25000W
35000W
50000W
Power supply
380V   50/60HZ
Frequency
13.56MHZ
Electric power
25KVA
35KVA
50KVA
70KVA
Prectifier
SILICON DIODE
Vibrational tube
8T85RB
8T25RA
8T87RB
E3116
Maxpressure
1000kg
1000kg
1500kg
2000kg
Max gap of electrodes
100MM
Size of active horn
100MM
Size of upper electrode
700*900mm
800*1000mm
1000*1800mm
 1200*2100mm
Size of down electrode
800*1200mm
1000*1400mm
1200*2000mm
1200*2200mm
Welding time
0~10S Adjustable

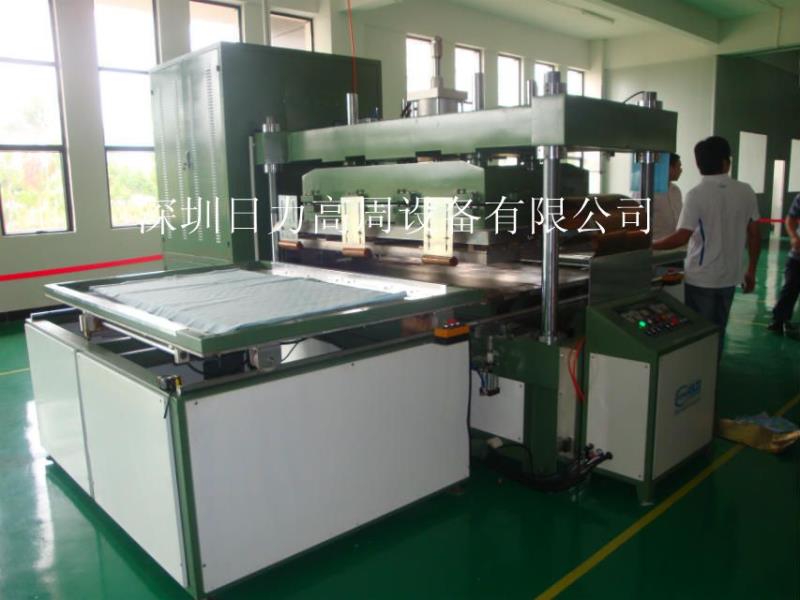

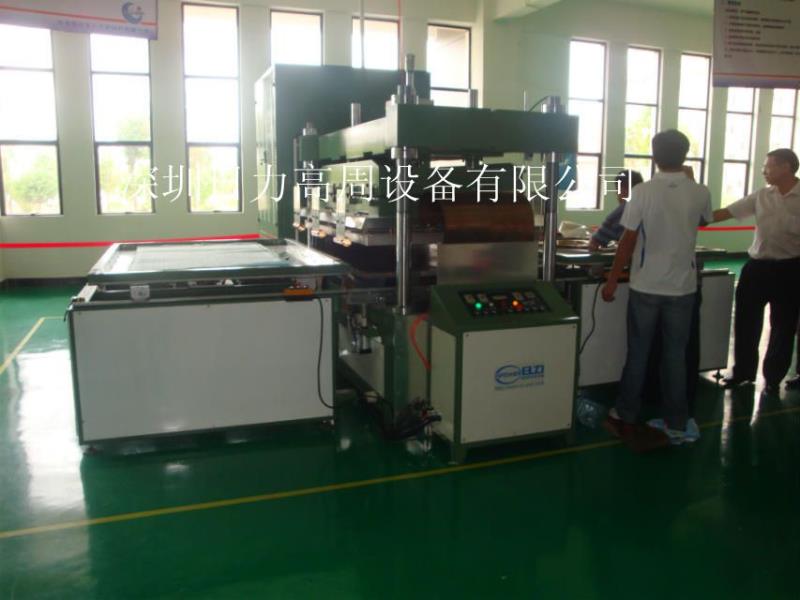

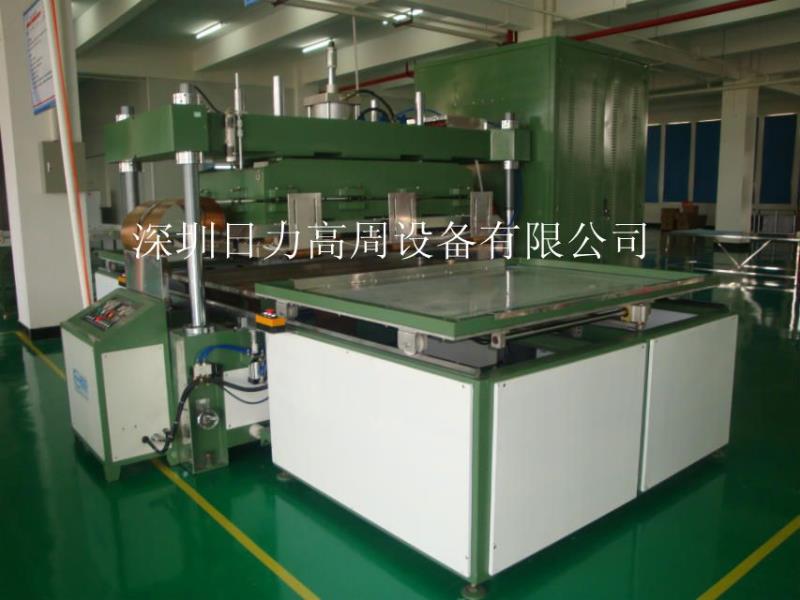

On the site:

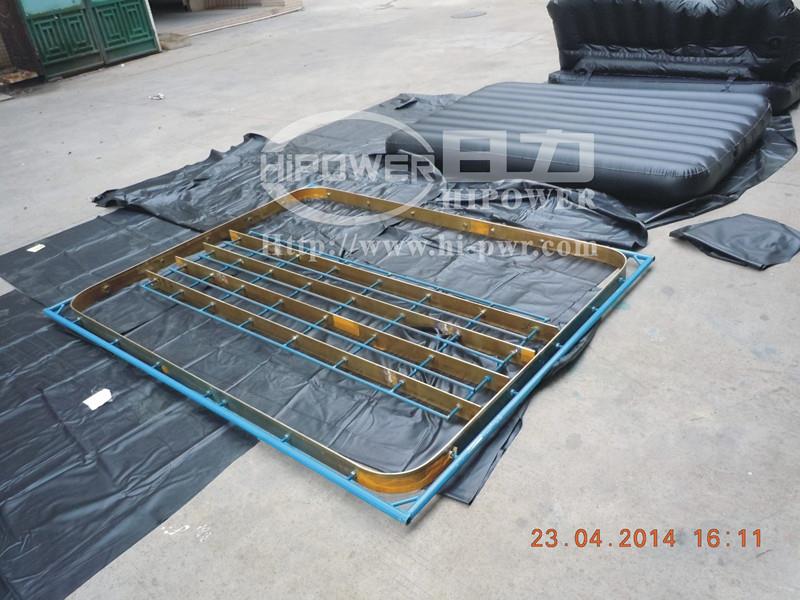

Sample view:

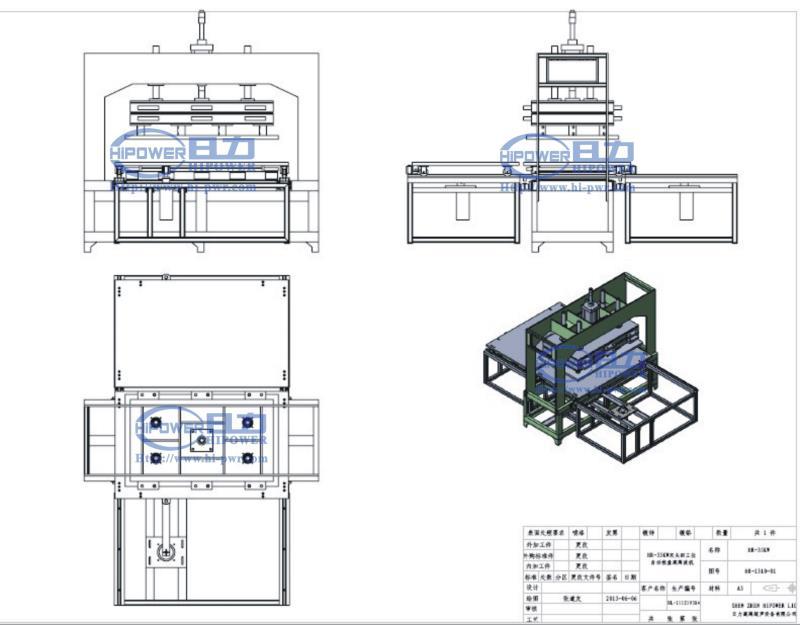

Drawing:
