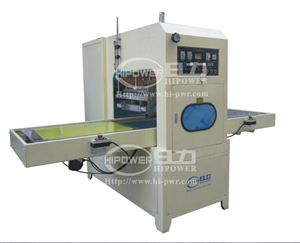

HR-25KW Shuttle-way High Frequency Welding Machine

Model：	HR-25KW
Scope Of Application：	Automatic high frequency insole forming machine is suitable for insole welding, edge cutting and PVC, EVA, PU, plastic boxes soft crease line Automatic high frequency insole forming machine equips with automatic feeding system with adjustable feeding spee
Features：	Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine.

HR-25KW Shuttle-way High Frequency Welding Machine

Character of machine:

1. Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine.

2. Double-direction automatic slipway,come-and-go or continuous delivering the mould,accurate-orientation, error + 20 um. 3. Adjustable cutting pressure 1-50 tons,stable and realible in output,firm in structure.

3. Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency.

High Frequency welding machine has been wildly used in the process of producing various products. such as :

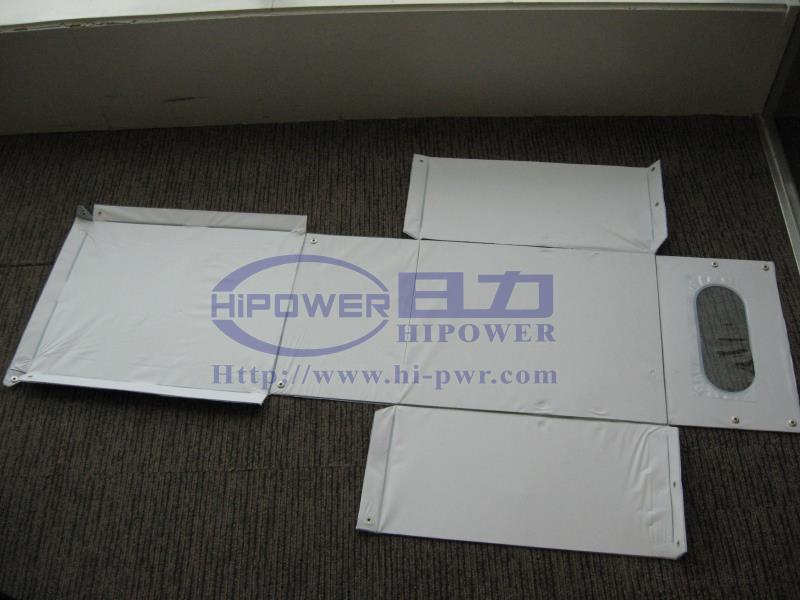

1. Toy stationery, such as :Gift bag, basketball embossing, album inner page, the inner page of business card,mousepad, glasses case,etc.

2. Leather suitcase ,such as Leather embossing,coining,heat-sealing,welding&cutting simultaneously,PVC Entrance Mats,carpet embossing,carpet ,shoepad ,car floor mat ,cushion,etc.

3. Automotive interior products, Such as: steering wheel cover,Back seat cushion,life jacket,drifting boat,curtain,shower curtain,inflatable pool & mattress & sofa,ect.

Technical parameter:

Model	HR-25KW
Power	25000W
Supply power	380V 50/60Hz
Frequency	13.56MHz
Input supply	35KVA
Rectifier	SILICON DIODE
Oscillation tube	8T25RA
Max pressure	1500KG
Gap of electrodes	150MM
Moving Distance of active horn	150MM
Size of upper electrode	800*1000MM
Size of buttom electrode	900*1100MM
Welding time	0~10 S Adjustable
