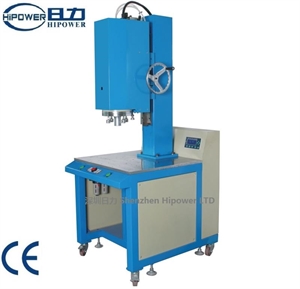

HC-3215 ultrasonic plastic welding machine

Model：	HC-3215
Scope Of Application：	Applied for ultrasonic welding of ABS,PE,PC,PS,PVC,PP,ABS and PC Complex, Acrylic and Relatives.
Features：	IC circuit precision control, automatic overload protection systemAdopting digital switch, 1/100 precision re-set controlAdjustable horizontal level, easy control welding hornHigh Q value transducer, optimized outputHave resonant frequency when th

HC-3215 ultrasonic plastic welding machine
Characters:

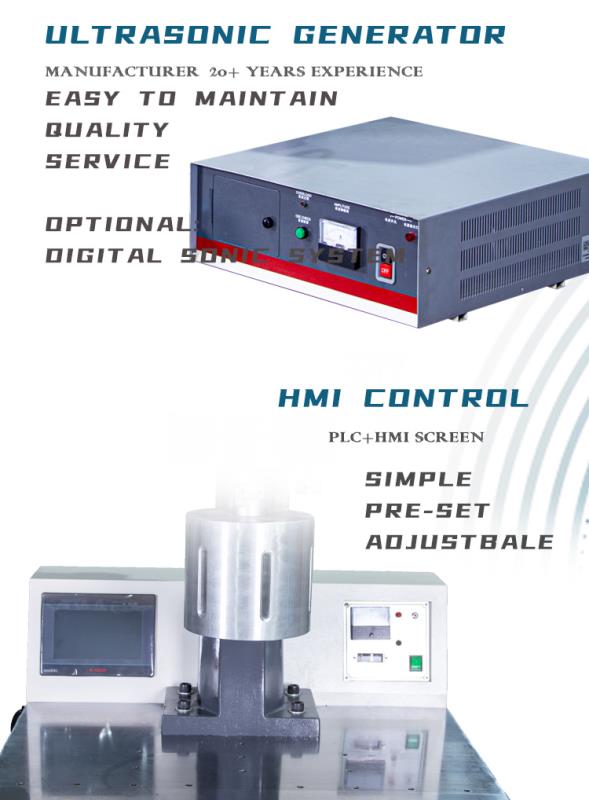

IC circuit precision control, automatic overload protection system
Adopting digital switch, 1/100 precision re-set control

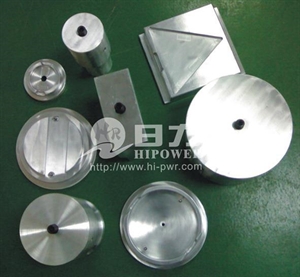

Adjustable horizontal level, easy control welding horn

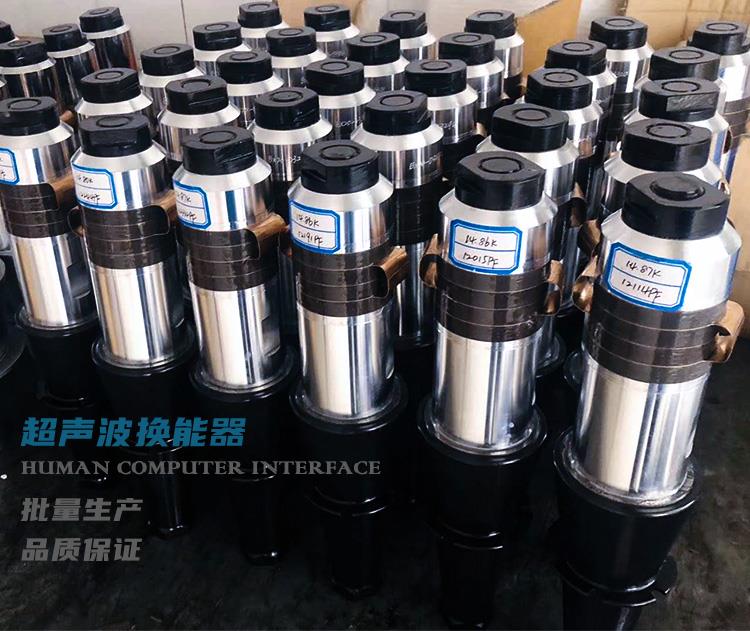

High Q value transducer, optimized output
Have resonant frequency when the load, unload, without adjustment for the frequency of welding horn
Square column and column airframe structure is optional, the straight line guide bearing, the precise matching device
Using the turbine rotation to adjust the machine movement, which is better than normal
Adopting Japan HuangPai brand alloy steel to keep frequency strong and stable

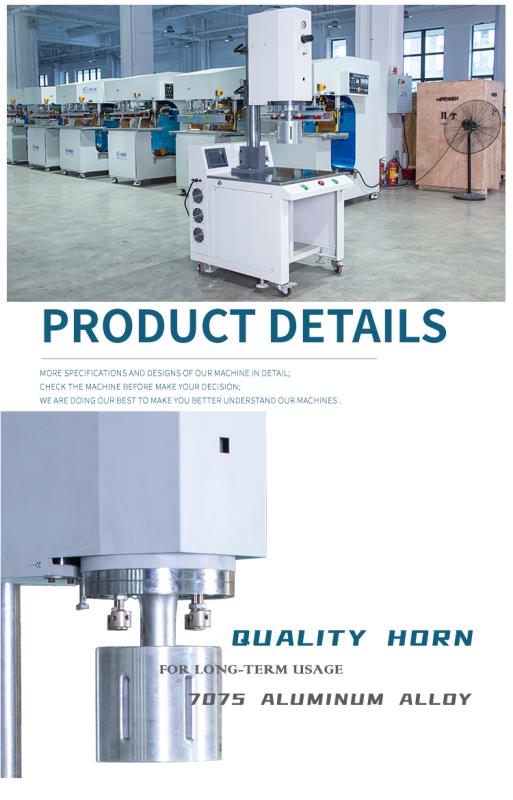

Celebrate itself durability for adopting USA aviation standard 7075¡¢6064 Aluminum alloy
The electronic components are imported from Italy, Japan, American, South Korean, Taiwan directly, guarantee the quality of our machine.
All in one high capacity machine, applied for high precision of welding workpiece.
Automatic protective device, which is optional.
High-power machine, which is applied for Large workpiece.
The manufacturer has right to modify design and parameter without prior notice

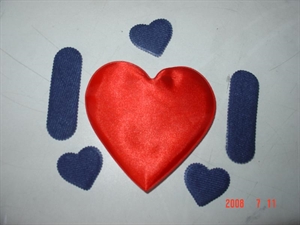

Applied range of Ultrasonic welding machine:
Widely used in aviation, boats, cars, electrical appliance, package, toys, electric, medical, auto parts, fishing and textiles etc.
For example: disposable transfusion filter, blood plasma whizzer, valve bag, plastic wine bottle cap, dish washer waterwheel, plastic toys,

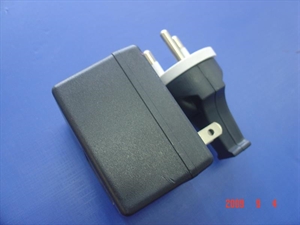

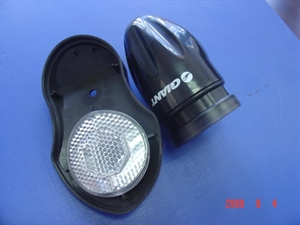

car lamp, plastic fake bait, charger shell and mobile hanging drop welding, disposable lighter shell welding etc. Besides: car door plaque welding,
car motormeter welding, car lamp car mirror welding, sun visor welding, car inside accessories welding.

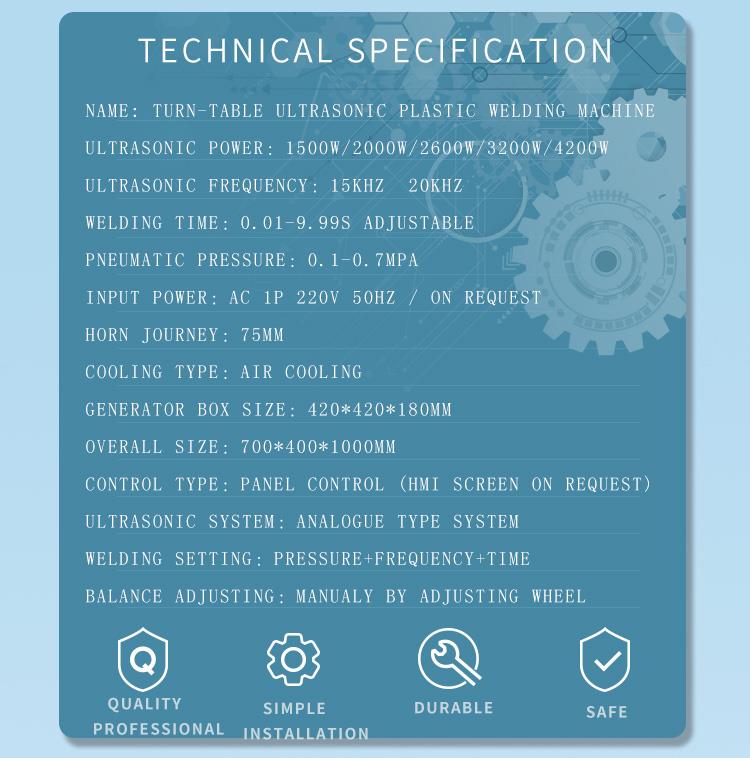

Hipower ultrasonic machine technique parameters:

Model	HC-2615 HC-3215 HC-4215
Output power	2600w 3200W 4200W
Frenquency	20KHZ
Input voltage	220V
The Max Input Power	1.2KW 1.9KW 2.3KW
The moving distance of active horn	70mm
Oscillation system	Auto-stimuilating
Output time	0.1-99S
Pressure	Pressure bound 2-7bar
Welding area	¡Ó200mm ¡Ó220mm ¡Ó250mm
Compressor	1HP-2HP
NET	110kg 110kg 115kg
