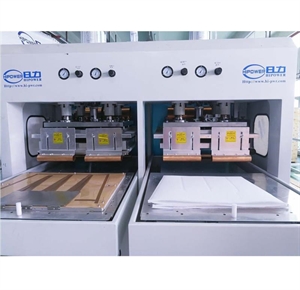

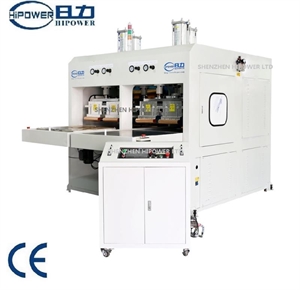

Vertical Sliding Table High Frequency Welding and Die Cutting Machine
| Model： | HR-15KW-30T |
| Scope Of Application： | Applied for paper+blister clamshell packaging, PVC/PU Leather embossing, plastic packing box forming and die cutting, and other welding&cutting requested industry. |
| Features： | Vertical Sliding Table machine; Welding and Die Cutting; |
Vertical Sliding Table High Frequency Welding and Die Cutting Machine
Application:

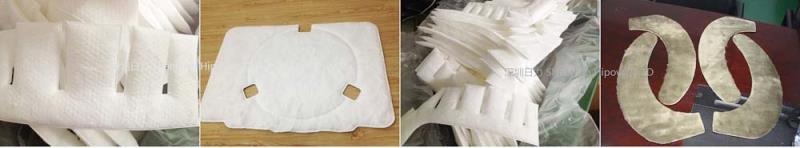

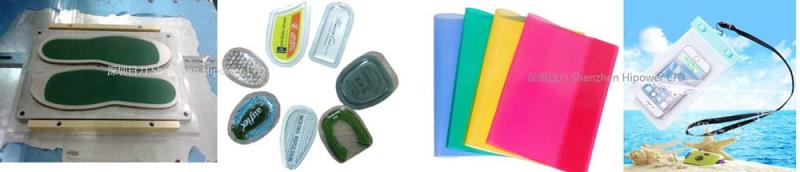

Applied for paper+blister clamshell packaging, PVC/PU Leather embossing, plastic packing box forming and die cutting, and other welding&cutting requested industry.
Technical Specification:
Model： HR-15KW -30T
H.F power： 15000W
Power Supply： 380V 50/60HZ
Frequency： 27.12MHZ
Input power： 25KVA
Rectifier： Silicon diode
Vibrational tube： 8T85RB
Max pressure： 30 Tons
Gap of electrode： 200mm
Stroke： 175mm
Size of up electrode： 600x800mm
Size of down electrode： 600x800mm
welding time： 0---10s
