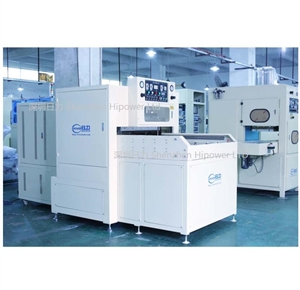

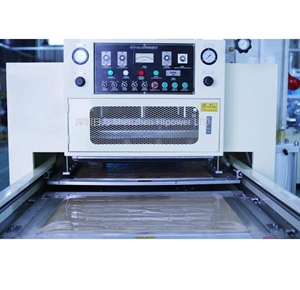

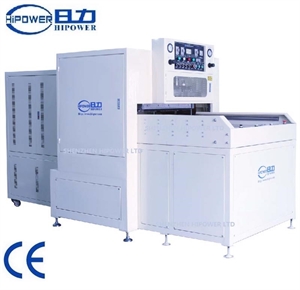

Plastic Box Forming and Die Cutting Machine,Vertical Cycle Table

Model：	HR-15KW-30T
Scope Of Application：	Applied for plastic packing box forming and die cutting, printing box making, PP box making, PVC , PET box making and other welding&cutting requested industry.
Features：	single work station, vertical cycle tables, die cutting 30 Tons,can make PVC, PP, PET, A-PET,PET-G,GAG

Vertical Cycle Table Plastic Box Forming and Die Cutting Machine

Application:

Applied for paper+blister clamshell packaging, PVC/PU Leather embossing, plastic packing box forming and die cutting, and other welding&cutting requested industry.

single work station, vertical cycle tables, die cutting 30 Tons,

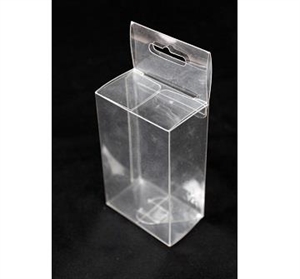

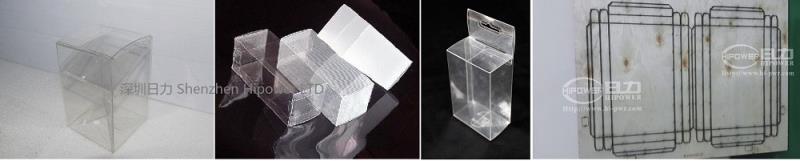

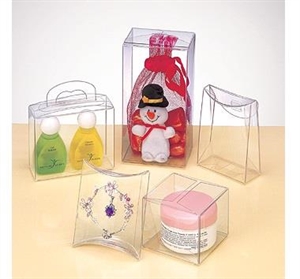

can make PVC, PP, PET, A-PET,PET-G,GAG BOX

Technical Specification:

Model： HR-15KW -30T
H.F power： 15000W
Power Supply： 380V 50/60HZ
Frequency： 27.12MHZ
Input power： 25KVA
Rectifier： Silicon diode
Vibrational tube： 8T85RB
Max pressure： 30 Tons
Gap of electrode： 200mm
Stroke： 175mm
Size of up electrode： 600x800mm
Size of down electrode： 600x800mm
welding time： 0---10s
