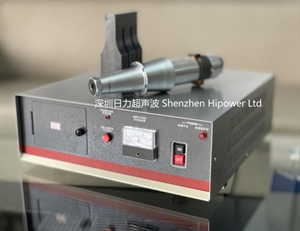

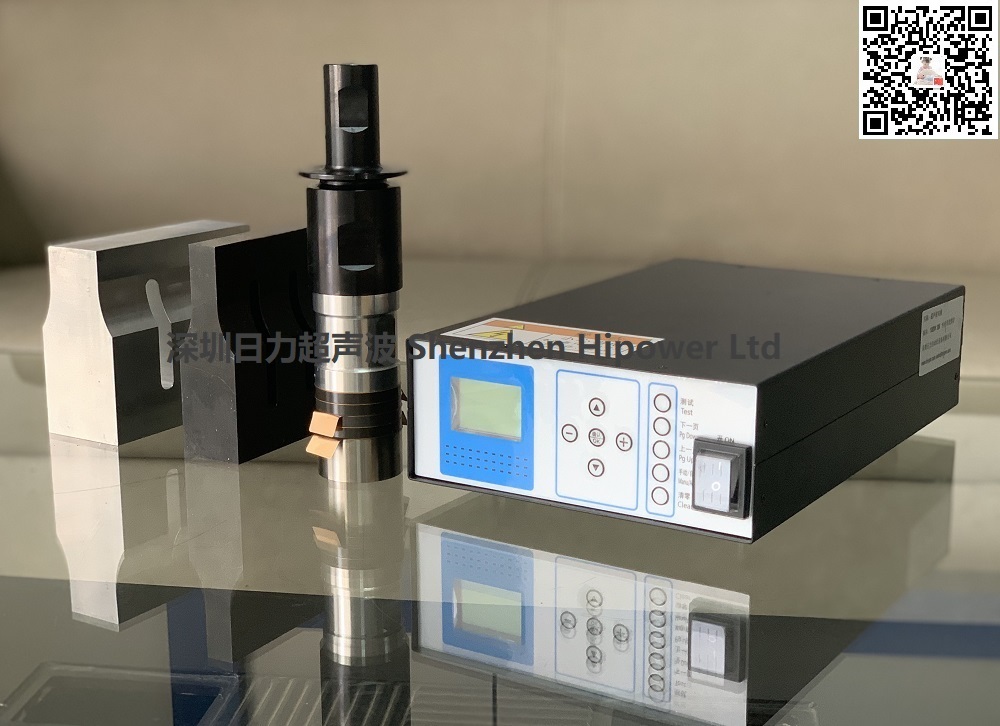

20K 1500WUltrasonic system for N95 edge banding machine

Model：	20K 1500W
Scope Of Application：	Ultrasonic system for N95 edge banding machine 20K 1500W
Features：	Ultrasonic system for N95 edge banding machine20K 1500W

Ultrasonic system for N95 mask machine 20K 1500W

1、 Application:

Ultrasonic system of N95 mask main body machine

2、Features:

1）. Pneumatic components: AirTAC (cylinder, solenoid valve, pressure regulator)

2). Digital circuit: High-performance anti-interference processor imported from the United States,

digital intelligent chip control, German IGRT power module, phase-shifted full-bridge topology, more powerful output, more stable output, and no machine burning

3). Upper die welding head: hardened heat-treated steel die

4). Ultrasonic generator electric box: The most advanced American digital circuit, microcomputer screen,

user-friendly operation, easy to understand and adjust, precise time control, can be increased and decreased by 1ms, no time difference;

5). Energy welding mode, using the energy output required for a single welding as the welding standard, packaging product welding quality, effectively avoid false welding, reduce product defect rate

6). Ultrasonic transducer: imported piezoelectric ceramics, alloy horn

3、Product parameters

Model:	HC-1520
Control interface：	Text screen
Output Power：	1500W
Amplitude adjustment：	± 1%
Frequency：	20KHz
Frequency Range：	0.25Khz
Welding time：	0.01-9.99S
Voltage ：	Single 220V/50Hz
Air pressure：	0.1-0.7Mpa
Welding area：	Diameter 150mm
Welding head stroke	75mm
Welding head cooling	Air-cooled
Ultrasonic generator：	Automatic frequency tracking (automatic protection device)
Welding parameter adjustment：	Joule energy mode + amplitude adjustment + time control
Welding depth adjustment：	Mechanical limit + fine adjustment of four corner balance screws
Welding level adjustment：	Flange + fine adjustment of four corner balance screws
Control：	Touch screen man-machine interface
Stroke adjustment：	Optional cylindrical / square slider + hard rail
Ultrasonic generator size：	L380 x W280 x H120 mm
Net weight：	82KGS
Standard：	CE
