Ultrasonic system 15K 3200W for N95 mask edge banding

Model: 15K 3200W
Scope Of Application: Ultrasonic system 15K 3200W for N95 mask edge banding
Features: Ultrasonic system 15K 3200W for N95 mask edge banding

Ultrasonic system for N95 mask machine 15K 3200W

1、 Application:

Ultrasonic system of N95 mask main body machine

2、Features:

1). Pneumatic components: AirTAC (cylinder, solenoid valve, pressure regulator)

2). Digital circuit: High-performance anti-interference processor imported from the United States,

digital intelligent chip control, German IGRT power module, phase-shifted full-bridge topology, more powerful output, more stable output, and no machine burning

3). Upper die welding head: hardened heat-treated steel die

4). Ultrasonic generator electric box: The most advanced American digital circuit, microcomputer screen,

user-friendly operation, easy to understand and adjust, precise time control, can be increased and decreased by 1ms, no time difference;

5). Energy welding mode, using the energy output required for a single welding as the welding standard, packaging product welding quality, effectively avoid false welding, reduce product defect rate

6). Ultrasonic transducer: imported piezoelectric ceramics, alloy horn

3、Product parameters

Model:

HC-3215

Control interface:

Text screen

Output Power:

3200W

Amplitude adjustment:

± 1%

Frequency:

15KHz

Frequency Range:

0.25Khz

Welding time:

0.01-9.99S

Voltage :

Single 220V/50Hz

Air pressure:

 0.1-0.7Mpa

Welding area:

Diameter 150mm

Welding head stroke

75mm

Welding head cooling

Air-cooled

Ultrasonic generator:

Automatic frequency tracking (automatic protection device)

Welding parameter adjustment:

Joule energy mode + amplitude adjustment + time control

Welding depth adjustment:

Mechanical limit + fine adjustment of four corner balance screws

Welding level adjustment:

Flange + fine adjustment of four corner balance screws

Control:

Touch screen man-machine interface

Stroke adjustment:

Optional cylindrical / square slider + hard rail

Ultrasonic generator size:

L380 x W280 x H120 mm

Net weight:

82KGS

Standard:

CE

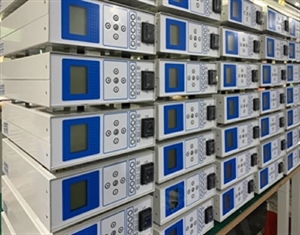

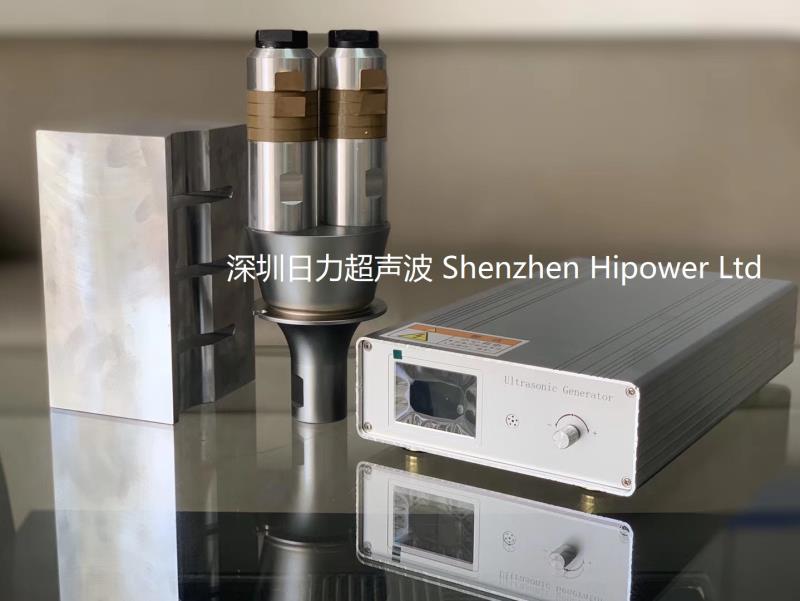

4.product pictures
